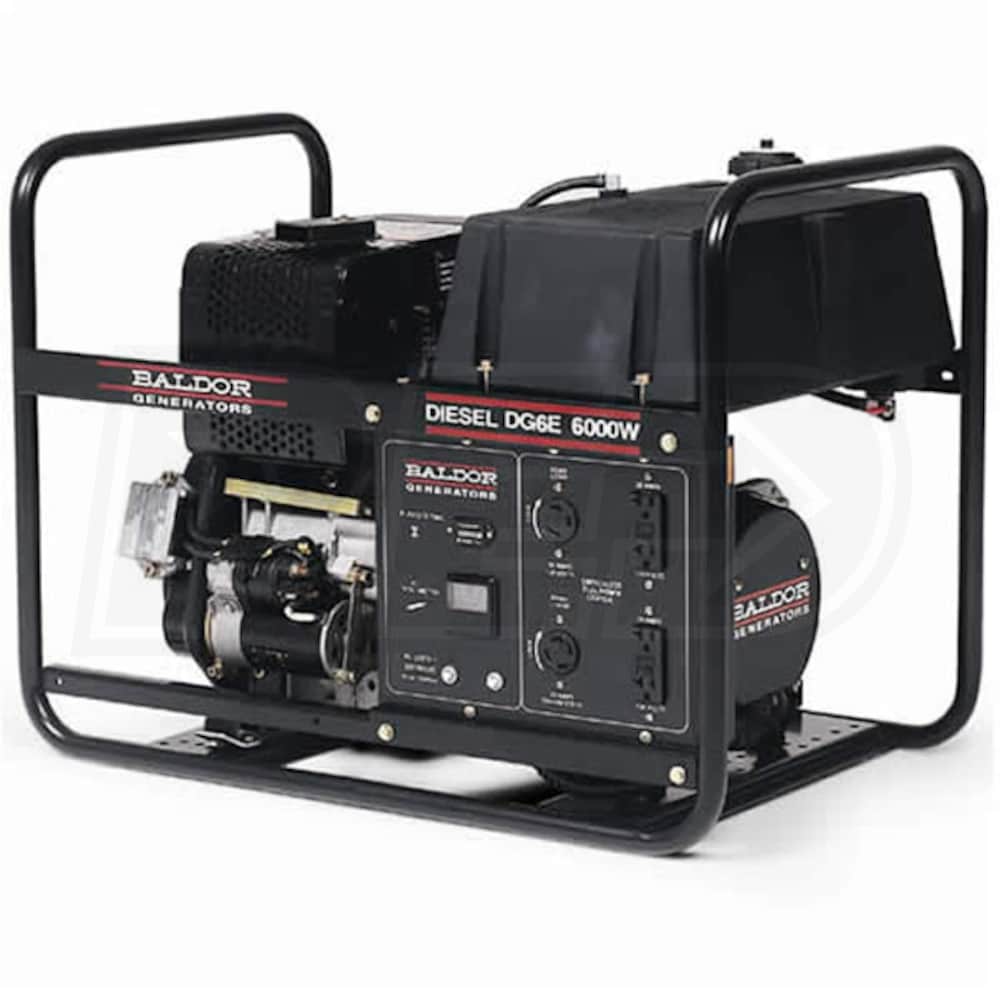

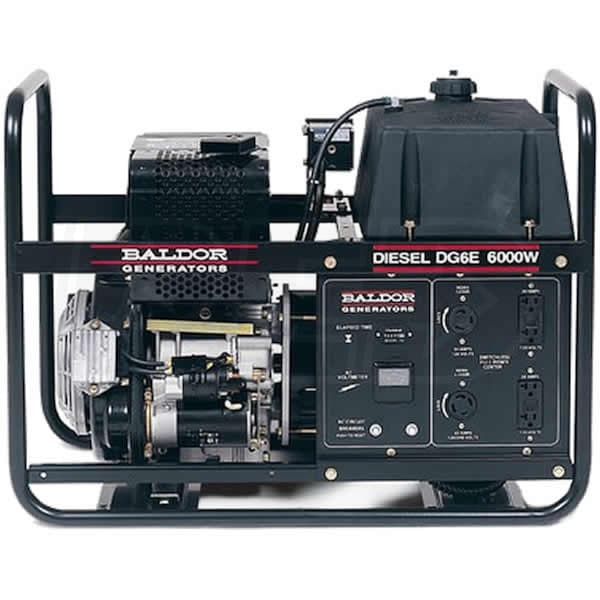

Baldor DG6E - 5500 Watt Industrial Electric Start Diesel Generator
Model: DG6E
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Hatz
Grade
Professional
Style
Portable
Run Watts
5,500
Surge Watts
6,000 Starting Watts
Fuel
Diesel
Engine
Hatz
Features
Features
- 9.9-HP Hatz Engine
- Durable, quiet and fuel efficient engine
- Electric Start (Battery Not Included)
- Start your generator with the touch of a button
- Recommended battery: Interstate SP-40, 340 cold cranking amps
- Spark Arrestor Muffler
- Reduces noise to 76 dB(A) at 7 meters
- Extended Run
- 6 hours of run time on a full tank @ 50% load
- Tier III Engine and CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Diesel
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
4.6 Gallons
Run Time @ 50% Load
6 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
9.9 HP
CC
461.9 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
246 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
32 Inches
Product Width
20.5 Inches
Product Height
23.75 Inches
UPC
781568288917
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Hatz
Grade
Professional
Style
Portable
Run Watts
5,500
Surge Watts
6,000 Starting Watts
Fuel
Diesel
Engine
Hatz
Features
Features
- 9.9-HP Hatz Engine
- Durable, quiet and fuel efficient engine
- Electric Start (Battery Not Included)
- Start your generator with the touch of a button
- Recommended battery: Interstate SP-40, 340 cold cranking amps
- Spark Arrestor Muffler
- Reduces noise to 76 dB(A) at 7 meters
- Extended Run
- 6 hours of run time on a full tank @ 50% load
- Tier III Engine and CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Diesel
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
4.6 Gallons
Run Time @ 50% Load
6 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
9.9 HP
CC
461.9 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
246 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
32 Inches
Product Width
20.5 Inches
Product Height
23.75 Inches
UPC
781568288917
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Diesel
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
4.6 Gallons
Run Time @ 50% Load
6 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
9.9 HP
CC
461.9 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
246 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
32 Inches
Product Width
20.5 Inches
Product Height
23.75 Inches
UPC
781568288917
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Is there a wheel kit available for the Baldor DG6E?
Michael Schuyler
from Washington
January 14, 2013
Answer
Sorry, we do not offer a Baldor or Universal wheel kit for the Baldor DG6E generator.
