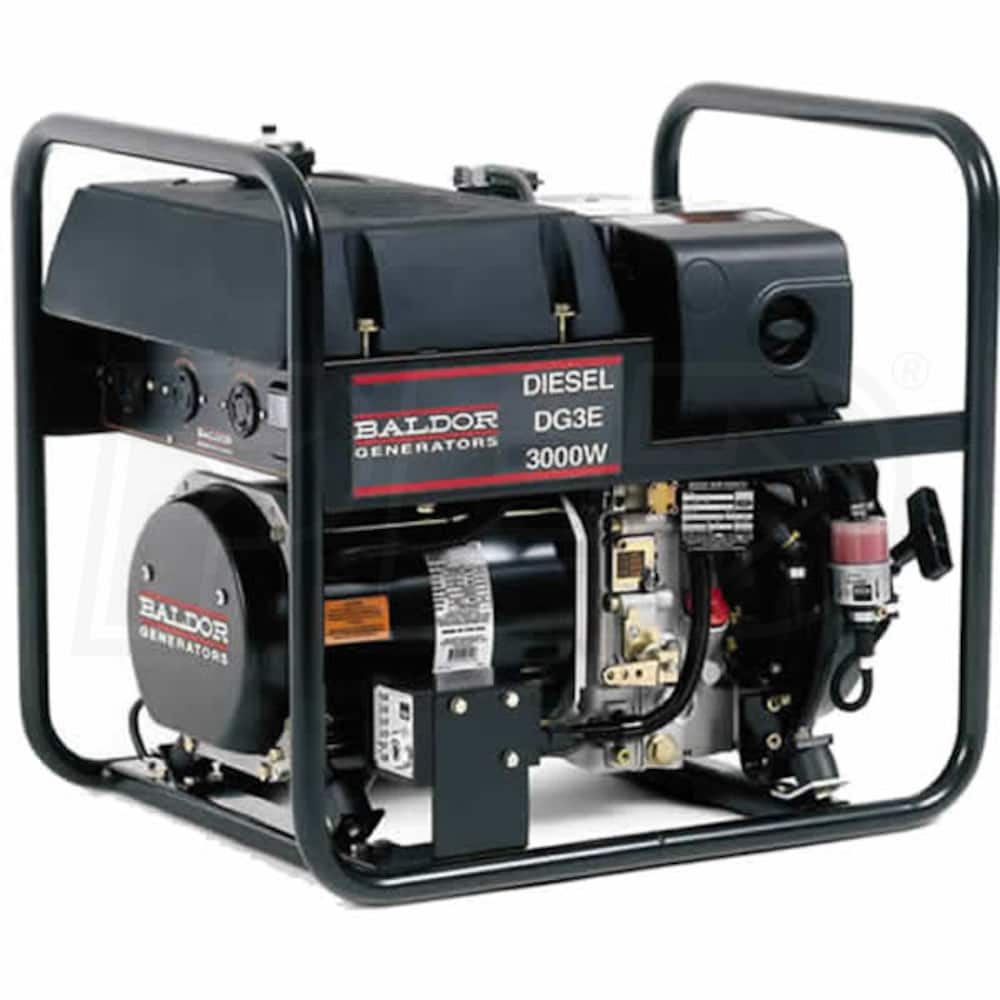

Baldor DG3E - 3000 Watt Industrial Electric Start Diesel Generator

Baldor DG3E - 3000 Watt Industrial Electric Start Diesel Generator
Model: DG3E
(Based on expert analysis, manufacturer ratings and customer reviews)
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
Number of Reviews (2)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
3,000
Rated Watts
Surge Watts
3,300
Starting Watts
Fuel
Engine
Hatz
Grade
Professional
Style
Portable
Run Watts
3,000
Surge Watts
3,300 Starting Watts
Fuel
Diesel
Engine
Hatz
Features
Features
  • 5.5-HP Hatz Engine
  • Durable, quiet and fuel efficient engine
  • Electric Start (Battery Not Included)
  • Start your generator with the touch of a button
  • Recommended battery: Interstate SP-40, 340 cold cranking amps
  • Spark Arrestor Muffler
  • Reduces noise to 74 dB(A) at 7 meters
  • Extended Run
  • 9 hours of run time on a full tank @ 50% load
  • Tier III Engine and CARB Compliant
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA L5-30R
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
5.5 HP
CC
346 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
3300 Watts
Rated Watts
3000 Watts
Fuel Type
Diesel
Rated Amps
13 Amps
Portability Kit
Sold Separately
Tank Size
2.75 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-20R
1
NEMA L5-30R
1
Overview
Made in USA
Yes
Weight
172 Pounds
Product Style
Portable Generator
Product Length
24.5 Inches
Product Width
18.5 Inches
Product Height
21.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
78156834759
Grade
Style
Run Watts
3,000
Rated Watts
Surge Watts
3,300
Starting Watts
Fuel
Engine
Hatz
Grade
Professional
Style
Portable
Run Watts
3,000
Surge Watts
3,300 Starting Watts
Fuel
Diesel
Engine
Hatz
Features
Features
  • 5.5-HP Hatz Engine
  • Durable, quiet and fuel efficient engine
  • Electric Start (Battery Not Included)
  • Start your generator with the touch of a button
  • Recommended battery: Interstate SP-40, 340 cold cranking amps
  • Spark Arrestor Muffler
  • Reduces noise to 74 dB(A) at 7 meters
  • Extended Run
  • 9 hours of run time on a full tank @ 50% load
  • Tier III Engine and CARB Compliant
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA L5-30R
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
5.5 HP
CC
346 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
3300 Watts
Rated Watts
3000 Watts
Fuel Type
Diesel
Rated Amps
13 Amps
Portability Kit
Sold Separately
Tank Size
2.75 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-20R
1
NEMA L5-30R
1
Overview
Made in USA
Yes
Weight
172 Pounds
Product Style
Portable Generator
Product Length
24.5 Inches
Product Width
18.5 Inches
Product Height
21.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
78156834759
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA L5-30R
Engine
Engine Brand
Hatz
Starting System
12-Volt Key Start w/ Recoil
HP
5.5 HP
CC
346 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
3300 Watts
Rated Watts
3000 Watts
Fuel Type
Diesel
Rated Amps
13 Amps
Portability Kit
Sold Separately
Tank Size
2.75 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-20R
1
NEMA L5-30R
1
Overview
Made in USA
Yes
Weight
172 Pounds
Product Style
Portable Generator
Product Length
24.5 Inches
Product Width
18.5 Inches
Product Height
21.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
78156834759
Reviews
(2)
+
Baldor DG3E Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Portable Generator Expert
icon-social-fb1
+
Is this generator California emissons compliant? Is there another diesel generator with about this capacity that's lighter (man lift issue)?
Steven Jones
from California
May 30, 2012
Answer
The HATZ diesel engine Baldor uses in the DG3E and DG6E are EPA 2, CARB 2, and ECE-R24 compliant.
