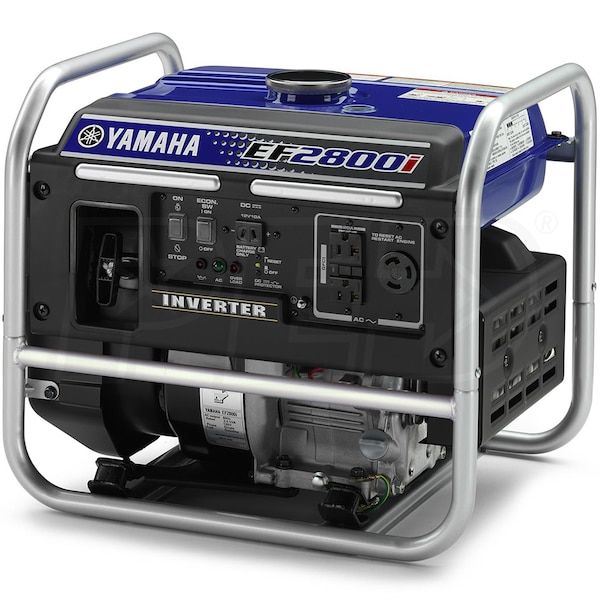

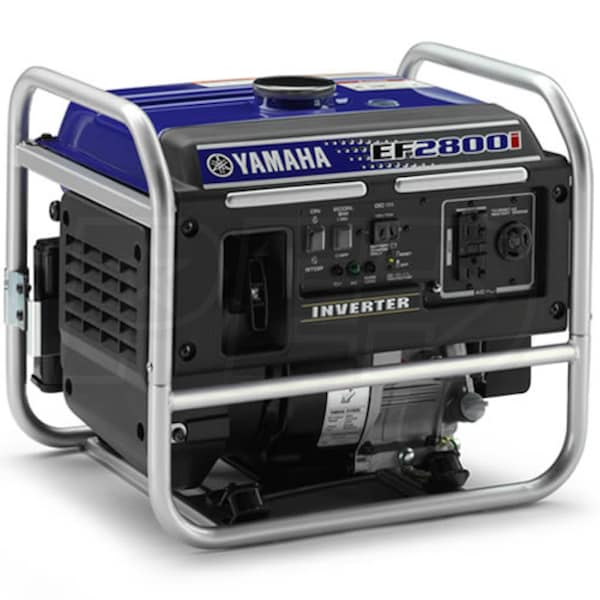

Yamaha EF2800iM - 2500 Watt Open-Frame Portable Inverter Generator

Yamaha EF2800iM - 2500 Watt Open-Frame Portable Inverter Generator
Our Price
Compare Prices
Shipping Info
Model: EF2800IM
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (9)
Write A Review
$1,529.00
Only 1 In-Stock
Ships Tuesday, Oct 23rd
Free Shipping
Extended Warranty
Excludes CA

In-Stock Free Shipping$1,529.00Buy Now
$1,529.00Visit Site
Only 1 In-Stock
Ships Tuesday, Oct 23rd
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 9
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
2,500
Rated Watts
Surge Watts
2,800
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
2,500
Surge Watts
2,800 Starting Watts
Fuel
Gasoline
Engine
Yamaha


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Inverter System w/ Pulse Width Modulation (PWM)
  • Produces higher-quality and cleaner electricity
  • A pure sine wave as clean or cleaner than commercial power
  • 2,800 Max Rated Watts
  • Rated at 2,500 watts for continuous duty
  • “Economy Control” Electrical Governor
  • Adjusts engine speed to electrical need
  • Improves fuel economy and reduces noise
  • Oil Watch Warning System
  • Automatically shuts engine off before oil level is low
  • Prevents engine damage & costly repairs
  • Cast Iron Cylinder Lining
  • Extends the life of the engine
  • USFS-Approved Spark Arrestor Muffler
  • Quiet operation & keeps sparks from exiting exhaust system

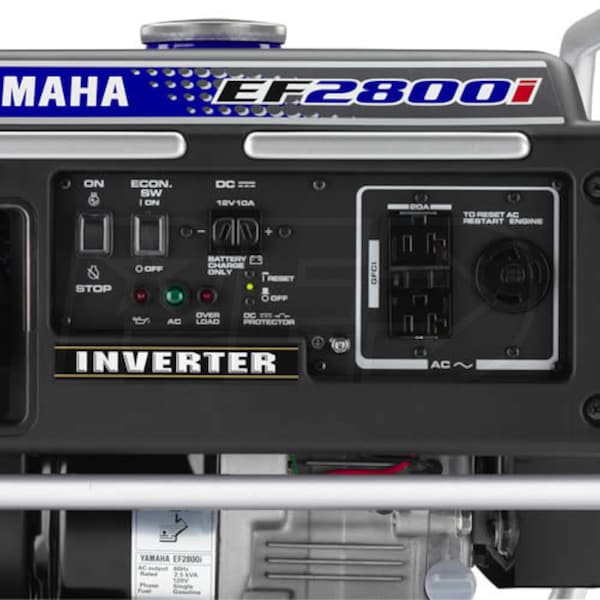

  • AC Non-Fuse Thermal Breaker & Full-Panel GFCI Protection
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • 12-Volt (8.3A) DC Output (Includes Cables)
  • Recharge 12-volt batteries for RV, auto, marine, aircraft, etc.
Specifications
Plugs
8.3-Amp DC
NEMA 5-20R (GFCI)
NEMA L5-30R
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Surge Watts
2800 Watts
Rated Watts
2500 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Tank Size
2.6 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60-67 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Battery
Not Applicable
Grade Type
Recreational
Plugs
8.3-Amp DC
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
Overview
Made in USA
No
Weight
68 Pounds
Product Style
Portable Generator
Product Length
19.2 Inches
Product Width
15.6 Inches
Product Height
16.7 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Grade
Style
Run Watts
2,500
Rated Watts
Surge Watts
2,800
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
2,500
Surge Watts
2,800 Starting Watts
Fuel
Gasoline
Engine
Yamaha


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Inverter System w/ Pulse Width Modulation (PWM)
  • Produces higher-quality and cleaner electricity
  • A pure sine wave as clean or cleaner than commercial power
  • 2,800 Max Rated Watts
  • Rated at 2,500 watts for continuous duty
  • “Economy Control” Electrical Governor
  • Adjusts engine speed to electrical need
  • Improves fuel economy and reduces noise
  • Oil Watch Warning System
  • Automatically shuts engine off before oil level is low
  • Prevents engine damage & costly repairs
  • Cast Iron Cylinder Lining
  • Extends the life of the engine
  • USFS-Approved Spark Arrestor Muffler
  • Quiet operation & keeps sparks from exiting exhaust system
  • AC Non-Fuse Thermal Breaker & Full-Panel GFCI Protection
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • 12-Volt (8.3A) DC Output (Includes Cables)
  • Recharge 12-volt batteries for RV, auto, marine, aircraft, etc.
Specifications
Plugs
8.3-Amp DC
NEMA 5-20R (GFCI)
NEMA L5-30R
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Surge Watts
2800 Watts
Rated Watts
2500 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Tank Size
2.6 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60-67 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Battery
Not Applicable
Grade Type
Recreational
Plugs
8.3-Amp DC
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
Overview
Made in USA
No
Weight
68 Pounds
Product Style
Portable Generator
Product Length
19.2 Inches
Product Width
15.6 Inches
Product Height
16.7 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Plugs
8.3-Amp DC
NEMA 5-20R (GFCI)
NEMA L5-30R
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Surge Watts
2800 Watts
Rated Watts
2500 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Tank Size
2.6 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60-67 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Battery
Not Applicable
Grade Type
Recreational
Plugs
8.3-Amp DC
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
Overview
Made in USA
No
Weight
68 Pounds
Product Style
Portable Generator
Product Length
19.2 Inches
Product Width
15.6 Inches
Product Height
16.7 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Reviews
(9)
+
Yamaha EF2800IM Reviews & Ratings
Product Q&A
(5)
+
Search Product Q&A's Answered by Jim, the Portable Generator Expert
icon-social-fb1
+
Does this Yamaha generator use mixed gasoline?
Pete
from New York
February 08, 2017
Answer
Yamaha recommends using 86 Octane fuel or higher. This unit does not require any mixing of gasoline or oil. Owner's Manual.
+
Can this be converted for propane use?
Peter G.
from California
December 15, 2016
Answer
Yamaha does not offer a fuel conversion for any of their generators and adding an aftermarket one will void the warranty.
+
I have a customer running propane on a Yamaha genset. While burning propane the engine burns excessive oil, not a problem on gasoline. Any ideas?
Shane Bland
from Florida
June 24, 2014
Answer
The Yamaha portable generators are engineered and warranted to operate on gasoline only. The reason your customer is burning through oil is due to the excessive temperatures of the unit.

Gasoline burns at 485 degrees F whereas propane burns at 1008 degrees F which will cause excessive heat within the engine in turn burning off the engine oil.

+
Can a GFI outlet from a generator be connected to a transfer switch?
Vito L.
from New York
January 24, 2014
Answer
Thanks for your inquiry.

You will need to go with a GFI type transfer switch if you use the GFI protected outlet on the generator. This will only apply to the outlet listed below since this is the only GFI protected outlet on this particular generator. Keep in mind that this outlet is not usually used to hook up to a transfer switch.



In order to get the full power from this generator you will want to use the 30-amp 3-prong outlet which is NOT GFI protected and can be used with a standard 120 volt only transfer switch.



When using the outlet that is shown above, we recommend the following items:

Reliance Controls 30114A

APC 32316-UTS6H Indoor Transfer Switch

Reliance Controls Inlet Box (PB31)

Reliance Controls Power Cord (PC3110)
+
My EF2800i won't start. The plug boot and oil were replaced. I checked the fuel, cleaned the carburetor and air filter and it still does not start. Any suggestions?
Jamie Doherty
from
May 11, 2011
Answer
Since you have performed all the basic customer checks the best thing to do would be to take the unit to a certified Yamaha service center. You can find one from the link below.

Service Center Locator
