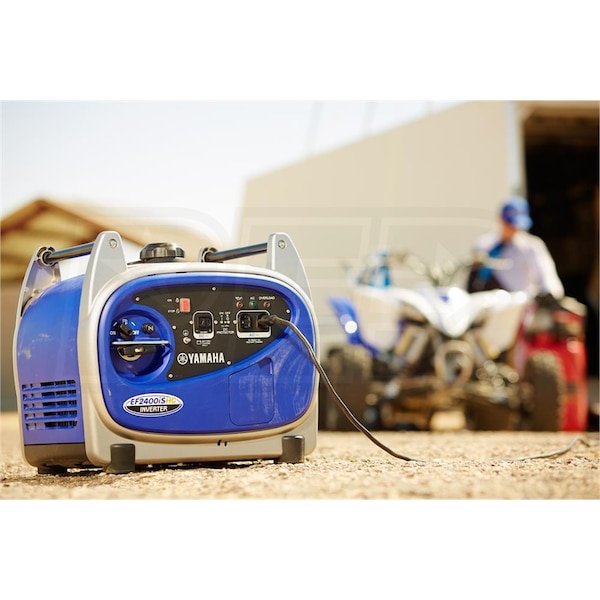

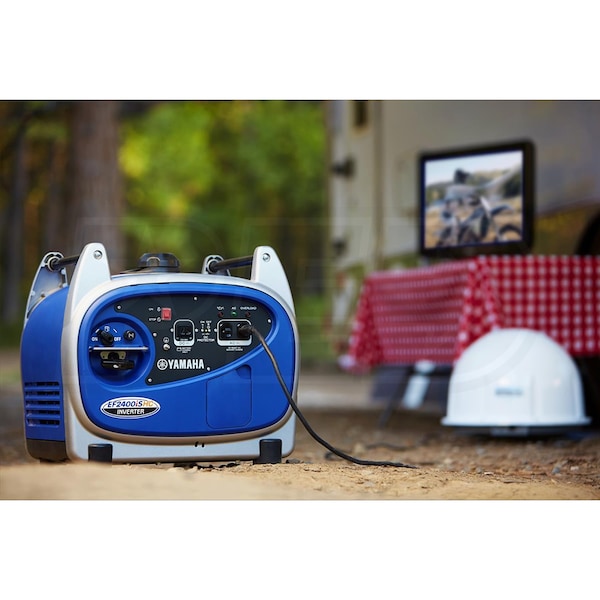

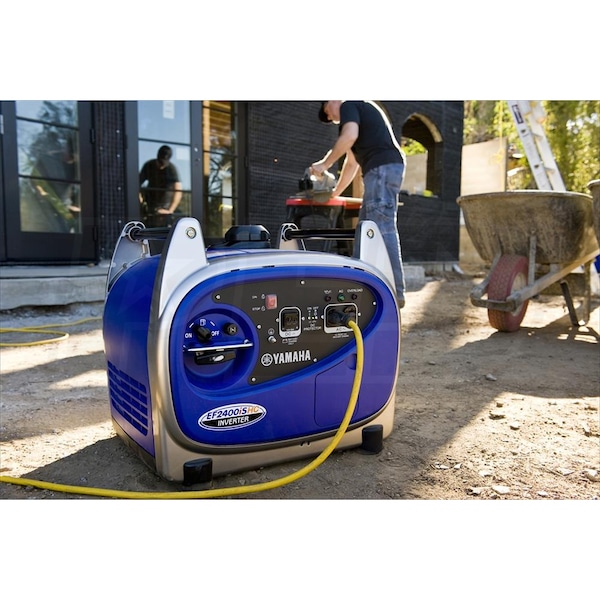

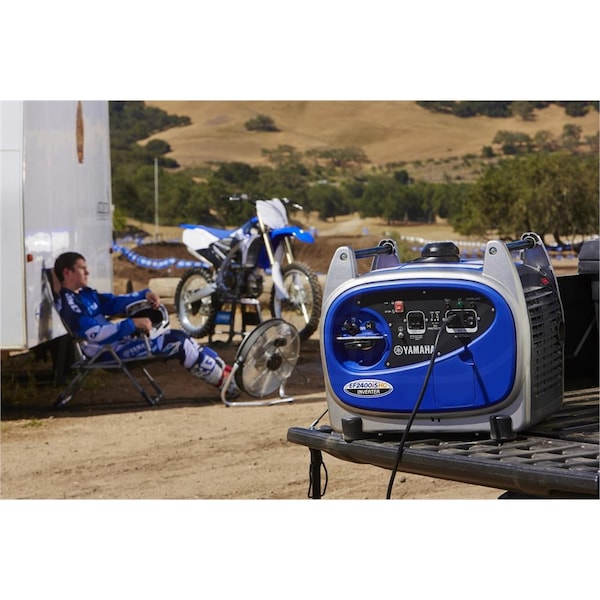

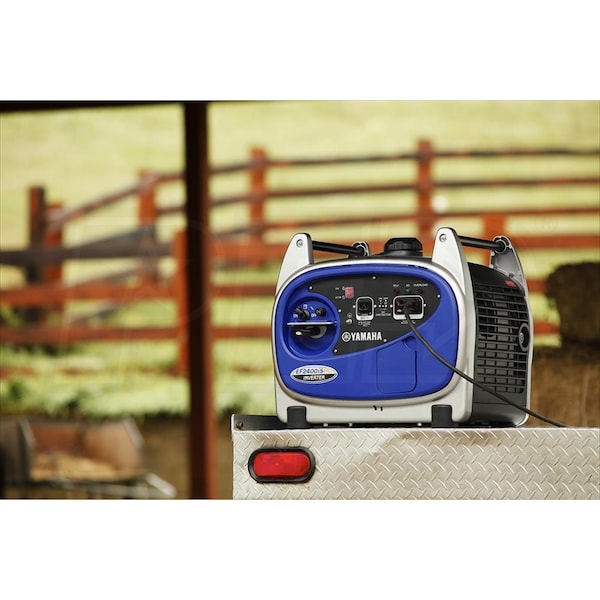

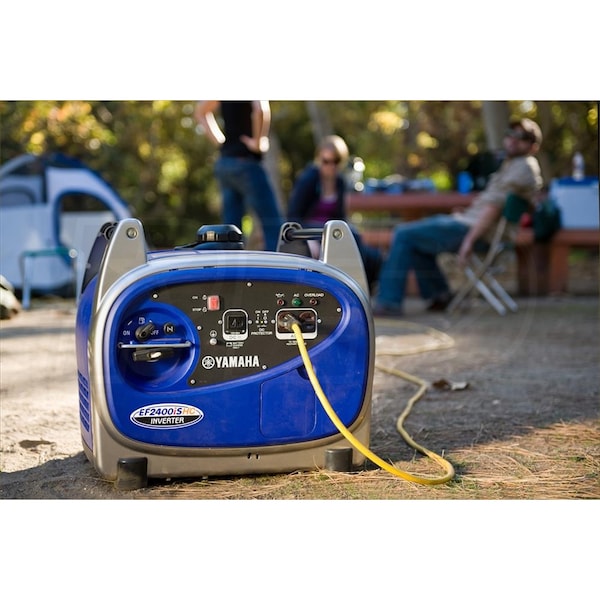

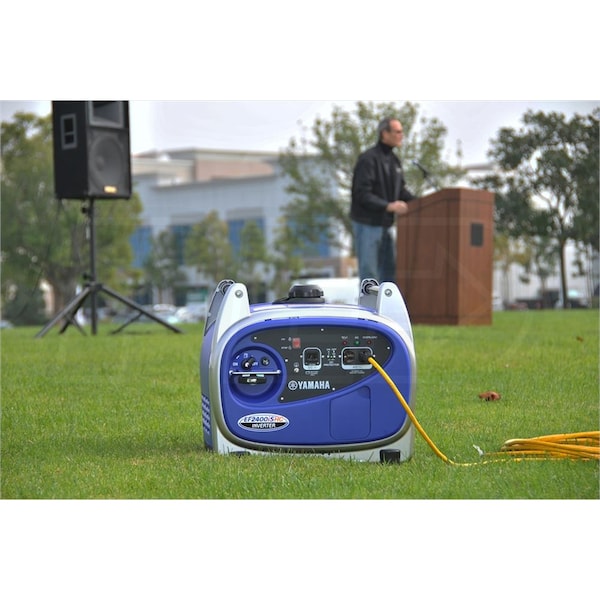

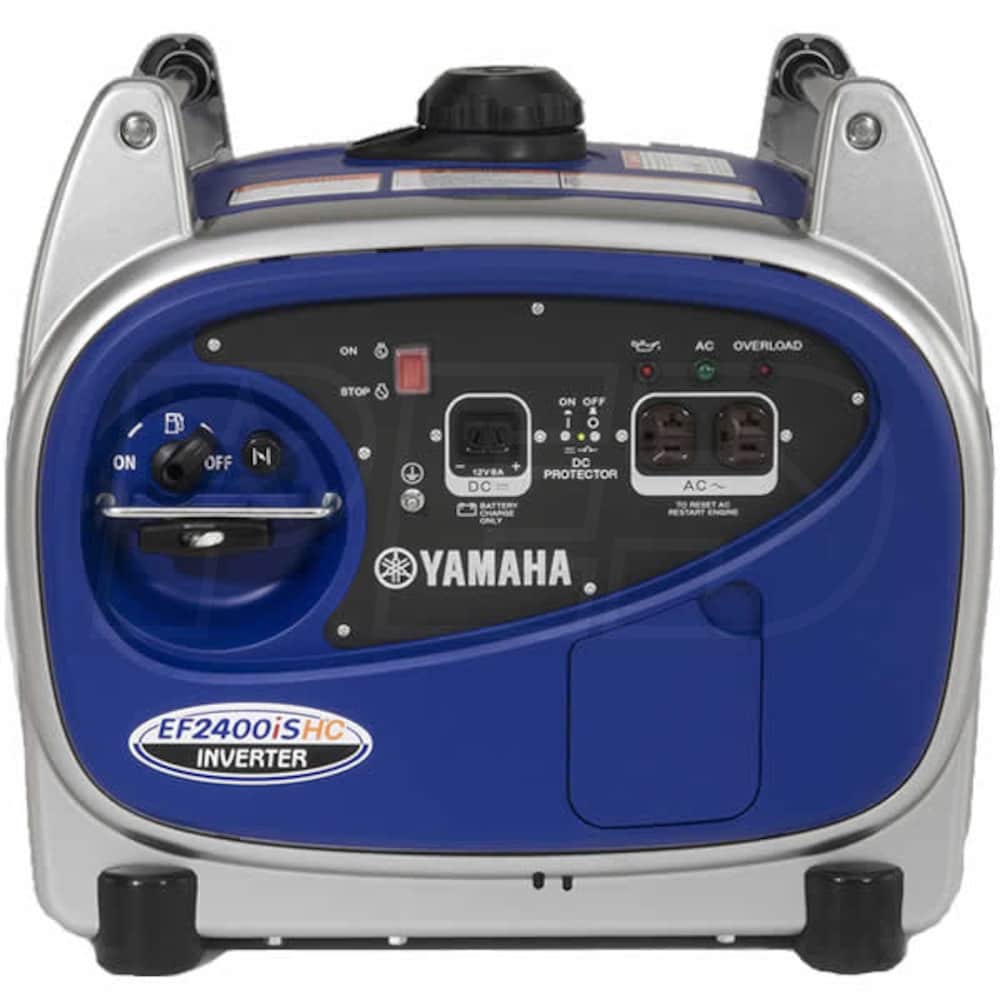

Yamaha EF2400iSHC - 2000 Watt Inverter Generator (CARB)
Model: EF2400ISHC
+
Share This Product
-
Product Description
-
134Reviews
-
11Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
2,000
Rated Watts
Surge Watts
2,400
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
2,000
Surge Watts
2,400 Starting Watts
Fuel
Gasoline
Engine
Yamaha
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

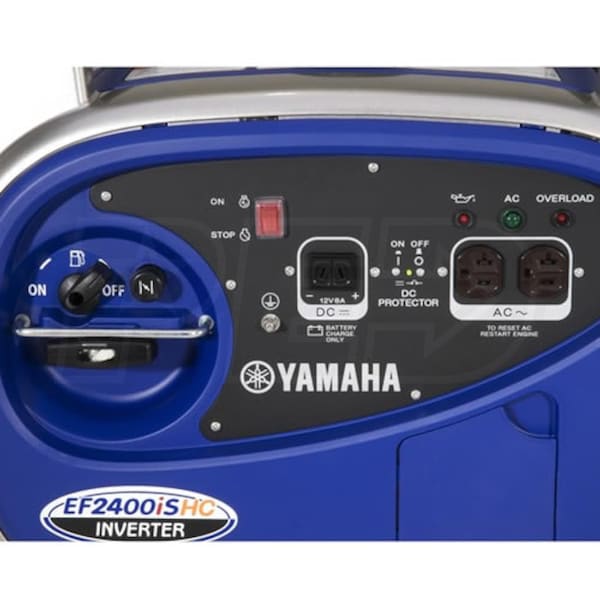

Features
Features
- High Current Surge Output
- Will start most 13,500 btu high efficiency RV air conditioners
- 2400 watts max, 2000 watts continuous output
- Inverter System with Pulse Width Modulation (PWM) Control
- Safely power computers and sensitive electronics
- Smart Throttle™
- Engine speed varies based on load
- Improves fuel economy and reduces noise
- Super-quiet Muffler with USFS-approved Spark Arrestor
- Only 53 dBA at 1/4 load...eliminates errant sparks
- 12-Volt DC Output
- Recharge 12-volt batteries for RV, auto, marine, aircraft, etc.
- Output is 8amp max (Cables Included)
- Oil Not Included
- Legal For Sale In All 50 States
- Meets CARB emission regulations
- NOTE: This model is not compatible with parallel cables
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
2000 Watts
Surge Watts
2400 Watts
Fuel Type
Gasoline
Rated Amps
17 Amps
Portability Kit
Sold Separately
Tank Size
1.6 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53-58 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
75 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.7 Inches
Product Width
16.5 Inches
Product Height
18.1 Inches
UPC
827624825402
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Grade
Style
Run Watts
2,000
Rated Watts
Surge Watts
2,400
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
2,000
Surge Watts
2,400 Starting Watts
Fuel
Gasoline
Engine
Yamaha
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- High Current Surge Output
- Will start most 13,500 btu high efficiency RV air conditioners
- 2400 watts max, 2000 watts continuous output
- Inverter System with Pulse Width Modulation (PWM) Control
- Safely power computers and sensitive electronics
- Smart Throttle™
- Engine speed varies based on load
- Improves fuel economy and reduces noise
- Super-quiet Muffler with USFS-approved Spark Arrestor
- Only 53 dBA at 1/4 load...eliminates errant sparks
- 12-Volt DC Output
- Recharge 12-volt batteries for RV, auto, marine, aircraft, etc.
- Output is 8amp max (Cables Included)
- Oil Not Included
- Legal For Sale In All 50 States
- Meets CARB emission regulations
- NOTE: This model is not compatible with parallel cables
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
2000 Watts
Surge Watts
2400 Watts
Fuel Type
Gasoline
Rated Amps
17 Amps
Portability Kit
Sold Separately
Tank Size
1.6 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53-58 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
75 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.7 Inches
Product Width
16.5 Inches
Product Height
18.1 Inches
UPC
827624825402
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
2000 Watts
Surge Watts
2400 Watts
Fuel Type
Gasoline
Rated Amps
17 Amps
Portability Kit
Sold Separately
Tank Size
1.6 Gallons
Run Time @ 50% Load
6.5 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53-58 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
75 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.7 Inches
Product Width
16.5 Inches
Product Height
18.1 Inches
UPC
827624825402
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Q&A
(11)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does this Yamaha generator use mixed gasoline?
Pete
from New York
February 08, 2017
Answer
Yamaha recommends using 86 Octane fuel or higher. This unit does not require any mixing of gasoline or oil. Owner's Manual.
Was this answer helpful?
Yes
0
No
0
+−
Can this be converted for propane use?
Peter G.
from California
December 15, 2016
Answer
Yamaha does not offer a fuel conversion for any of their generators and adding an aftermarket one will void the warranty.
Was this answer helpful?
Yes
0
No
1
+−
I have a customer running propane on a Yamaha genset. While burning propane the engine burns excessive oil, not a problem on gasoline. Any ideas?
Shane Bland
from Florida
June 24, 2014
Answer
The Yamaha portable generators are engineered and warranted to operate on gasoline only. The reason your customer is burning through oil is due to the excessive temperatures of the unit.
Gasoline burns at 485 degrees F whereas propane burns at 1008 degrees F which will cause excessive heat within the engine in turn burning off the engine oil.
Gasoline burns at 485 degrees F whereas propane burns at 1008 degrees F which will cause excessive heat within the engine in turn burning off the engine oil.
Was this answer helpful?
Yes
0
No
0
+−
Can two of these be connected together? I need 3500 watts minimum to start my A/C unit.
Jeff
from California
October 16, 2013
Answer
Thanks for your inquiry.
The Yamaha High Current model is not compatible with parallel cables. We do offer the EF2000iS Parallel kit which will give you 4000 watts surge and 3200 watts running when using the 30-amp outlet. Below is a link to this kit.
EGD-YAMAHA2000KIT
The Yamaha High Current model is not compatible with parallel cables. We do offer the EF2000iS Parallel kit which will give you 4000 watts surge and 3200 watts running when using the 30-amp outlet. Below is a link to this kit.
EGD-YAMAHA2000KIT
Was this answer helpful?
Yes
0
No
0
+−
I just recieved my Yamaha EF2400iSHC. Do you recommend running synthitic oil? If so what weight? I like running synthic in all my other toys and vehicals Thanks! Ken Kerr
Ken
from Kansas
May 08, 2013
Answer
You will find the oil recommendations on page 24 of the owner's manual....
Recommended Engine Oil:
A. YAMALUBE 4 (10W-40),
SAE 10W-30 or 10W-40
B. SAE #30
C. SAE #20
D. SAE 10W
Recommended engine oil grade:
API Service SE type or higher
Engine Oil Quantity:
0.6L (0.63 US qt, 0.53 lmp qt)
Yamaha does not recommend any synthetic oil in their recommendations.
Recommended Engine Oil:
A. YAMALUBE 4 (10W-40),
SAE 10W-30 or 10W-40
B. SAE #30
C. SAE #20
D. SAE 10W
Recommended engine oil grade:
API Service SE type or higher
Engine Oil Quantity:
0.6L (0.63 US qt, 0.53 lmp qt)
Yamaha does not recommend any synthetic oil in their recommendations.
Was this answer helpful?
Yes
0
No
0
+−
What is a inverter generator?
Francine Breland
from New Jersey
December 28, 2012
Answer
An inverter generator is a power generator that can process raw power into a power feed similar to the power received through power lines. The generator part of an inverter generator is usually powered by gasoline or diesel fuel. "Inverter" means that the power is converted from direct current (DC) into alternating current (AC).
Typically inverter generators are much smaller then standard open frame style generators and tend to operate at very low noise levels. This makes them perfect for tailgating or camping and in some cases able to power one or two items in your home in an emergency.
Typically inverter generators are much smaller then standard open frame style generators and tend to operate at very low noise levels. This makes them perfect for tailgating or camping and in some cases able to power one or two items in your home in an emergency.
Was this answer helpful?
Yes
0
No
0
+−
Can we use the EF2400iSHC with an RV that only has a 30 amp or a 50 amp plug in?
Mary Irish
from Wisconsin
June 24, 2012
Answer
This model is too small for 50A output and in come cases it can be too small for 30A output.
This model is capable of producing 17A with a little surge capacity beyond that. It does have the capability of starting "Most" 13.5 BTU RV AC units when using a 20A power cord connected to a 30A RV connection with an adapter.
The EU3000ISEB is a better choice for output capacity and comfort due to its boost capacity and overall running capability.
Yamaha Model EF3000iSEB
This model is capable of producing 17A with a little surge capacity beyond that. It does have the capability of starting "Most" 13.5 BTU RV AC units when using a 20A power cord connected to a 30A RV connection with an adapter.
The EU3000ISEB is a better choice for output capacity and comfort due to its boost capacity and overall running capability.
Yamaha Model EF3000iSEB
Was this answer helpful?
Yes
0
No
0
+−
Is there a way to shut off the gas supply so I can run the carborator dry?
Bill Garrett
from Florida
June 24, 2012
Answer
Yes, all the Yamaha generators have a fuel valve shutoff allowing you to run the carb dry.
Was this answer helpful?
Yes
0
No
0
+−
How does the EF2400ISHC run a 13,500 BTU air conditioners without a 30amp plungin?
Larry Mitchell
from Texas
June 15, 2012
Answer
You need to us a 20A cord that matches the 120V - 20A outlet to pull the maximum out of the generator.
Was this answer helpful?
Yes
0
No
0
+−
Are there any good quality inverter generators with electronic ignition in the 3kw range or less?
Rob
from North Carolina
April 30, 2011
Answer
The Honda EU3000isA and the 2 Yamaha 2800 watt generators are electric start. Click the links below for additional info:
Small Inverter Generators
Small Inverter Generators
Was this answer helpful?
Yes
0
No
0
+−
Will an inverter type generator be the right choice for running a sump pump that cuts in frequently? The pump is a 1/3 hp 9amp 115 volt. I currently have a 2500 watt porter cable (traditional) generator with Honda motor. I am looking at a Honda or Yamaha as a backup/replacement. I am unsure if I the EF2400 would be powerful enough for the regular and frequent start-ups.
Geoff Winsor
from
January 20, 2011
Answer
The best thing to do is to calculate the starting amperage of the pump to find out what you need exactly. The formula to calculate wattage is - Starting Amps x Volts = Watts. Then you can determine the size that would suit your needs without purchasing something that may or may not work.
Was this answer helpful?
Yes
0
No
0
