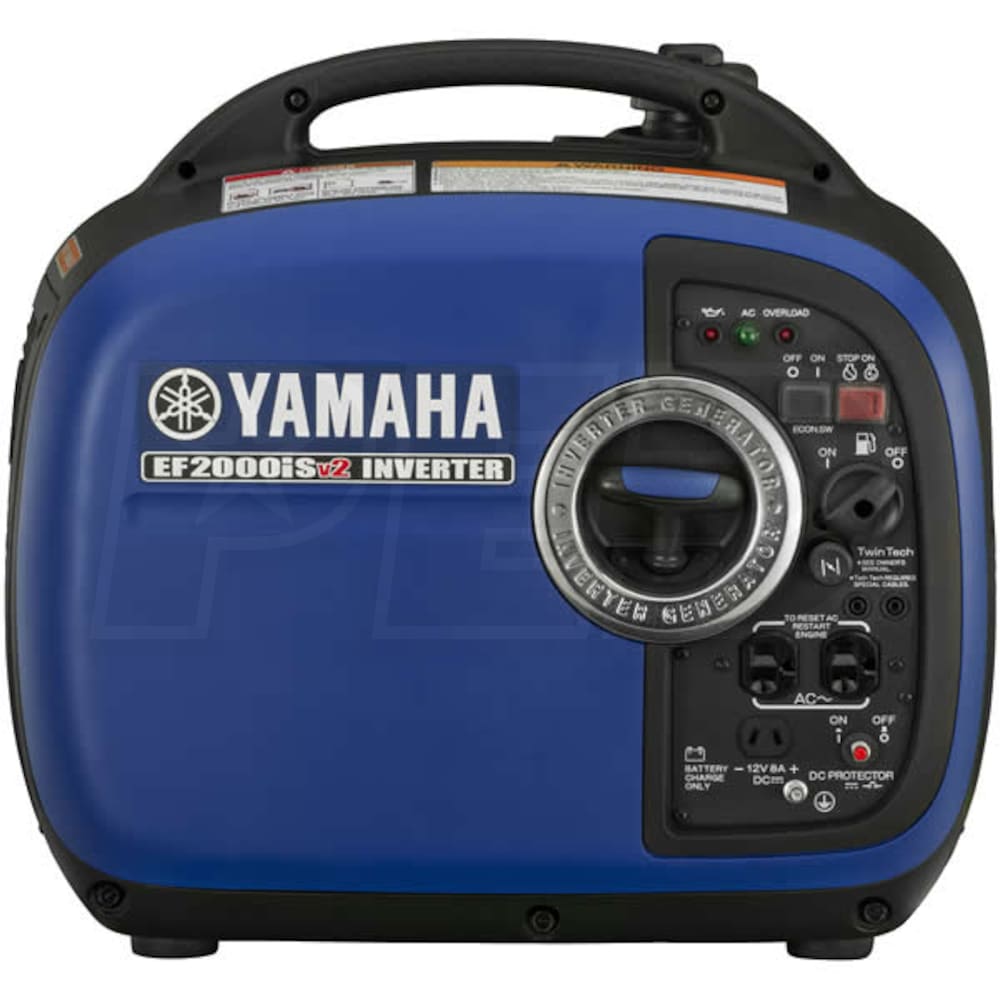

Yamaha EF2000iSv2 - 1600 Watt Inverter Generator (CARB)
Model: EF2000ISV2
+
Share This Product
-
Product Description
-
19Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
1,600
Rated Watts
Surge Watts
2,000
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
1,600
Surge Watts
2,000 Starting Watts
Fuel
Gasoline
Engine
Yamaha
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Completely New Controller w/ Advanced Progarming for 2016
- Now provides the ability to power a wider range of apps.
- Inverter System with Pulse Width Modulation (PWM) Control
- Can safely run products with built-in microcomputers
- 79cc OHV 4-Cycle Engine w/ OilWatch™ Warning System
- Efficient, reliable & provides long life; Auto Decomp. for easy starting
- Prevents engine damage and provides added peace of mind
- Smart Throttle™ Varies Engine Speed Based On Load
- Improves fuel economy and reduces noise
- Noise Block™ Sound Reduction System
- Super-quiet muffler with USFS-approved Spark Arrestor
- Only 51.5-61 dB(A) & eliminates errant sparks
- Light Weight & Compact Engineering
- At only 44 lbs., the EF2000iSV2 is easy to move, transport & lift
- TwinTech™ Capability (Cable Sold Separately)
- Hook up two EF2000iS’s for 3600 watts of max power
- 8-Amps 12V DC Outlet
- Great for charging auto & motorsport batteries (cables not incld).
- *Note - Oil Is Not Included
- 3-Year Industrial & Residential Warranty
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
13 Amps
Tank Size
1.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
51.5-61 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
79 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
44.1 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
19.3 Inches
Product Width
11 Inches
Product Height
17.9 Inches
UPC
400445484609
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Grade
Style
Run Watts
1,600
Rated Watts
Surge Watts
2,000
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
1,600
Surge Watts
2,000 Starting Watts
Fuel
Gasoline
Engine
Yamaha
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Completely New Controller w/ Advanced Progarming for 2016
- Now provides the ability to power a wider range of apps.
- Inverter System with Pulse Width Modulation (PWM) Control
- Can safely run products with built-in microcomputers
- 79cc OHV 4-Cycle Engine w/ OilWatch™ Warning System
- Efficient, reliable & provides long life; Auto Decomp. for easy starting
- Prevents engine damage and provides added peace of mind
- Smart Throttle™ Varies Engine Speed Based On Load
- Improves fuel economy and reduces noise
- Noise Block™ Sound Reduction System
- Super-quiet muffler with USFS-approved Spark Arrestor
- Only 51.5-61 dB(A) & eliminates errant sparks
- Light Weight & Compact Engineering
- At only 44 lbs., the EF2000iSV2 is easy to move, transport & lift
- TwinTech™ Capability (Cable Sold Separately)
- Hook up two EF2000iS’s for 3600 watts of max power
- 8-Amps 12V DC Outlet
- Great for charging auto & motorsport batteries (cables not incld).
- *Note - Oil Is Not Included
- 3-Year Industrial & Residential Warranty
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
13 Amps
Tank Size
1.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
51.5-61 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
79 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
44.1 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
19.3 Inches
Product Width
11 Inches
Product Height
17.9 Inches
UPC
400445484609
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
13 Amps
Tank Size
1.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
51.5-61 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
79 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
44.1 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
19.3 Inches
Product Width
11 Inches
Product Height
17.9 Inches
UPC
400445484609
Plugs
10-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Q&A
(5)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Do you have to mix the oil with the gas?
Jeff S.
from California
July 19, 2018
Answer
There is no need to mix gas and oil. This unit has a separate gas tank and a separate oil reservoir.
Was this answer helpful?
Yes
0
No
0
+−
Does this Yamaha generator use mixed gasoline?
Pete
from New York
February 08, 2017
Answer
Yamaha recommends using 86 Octane fuel or higher. This unit does not require any mixing of gasoline or oil. Owner's Manual.
Was this answer helpful?
Yes
0
No
0
+−
Can this be converted for propane use?
Peter G.
from California
December 15, 2016
Answer
Yamaha does not offer a fuel conversion for any of their generators and adding an aftermarket one will void the warranty.
Was this answer helpful?
Yes
0
No
1
+−
CAN I TETHER A YAMAHA 2400 WITH A 2000 YAMAHA IN ORDER TO GAIN WATTAGE, OR DO THE TWO YAMAHA GENERATORS NEED TO BE IDENTICAL.
DOUG MACKEY
from Texas
June 27, 2016
Answer
Thank you for your inquiry.
The 2400 Yamaha does not have parallel capabilities and cannot be connected to any other inverter. The EF2000i and all other models have to be paralleled to a identical unit.
The 2400 Yamaha does not have parallel capabilities and cannot be connected to any other inverter. The EF2000i and all other models have to be paralleled to a identical unit.
Was this answer helpful?
Yes
0
No
0
+−
can this unit run a few lights and heater in my rv tr.at night
Gloria Jernigan
from New Mexico
June 25, 2016
Answer
Thanks for your inquiry.
Generator sizing is based on the starting amperage of the equipment you plan on powering which will determine the size generator needed.
Proper sizing of the generator is based on 80% of the generators running capacity, so when a large load kicks in the unit has enough flexibility to handle it and still provide clean voltage output.
To calculate the wattage, the following formula will help convert starting amps to watts - Starting Amps x Volts = Watts
You will have to check with the manufacturer of the heater and TV to get the starting and running watts in order to know of this generator will be able to power it.You may have to manage the loads when using a portable generator.
Generator sizing is based on the starting amperage of the equipment you plan on powering which will determine the size generator needed.
Proper sizing of the generator is based on 80% of the generators running capacity, so when a large load kicks in the unit has enough flexibility to handle it and still provide clean voltage output.
To calculate the wattage, the following formula will help convert starting amps to watts - Starting Amps x Volts = Watts
You will have to check with the manufacturer of the heater and TV to get the starting and running watts in order to know of this generator will be able to power it.You may have to manage the loads when using a portable generator.
