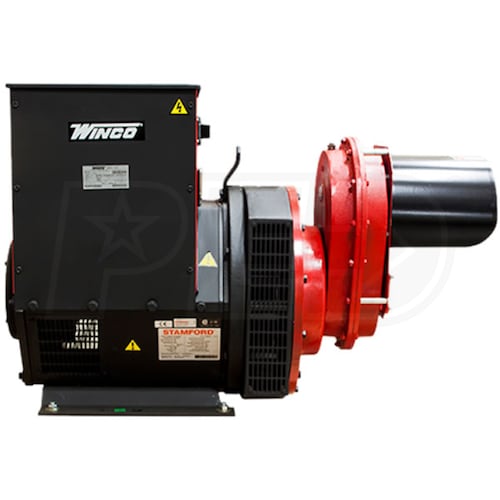

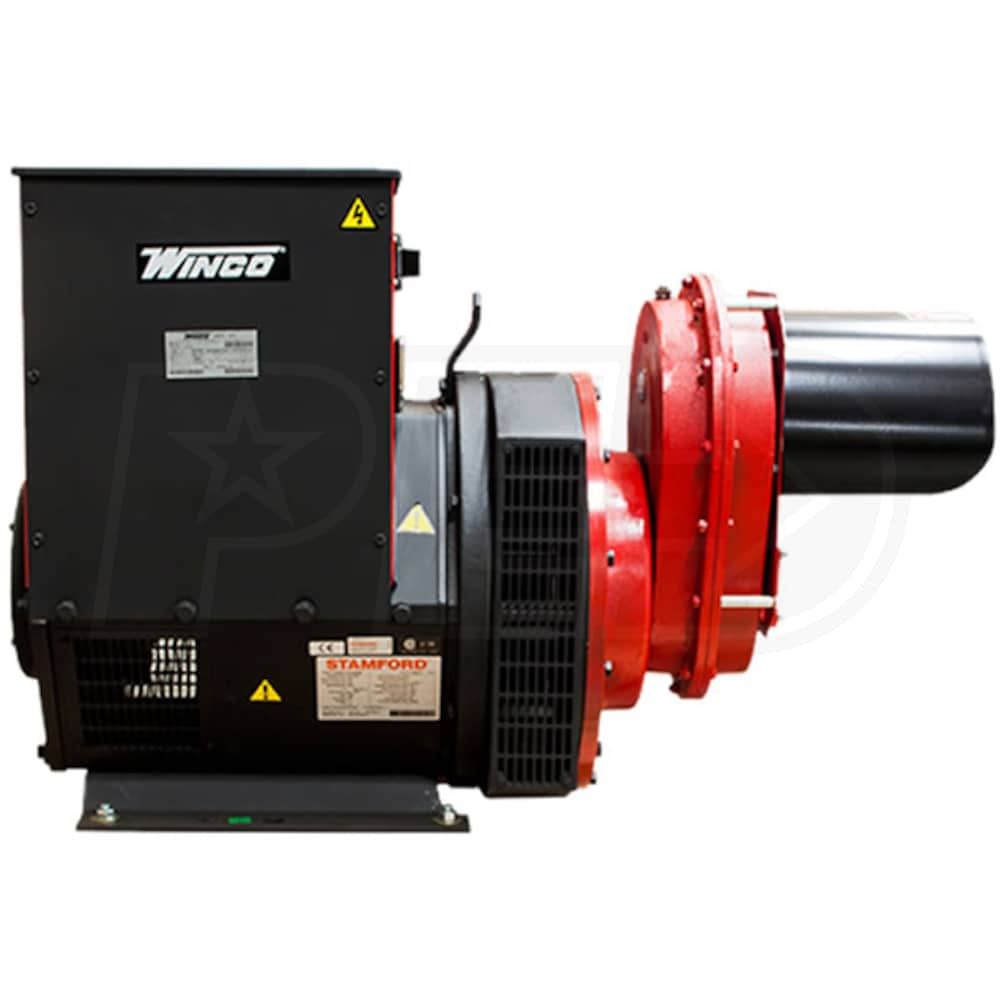

Winco W165PTOS-18 - 165 kW Tractor-Driven PTO Generator (277/480V 3-Phase)

Winco W165PTOS-18 - 165 kW Tractor-Driven PTO Generator (277/480V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: W165PTOS-18
$11,169.00

Backordered
Estimated Availability September 30, 2019
Notify Me When In-Stock
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons
Backordered
Estimated Availability September 30, 2019
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
165,000
Rated Watts
Surge Watts
165,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
165,000
Surge Watts
165,000 Starting Watts
Features
Features
  • This PTO provides 165kW/248 amps continuous power
  • This PTO generator requires 290hp (At the PTO) to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • *No Receptacles* Must Be Hardwired
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
165000 Watts
Surge Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
Additional Model Numbers
W165FPTOT-18, W165PTOS-18
Grade
Style
Run Watts
165,000
Rated Watts
Surge Watts
165,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
165,000
Surge Watts
165,000 Starting Watts
Features
Features
  • This PTO provides 165kW/248 amps continuous power
  • This PTO generator requires 290hp (At the PTO) to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • *No Receptacles* Must Be Hardwired
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
165000 Watts
Surge Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
Additional Model Numbers
W165FPTOT-18, W165PTOS-18
Product Specs
+−
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
165000 Watts
Surge Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
Additional Model Numbers
W165FPTOT-18, W165PTOS-18
