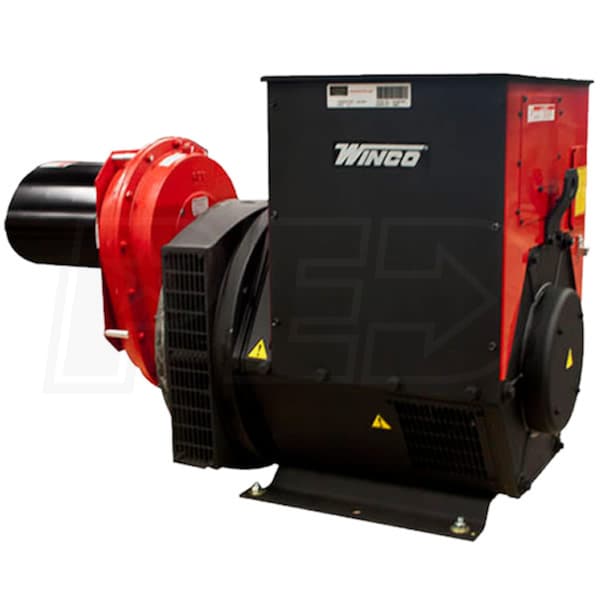

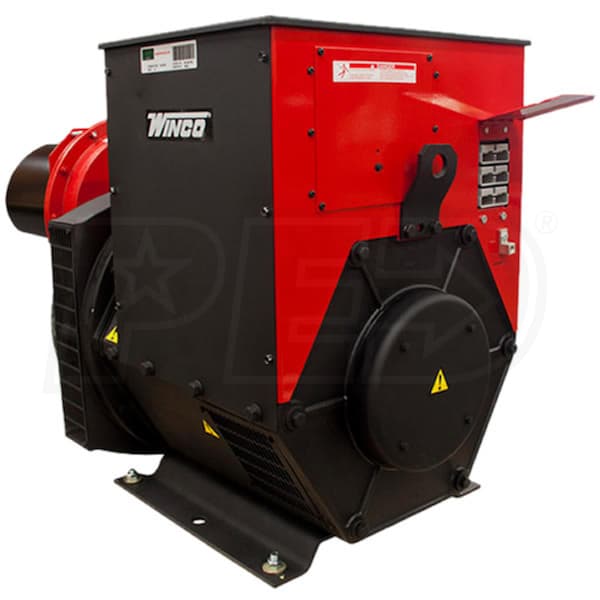

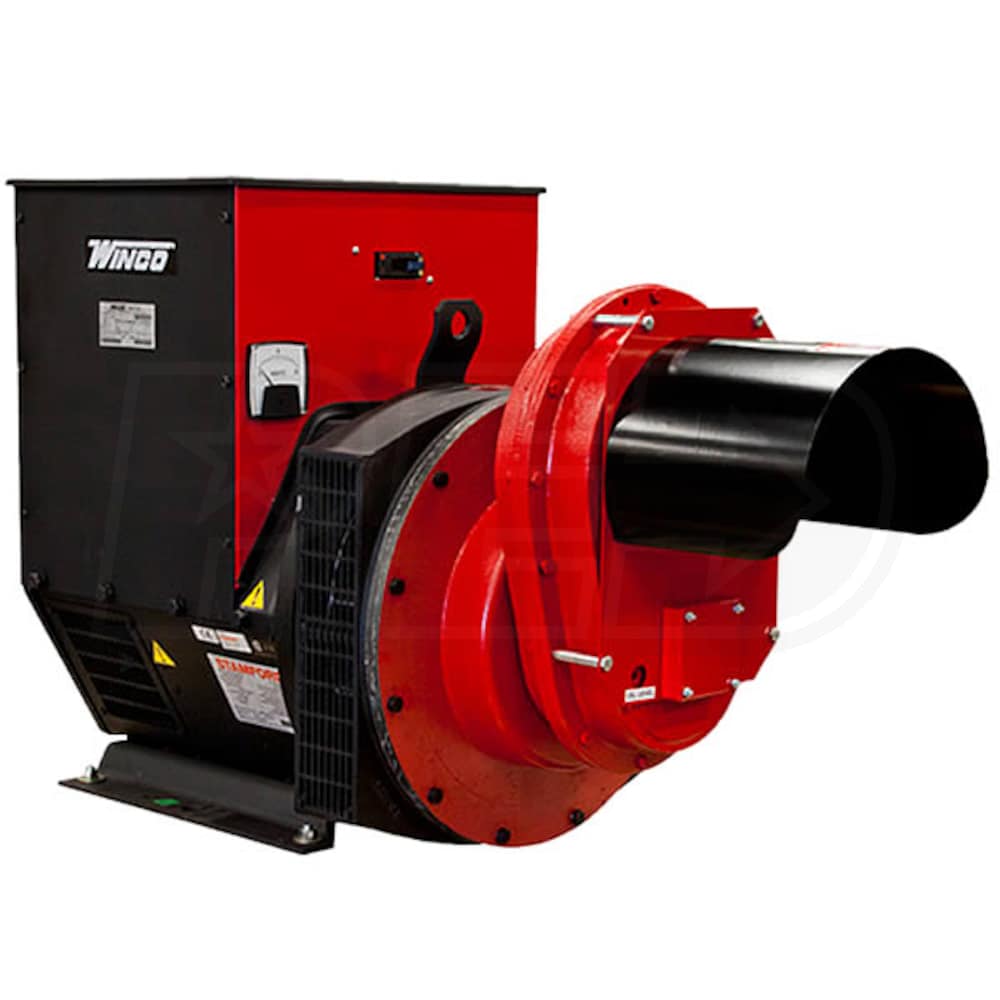

Winco W105PTOS-4 - 105 kW Tractor-Driven PTO Generator (1,000 RPM) (120/208V 3-Phase)
Model: 64868-010
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$9,537.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Watts
PTO Speed
Voltage
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
105,000
Rated Watts
Surge Watts
105,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
105,000
Surge Watts
105,000 Starting Watts
Features
Features
  • This PTO provides 105kW/364 amps continuous power
  • This PTO generator requires 210hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Plugs
NEMA L5-20R
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
105000 Watts
Surge Watts
105000 Watts
Rated Amps
364 Amps
Voltage Meter
Yes
Tractors HP
210 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1216 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
42.2 Inches
Product Width
20.8 Inches
Product Height
30.2 Inches
Additional Model Numbers
W105FPTOT-4, 64868-010
Plugs
NEMA L5-20R
1
NEMA 6-50R
1
Full Power Receptacle
1
Grade
Style
Run Watts
105,000
Rated Watts
Surge Watts
105,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
105,000
Surge Watts
105,000 Starting Watts
Features
Features
  • This PTO provides 105kW/364 amps continuous power
  • This PTO generator requires 210hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Plugs
NEMA L5-20R
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
105000 Watts
Surge Watts
105000 Watts
Rated Amps
364 Amps
Voltage Meter
Yes
Tractors HP
210 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1216 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
42.2 Inches
Product Width
20.8 Inches
Product Height
30.2 Inches
Additional Model Numbers
W105FPTOT-4, 64868-010
Plugs
NEMA L5-20R
1
NEMA 6-50R
1
Full Power Receptacle
1
Product Specs
+
Specifications
Plugs
NEMA L5-20R
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
105000 Watts
Surge Watts
105000 Watts
Rated Amps
364 Amps
Voltage Meter
Yes
Tractors HP
210 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1216 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
42.2 Inches
Product Width
20.8 Inches
Product Height
30.2 Inches
Additional Model Numbers
W105FPTOT-4, 64868-010
Plugs
NEMA L5-20R
1
NEMA 6-50R
1
Full Power Receptacle
1
