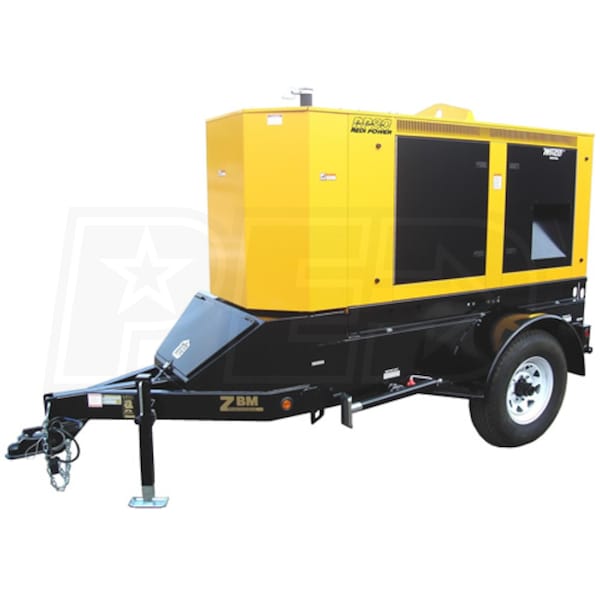

Winco RP80 - 65kW Industrial Towable Diesel Generator w/ Trailer

Model:

RP80

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Winco RP80 - 65kW Industrial Towable Diesel Generator w/ Trailer
Winco RP80 - 65kW Industrial Towable Diesel Generator w/ Trailer
Model: RP80
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

65,000 Rated Watts

Surge Watts

65,000
Starting Watts

Fuel

Diesel

Engine

Iveco Motors

  • Industrial Towable Diesel Generator
  • Designed for long life & to maximize return on investment
  • 4.5L Turbocharged Iveco Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 110-Gallon 7-Gauge Steel Fuel Tank
  • Provides up to 46 hours of run time @ 1/2 load
  • 2-Wire Remote Starting Capability
  • Can be used w/ automatic transfer switch for standby applications
  • Basler DGC-2020 Digital Genset Controller w/ Digital Readouts
  • Automatic safety shutdowns provide added safety
  • Easily monitor all aspects of your genset
  • 4-Position Voltage Selector w/ Auto Shutdown & Safety Lockout
  • Terminal Block for full power connection w/ safety shut off
  • Illuminated Control Panel & Connection Box
  • Easily monitor and control your genset when it's dark
  • Added Features:
  • Large locking door and single point lifting eye
  • Heavy duty steel enclosure w/ powder coat paint
  • DOT Approved Single-Axle Trailer w/ Electric Brakes
  • Front leveling jack & rear stabilization jacks for added safety
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
RP80
specs product image PID-7324
Overview
Weight
4950 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
150 Inches
Product Width
66 Inches
Product Height
83 Inches
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
65000 Watts
Surge Watts
65000 Watts
Fuel Type
Diesel
Tank Size
110 Gallons
Run Time @ 50% Load
46 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (650 CCA)
Grade Type
Professional
Engine
Engine Brand
Iveco Motors
Starting System
12-Volt Key Start
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
2
