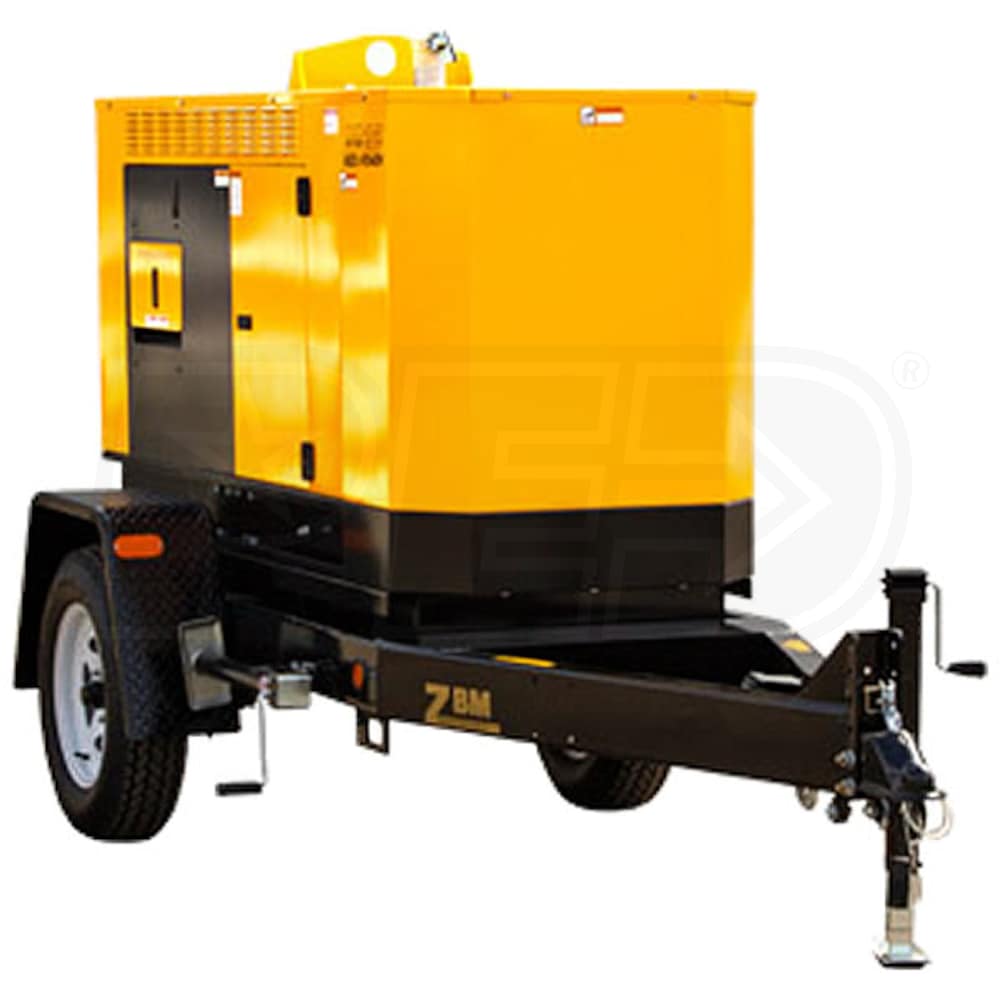

Winco RP25 - 20kW Industrial Towable Diesel Generator w/ Trailer

Winco RP25 - 20kW Industrial Towable Diesel Generator w/ Trailer
Our Price
Compare Prices
Shipping Info
Model: RP25
$25,999.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
Isuzu
Grade
Professional
Style
Tow-Behind
Run Watts
20,000
Surge Watts
20,000 Starting Watts
Fuel
Diesel
Engine
Isuzu
Features
Features
  • Industrial Towable Diesel Generator
  • Designed for long life & to maximize return on investment
  • 2.2L Isuzu Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 55-Gallon 7-Gauge Steel Fuel Tank
  • Provides up to 60 hours of run time @ 1/2 load
  • 2-Wire Remote Starting Capability
  • Can be used w/ automatic transfer switch for standby applications
  • Basler DGC-2020 Digital Genset Controller w/ Digital Readouts
  • Automatic safety shutdowns provide added safety
  • Easily monitor all aspects of your genset
  • 4-Position Voltage Selector w/ Auto Shutdown & Safety Lockout
  • Terminal Block for full power connection w/ safety shut off
  • Illuminated Control Panel & Connection Box
  • Easily monitor and control your genset when it's dark
  • Added Features:
  • Large locking door and single point lifting eye
  • Heavy duty steel enclosure w/ powder coat paint
  • DOT Approved Single-Axle Trailer w/ Electric Brakes
  • Front leveling jack & rear stabilization jacks for added safety
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Isuzu
Starting System
12-Volt Key Start
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
2820 Pounds
Product Style
Towable Generator
Product Length
135 Inches
Product Width
58 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
Diesel
Tank Size
55 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65.9 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (650 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Grade
Style
Run Watts
20,000
Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Engine
Isuzu
Grade
Professional
Style
Tow-Behind
Run Watts
20,000
Surge Watts
20,000 Starting Watts
Fuel
Diesel
Engine
Isuzu
Features
Features
  • Industrial Towable Diesel Generator
  • Designed for long life & to maximize return on investment
  • 2.2L Isuzu Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Large 55-Gallon 7-Gauge Steel Fuel Tank
  • Provides up to 60 hours of run time @ 1/2 load
  • 2-Wire Remote Starting Capability
  • Can be used w/ automatic transfer switch for standby applications
  • Basler DGC-2020 Digital Genset Controller w/ Digital Readouts
  • Automatic safety shutdowns provide added safety
  • Easily monitor all aspects of your genset
  • 4-Position Voltage Selector w/ Auto Shutdown & Safety Lockout
  • Terminal Block for full power connection w/ safety shut off
  • Illuminated Control Panel & Connection Box
  • Easily monitor and control your genset when it's dark
  • Added Features:
  • Large locking door and single point lifting eye
  • Heavy duty steel enclosure w/ powder coat paint
  • DOT Approved Single-Axle Trailer w/ Electric Brakes
  • Front leveling jack & rear stabilization jacks for added safety
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Isuzu
Starting System
12-Volt Key Start
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
2820 Pounds
Product Style
Towable Generator
Product Length
135 Inches
Product Width
58 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
Diesel
Tank Size
55 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65.9 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (650 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Isuzu
Starting System
12-Volt Key Start
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
2820 Pounds
Product Style
Towable Generator
Product Length
135 Inches
Product Width
58 Inches
Product Height
73 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
Diesel
Tank Size
55 Gallons
Run Time @ 50% Load
50 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65.9 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (650 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
2
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Is the generator 3 phase 240volts only or 480 volts
Ron Maragh
from Florida
March 01, 2013
Answer
The Towable generators are voltage selectable.

SWITCHABLE 4-Position Voltage Selector Switch with
Automatic Safety Shutdown and Safety Lock Out
− AC Voltages - 3 Phase: 208, 220, 240, 416, 440, 460, 480V
− AC Voltages - 1 Phase: 120, 139, 208, 220, 240V
Amps: - Single Phase 240V: 70A (at terminal block)
- Three Phase 208V: 69A
- Three Phase 240V: 60A
- Three Phase 480V: 30A
