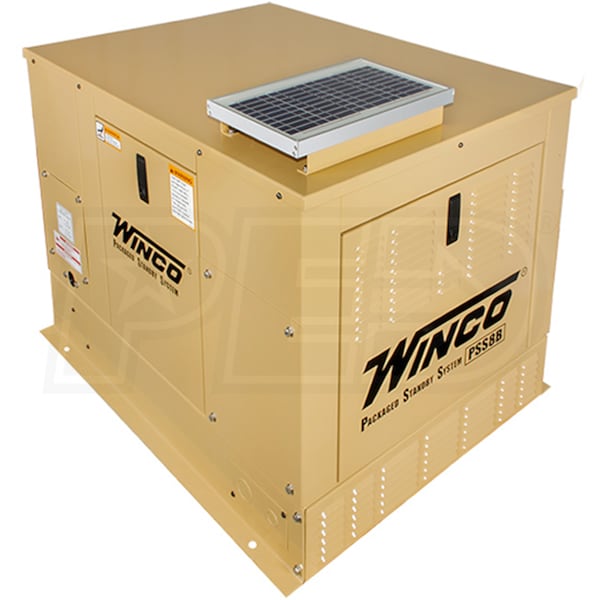

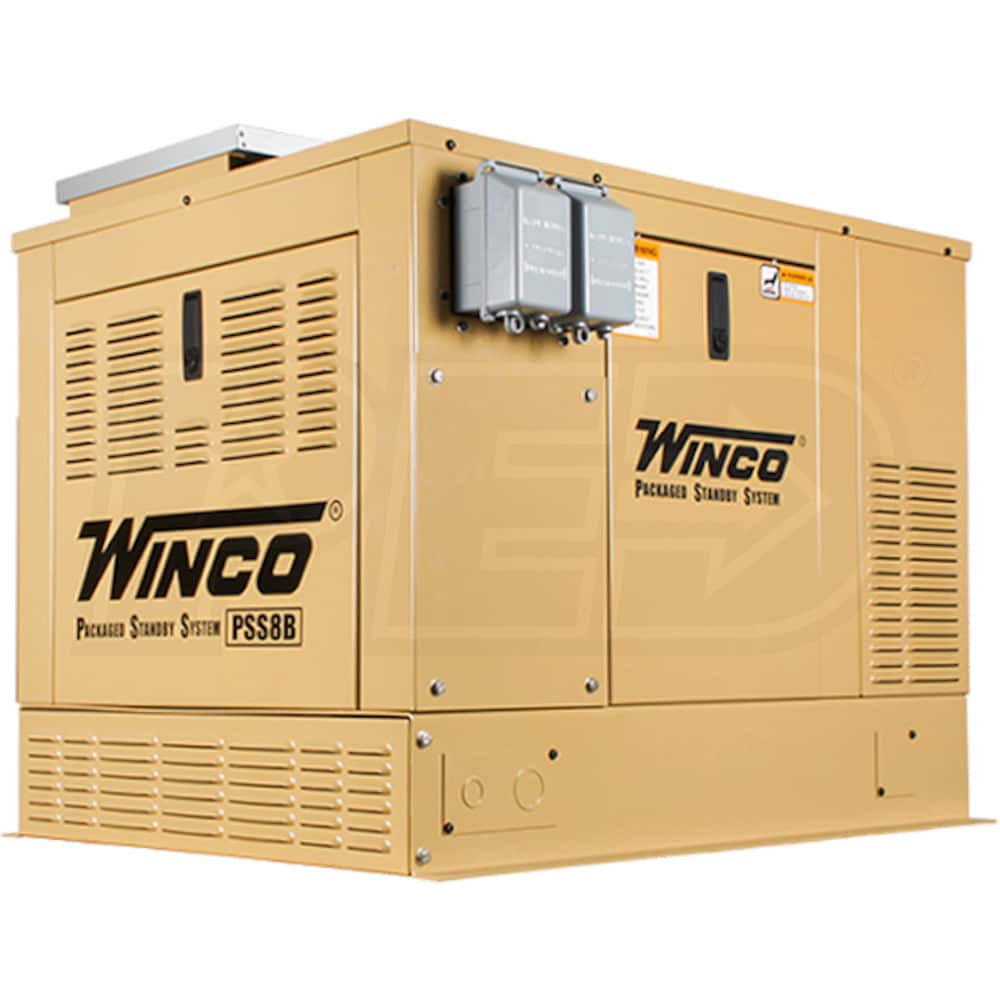

Winco ULPSS8B2WS/F - 8kW Standby Generator for Off Grid Applications, w/ 12V Solar Battery Charger & Ext. Receptacles
Winco ULPSS8B2WS/F - 8kW Standby Generator for Off Grid Applications, w/ 12V Solar Battery Charger & Ext. Receptacles
+
Share This Product
-
Product Description
-
4Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
8,400
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
8,400
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
- Winco PSS8B - 8kW Standby Generator w/ 12V Solar Panel Charger & External Receptacles
- Standard "2-Wire" starting for easy integration into off-grid applications

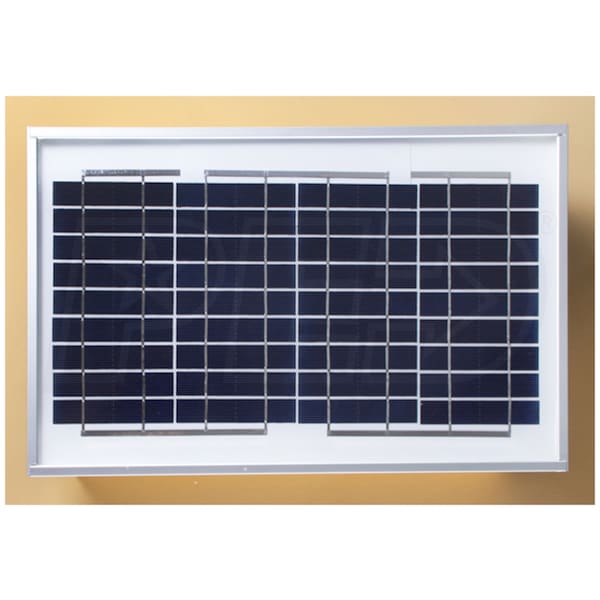

- 12V Solar Panel Starting Battery Charger (Starting Battery Not Included)
- Keeps the battery charged without the need for an external power source

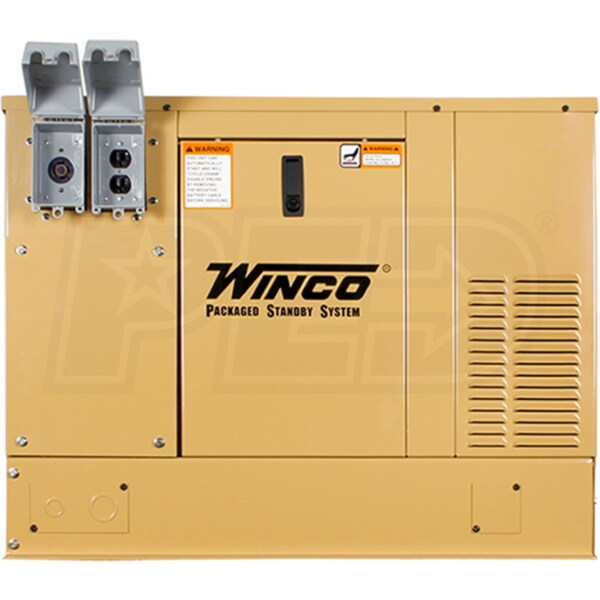

- 20A (L14-20R) & 20A (5-20R Duplex) External Receptacles
- Mounted in weather-proof enclosures for ease of use
- Operates On Clean Burning Natural Gas or Liquid-Propane (LP)
- Engineered for simple and easy field conversion
- 570cc OHV V-Twin Briggs & Stratton Vanguard Professional Grade Engine
- V-Twin, Horizontal design provides smoother power over single cylinder engines
- Pressurized lubrication system with spin-on oil filter
- Brushless Alternator <5% Total Harmonic Distortion
- Provides near utility grade power safe for electronics
- DSE 3110 Digital Controller w/ Display
- Allows for easy access to operating & diagnostic information
- Safety Shutdowns & Overcurrent Protection
- Provides added protection for the generator and load
- 25A Premium Square D Circuit Breakers w/ Visi-Trip Indicator
- Makes it easy to see when a tripped circuit has occurred
- Sure Flow Generator Cooling System
- 3-Chamber housing construction with 3-Air intakes
- Increases air flow while reducing noise and heat
- For Prime Power Derate By 20% - Please See Spec Sheet For Details
- Full Commercial Warranty 1-Year/1000 Hrs. - EPA/CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
8400 Watts
Surge Watts
8400 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7600 Watts
LP Power Capacity
8400 Watts
NG Fuel Consumption @ 100% Load
132 ft³/hr
LP Fuel Consumption @ 100% Load
1.6 gallons/hr
Rated Amps
35 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Hour Meter
Yes
Battery
Not Included (500 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
388 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
Standby Generator
Product Length
36 Inches
Product Width
29.75 Inches
Product Height
27.375 Inches
UPC
682491014904
Additional Model Numbers
PSS8B2W SOLAR, 16400-047
Plugs
NEMA L5-20R
1
NEMA L14-20R
1
Grade
Style
Run Watts
8,400
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
8,400
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
- Winco PSS8B - 8kW Standby Generator w/ 12V Solar Panel Charger & External Receptacles
- Standard "2-Wire" starting for easy integration into off-grid applications
- 12V Solar Panel Starting Battery Charger (Starting Battery Not Included)
- Keeps the battery charged without the need for an external power source
- 20A (L14-20R) & 20A (5-20R Duplex) External Receptacles
- Mounted in weather-proof enclosures for ease of use
- Operates On Clean Burning Natural Gas or Liquid-Propane (LP)
- Engineered for simple and easy field conversion
- 570cc OHV V-Twin Briggs & Stratton Vanguard Professional Grade Engine
- V-Twin, Horizontal design provides smoother power over single cylinder engines
- Pressurized lubrication system with spin-on oil filter
- Brushless Alternator <5% Total Harmonic Distortion
- Provides near utility grade power safe for electronics
- DSE 3110 Digital Controller w/ Display
- Allows for easy access to operating & diagnostic information
- Safety Shutdowns & Overcurrent Protection
- Provides added protection for the generator and load
- 25A Premium Square D Circuit Breakers w/ Visi-Trip Indicator
- Makes it easy to see when a tripped circuit has occurred
- Sure Flow Generator Cooling System
- 3-Chamber housing construction with 3-Air intakes
- Increases air flow while reducing noise and heat
- For Prime Power Derate By 20% - Please See Spec Sheet For Details
- Full Commercial Warranty 1-Year/1000 Hrs. - EPA/CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
8400 Watts
Surge Watts
8400 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7600 Watts
LP Power Capacity
8400 Watts
NG Fuel Consumption @ 100% Load
132 ft³/hr
LP Fuel Consumption @ 100% Load
1.6 gallons/hr
Rated Amps
35 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Hour Meter
Yes
Battery
Not Included (500 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
388 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
Standby Generator
Product Length
36 Inches
Product Width
29.75 Inches
Product Height
27.375 Inches
UPC
682491014904
Additional Model Numbers
PSS8B2W SOLAR, 16400-047
Plugs
NEMA L5-20R
1
NEMA L14-20R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
8400 Watts
Surge Watts
8400 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
7600 Watts
LP Power Capacity
8400 Watts
NG Fuel Consumption @ 100% Load
132 ft³/hr
LP Fuel Consumption @ 100% Load
1.6 gallons/hr
Rated Amps
35 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Hour Meter
Yes
Battery
Not Included (500 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
388 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
Standby Generator
Product Length
36 Inches
Product Width
29.75 Inches
Product Height
27.375 Inches
UPC
682491014904
Additional Model Numbers
PSS8B2W SOLAR, 16400-047
Plugs
NEMA L5-20R
1
NEMA L14-20R
1
