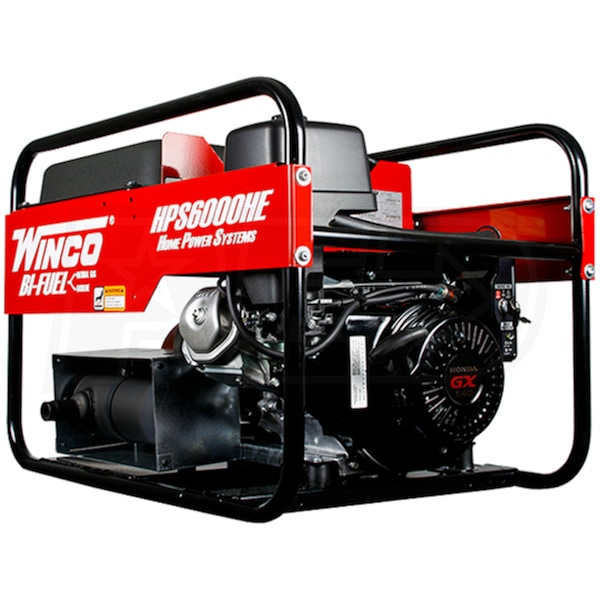

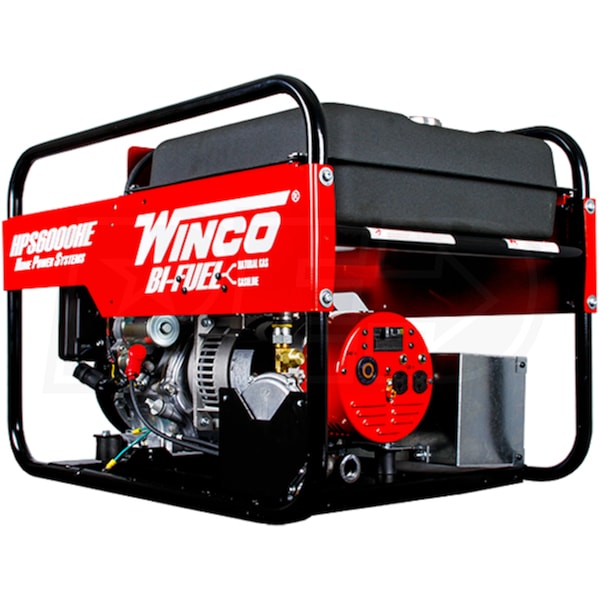

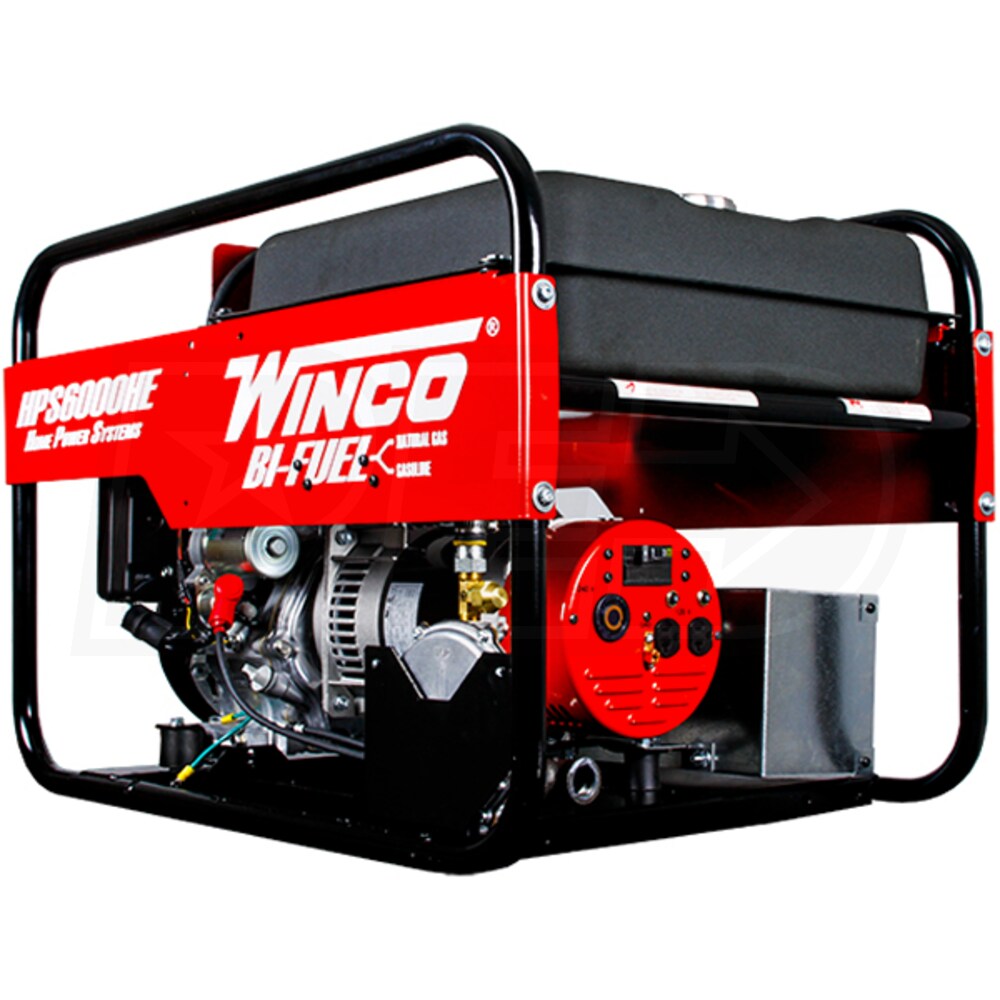

Winco HPS6000HE - 5500 Watt Dual Fuel Generator w/ Electric Start Honda Engine (49-State)
Model: 16606-001
+
Share This Product
-
Product Description
-
18Reviews
-
11Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
5,500
Surge Watts
6,000 Starting Watts
Fuel
Gasoline/Natural Gas
Engine
Honda GX
Features
Features
- Winco HPS6000HE Electric Start Dual Fuel Portable Generator
- Ideal for providing emergency home backup power
- Electric Start - Just Turn The Key
- Includes battery rack and cables
- Requires Group 20 or 24HL 300CCA (Not Included)

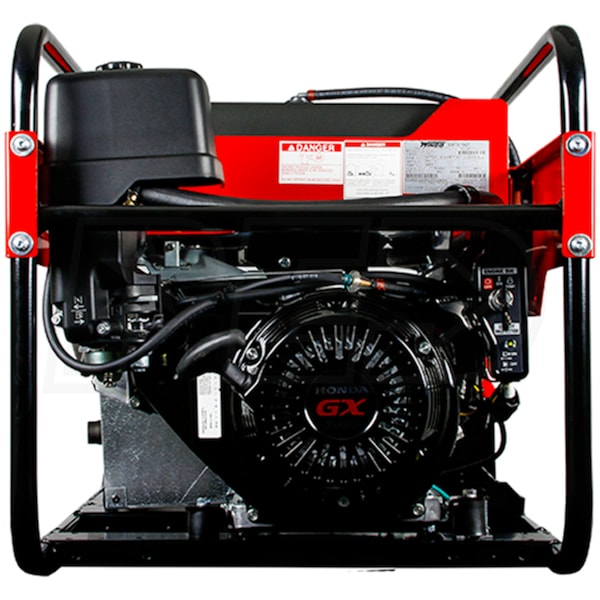

- 389cc Honda GX340 OHV 4-Cycle Engine
- High quality, industrial grade engine
- OHV design for increased efficiency and optimal power transfer
- Honda Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Prevents engine damage from overheating due to lack of oil
- Bi-Fuel Carburetor and Gas Regulator
- Versatile design runs on natural gas or gasoline
- Mecc Alte S16W Brushless Alternator
- 100% copper windings, NEMA Class F insulation
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 7-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions

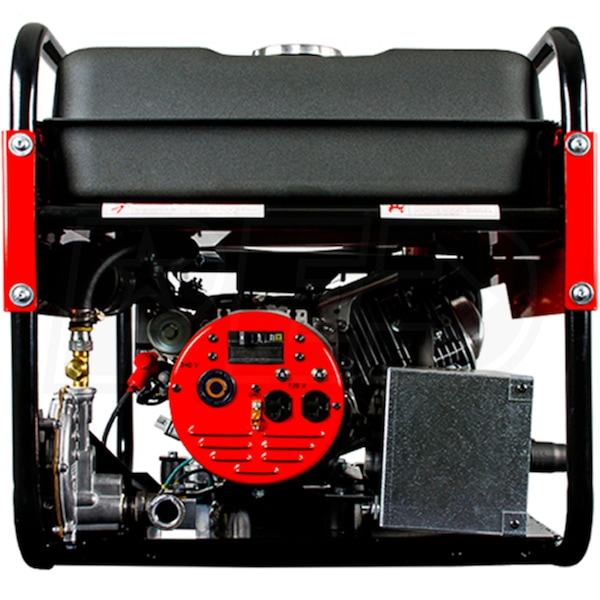

- 120/240V 30-Amp (L14-30) Receptacle
- Allows for connection to a manual transfer switch (MTS)
- 25-Amp Main-Line Circuit Breaker
- Provides superior overload protection
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- All generators are tested prior to leaving the factory
- 2-Year (Generator) / 3-Year (Engine) Residential Warranty
- NOTICE* - Bi-Fuel Starting On Vapor (NG)
- Use of the choke will prevent air and fuel from properly mixing
- Must be started using the electric start system provided
- Will NOT start on (NG) when using recoil starter
- *Note - Derate Output Power By 20% For Natural Gas
- Please see spec sheet for details
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline/Natural Gas
NG Fuel Consumption @ 100% Load
160 ft³/hr
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
224 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS6000HE, 16606-001
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-30R
1
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
5,500
Surge Watts
6,000 Starting Watts
Fuel
Gasoline/Natural Gas
Engine
Honda GX
Features
Features
- Winco HPS6000HE Electric Start Dual Fuel Portable Generator
- Ideal for providing emergency home backup power
- Electric Start - Just Turn The Key
- Includes battery rack and cables
- Requires Group 20 or 24HL 300CCA (Not Included)
- 389cc Honda GX340 OHV 4-Cycle Engine
- High quality, industrial grade engine
- OHV design for increased efficiency and optimal power transfer
- Honda Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Prevents engine damage from overheating due to lack of oil
- Bi-Fuel Carburetor and Gas Regulator
- Versatile design runs on natural gas or gasoline
- Mecc Alte S16W Brushless Alternator
- 100% copper windings, NEMA Class F insulation
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 7-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions
- 120/240V 30-Amp (L14-30) Receptacle
- Allows for connection to a manual transfer switch (MTS)
- 25-Amp Main-Line Circuit Breaker
- Provides superior overload protection
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- All generators are tested prior to leaving the factory
- 2-Year (Generator) / 3-Year (Engine) Residential Warranty
- NOTICE* - Bi-Fuel Starting On Vapor (NG)
- Use of the choke will prevent air and fuel from properly mixing
- Must be started using the electric start system provided
- Will NOT start on (NG) when using recoil starter
- *Note - Derate Output Power By 20% For Natural Gas
- Please see spec sheet for details
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline/Natural Gas
NG Fuel Consumption @ 100% Load
160 ft³/hr
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
224 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS6000HE, 16606-001
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline/Natural Gas
NG Fuel Consumption @ 100% Load
160 ft³/hr
Rated Amps
23 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
224 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS6000HE, 16606-001
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-30R
1
Product Q&A
(11)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can it be started on gasoline & switched over to natural gas while running?
Chester W.
from Texas
August 18, 2018
Answer
It is not suggested to switch fuels while the unit is running. It is designed to be powered down and converted then. When converting fuels while running you do create a hazardous situation. Any type of fuel is obviously flammable and switching fuels during operation can potentially cause a fire.
Was this answer helpful?
Yes
1
No
0
+−
What type/size battery is recommended for this generator?
Lou
from New York
September 09, 2013
Answer
The recommended battery per the owner's manual - Group 20 or 24HL 300CCA (Cold Cranking Amps)
Was this answer helpful?
Yes
1
No
1
+−
Jim,
What else would I need beside a manual transfer switch to hook up the Winco HPS6000HE to my 200A service to my house.
Curt Geigle
from Wisconsin
March 05, 2013
Answer
The main items required to properly connect a generator to an electrical panel would be the transfer switch, power inlet box (outside receptacle) and the power cord.
Was this answer helpful?
Yes
1
No
0
+−
Jim,
Can the Winco HP6000HE-5500 Watt TriFuel generator be hooked up to a small 2000 sq ft. house and supply it with enough power to run basic appliances and lights with out damaging the unit or the house.
Curt Geigle
from Wisconsin
March 05, 2013
Answer
You can run the basics with a 5500 watt generator. This should be enough to run a refrigerator, sump pump and some lights without overloading the unit. The best way is to use a manual transfer switch and then manage the loads as needed. This load management can take a little trial and error to get exactly what you want running at the same time but with proper management it can be done.
Was this answer helpful?
Yes
1
No
0
+−
I want to run my hps6000he tri fuel on a small propane btl like the kind for a gas grill...so can i just use the same kind of hose like the kind on gas grills with the normal regulator on it or can i just use a black hose without the regulator on it? Doesn't this generator already have a built in regulator for lp? thank you
Tim Gilmore
from Texas
October 20, 2012
Answer
These units "cannot" be used with a 5 gallon (20#) propane tank.
Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...
HPS6000HE
60 Deg. F - 40 gal.
30 Deg. F - 50 gal.
0 Deg. F - 125 gal.
-20 Deg. F - 350 gal.
Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...
HPS6000HE
60 Deg. F - 40 gal.
30 Deg. F - 50 gal.
0 Deg. F - 125 gal.
-20 Deg. F - 350 gal.
Was this answer helpful?
Yes
0
No
0
+−
Is there some kind of shutoff or check valve of sorts when using propane or NG to prevent leaking if the generator shuts off because of low oil?
R DeFrancesco
from New York
September 27, 2012
Answer
Winco offers their Emergency Fuel Solenoid Shut-Off for their Tri-Fuel generators....here's the link...
Winco 64854 Emergency Shut-Off
Winco 64854 Emergency Shut-Off
Was this answer helpful?
Yes
0
No
0
+−
Interested in a tri-fuel generator. NG spec 160ft/ hr. I have a half inch line off my main manifold to the backporch for a gas grill. Should that provide adequate flow?
David Distel
from Minnesota
September 16, 2012
Answer
Length of Fuel Line* -Fuel Line Size
Less than 25 feet -3/4 inch black pipe
25 to 100 feet -1 inch black pipe
Over 100 feet -not recommended**
Less than 25 feet -3/4 inch black pipe
25 to 100 feet -1 inch black pipe
Over 100 feet -not recommended**
Was this answer helpful?
Yes
1
No
0
+−
I have 200A service. I am considering the winco 5500 watt as back-up for my house. Are components available that would allow me, in a power outage, to trip the main 200A breaker, then all the individual breakers, plug the generator into my main service box, ramp up the generator, then re-set essential circuit breakers, keeping within the 80% max start up load on the generator? If so, What components would I need, beside the obvious?
Thom
from Arizona
July 27, 2012
Answer
The best option for whole house set-up with a portable generator is model TWB2005DR which is a 200A rated whole house manual transfer switch allowing you to manage your existing circuits.
Reliance Controls TWB2005DR
Reliance Controls TWB2005DR
Was this answer helpful?
Yes
1
No
0
+−
Will this generator (HPS12000HE) deliver full rated power while operating on Propane?
Joseph Smith
from New York
January 21, 2012
Answer
Per page 3 of the owner's manual you would Derate 10% for LP and 20% for NG.
This is true on all Winco Tri-Fuel models.
Owner's Manual
This is true on all Winco Tri-Fuel models.
Owner's Manual
Was this answer helpful?
Yes
2
No
0
+−
What is the LP gas line in pressure required to run this generator.
Joseph Smith
from New York
January 21, 2012
Answer
Correct fuel pressure cannot be stressed enough. The most common cause or inoperative systems is an inadequate or incorrect fuel pressure.
Power and performance of the engine is in direct relation to the correctness of the fuel system.
There are several fuel delivery systems mentioned in the owner's manual and should be referred to when connecting system.
Whichever fuel delivery system or type of vapor fuel used, the fuel pressure at the demand regulator installed on the engine generator must be between 4 and 6 oz. (7-11 inches of water column). Any lower pressure and the unit will starve for fuel under load. Any higher and the unit will ‘flood’ when attempting to start.
There is some very important LP tank sizing requirements in the owner's manual which needs to be reviewed.
Owner's Manual
Power and performance of the engine is in direct relation to the correctness of the fuel system.
There are several fuel delivery systems mentioned in the owner's manual and should be referred to when connecting system.
Whichever fuel delivery system or type of vapor fuel used, the fuel pressure at the demand regulator installed on the engine generator must be between 4 and 6 oz. (7-11 inches of water column). Any lower pressure and the unit will starve for fuel under load. Any higher and the unit will ‘flood’ when attempting to start.
There is some very important LP tank sizing requirements in the owner's manual which needs to be reviewed.
Owner's Manual
Was this answer helpful?
Yes
2
No
0
+−
Seriously considering buying the Winco 5500 Watt TriFuel generator for emergency backup. Does this model have overload protection, or is it necessary? Can you damage your generator by overloading it w/ too many watts? Please explain how this works and if it is something I really should consider in buying a generator. Thanks.
Jim
from Utah
January 21, 2011
Answer
Self-excited generators respond to severe overloading differently than the power line. When overloaded, the engine is not able to supply enough power to bring the
electric motor up to operating speed. The generator responds with high initial starting current, but the engine speed drops sharply. The overload may stall the engine. If allowed to operate at very low speeds, the electric motor starting winding will burn out in a short time. The generator winding might also be damaged.
CAUTION: EQUIPMENT DAMAGE
RUNNING THE GENERATOR SET UNDER THESE CONDITIONS MAY RESULT IN DAMAGING THE GENERATOR STATOR AS WELL AS THE MOTOR WINDING.
It is always best to consider the items you are planning on powering and calculate their starting amperage loads to find out the wattage need at start-up. It is best to size a generator to 80% of its running capacity to help prevent overload, voltage drop and damage to the unit.
Owners Manual
electric motor up to operating speed. The generator responds with high initial starting current, but the engine speed drops sharply. The overload may stall the engine. If allowed to operate at very low speeds, the electric motor starting winding will burn out in a short time. The generator winding might also be damaged.
CAUTION: EQUIPMENT DAMAGE
RUNNING THE GENERATOR SET UNDER THESE CONDITIONS MAY RESULT IN DAMAGING THE GENERATOR STATOR AS WELL AS THE MOTOR WINDING.
It is always best to consider the items you are planning on powering and calculate their starting amperage loads to find out the wattage need at start-up. It is best to size a generator to 80% of its running capacity to help prevent overload, voltage drop and damage to the unit.
Owners ManualWas this answer helpful?
Yes
0
No
0
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Jared
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jared G.
Manuals
+−
+
Ask Jared, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
Winco HPS6000HE - 5500 Watt Dual Fuel Generator w/ Electric Start Honda Engine (49-State)
×
Customer Review Images
