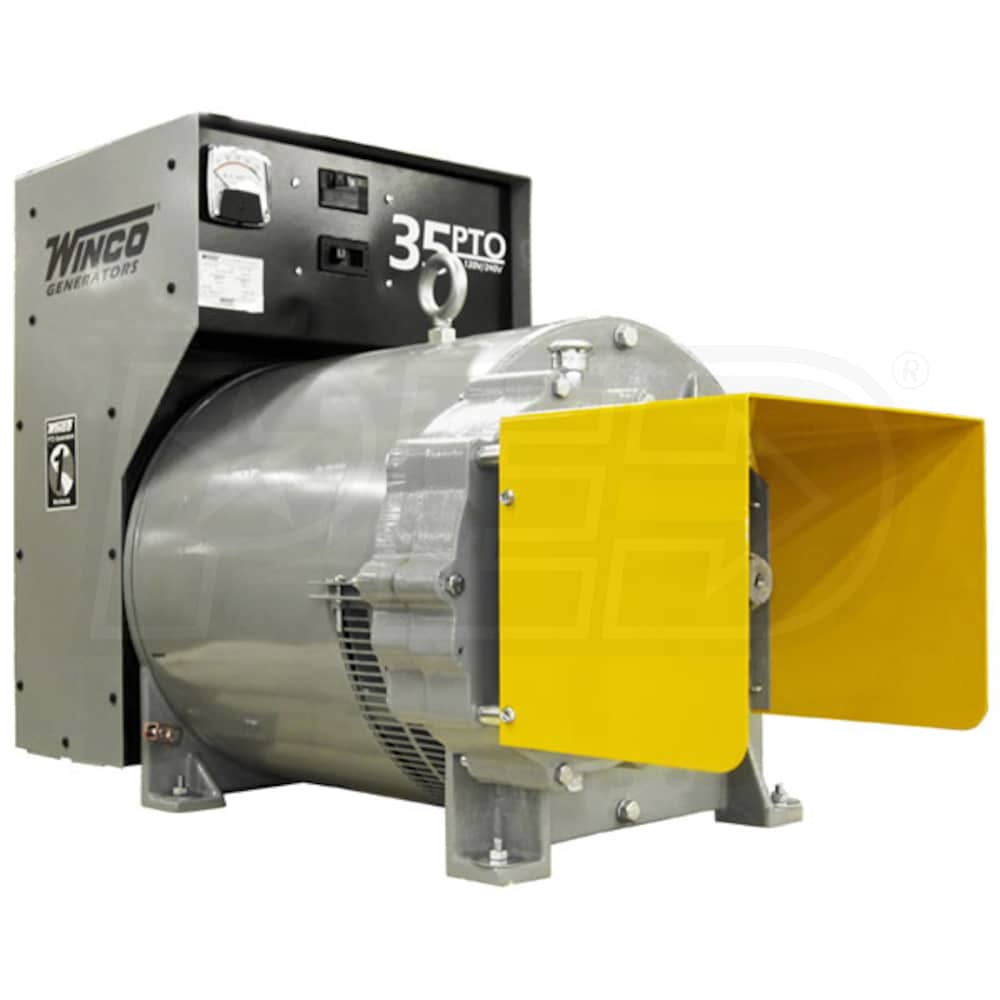

Winco 35FPTOC-3 - 35 kW Tractor-Driven PTO Generator (1,000 RPM)

Winco 35FPTOC-3 - 35 kW Tractor-Driven PTO Generator (1,000 RPM)
Model: 35FPTOC-3
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Model:
35PTOC-3
$4,129.00
Only 2 In-Stock
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
35,000
Rated Watts
Surge Watts
35,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
35,000
Surge Watts
35,000 Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires 70 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Low Harmonic Content (<8%)
  • Produces clean and safe electricity for sensitive electronics
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8"-6 spline
  • Easily connect tumbling bar (sold separately)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
28.5 Inches
Product Width
15.7 Inches
Product Height
19.7 Inches
Consumer Warranty
3 Years
Grade
Style
Run Watts
35,000
Rated Watts
Surge Watts
35,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
35,000
Surge Watts
35,000 Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires 70 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Low Harmonic Content (<8%)
  • Produces clean and safe electricity for sensitive electronics
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8"-6 spline
  • Easily connect tumbling bar (sold separately)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
28.5 Inches
Product Width
15.7 Inches
Product Height
19.7 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
28.5 Inches
Product Width
15.7 Inches
Product Height
19.7 Inches
Consumer Warranty
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Looking at PTO driven 35Kw Gen, 1,000rpm. Does that mean the drive shaft needs to be 1,000? Or what is the rpm of the tractor drive unit to be? Warren.
Warren L Gaiennie Jr
from Louisiana
August 31, 2013
Answer
Thank you for your interest in Electric Generators Direct!

The Winco, 35FPTO-3 is rated for 35kW of output at a PTO speed of 1000RPM. This unit will require your tractor to have have a gear ratio which enables the PTO to operate at 1000RPM. It will also require approximately 70HP at the PTO in order to maintain proper speed and voltage output.

This generator should not be used with a tractor that has less than 70 PTO horse power at a speed of 1000RPM.
