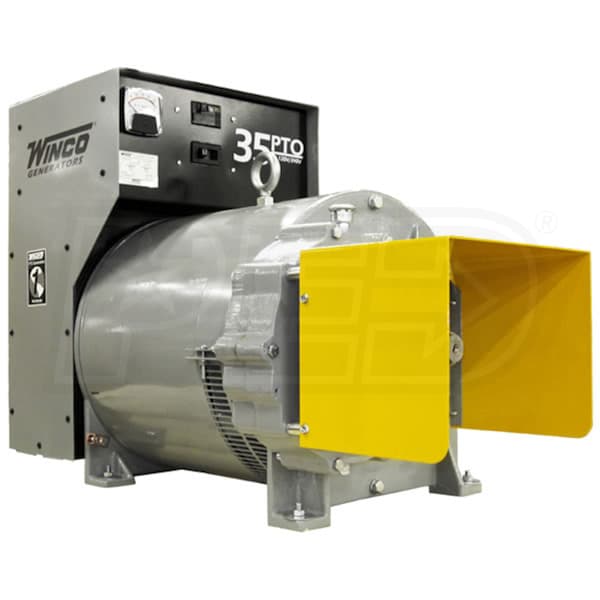

Winco 35PTOC-3 - 35 kW Tractor-Driven PTO Generator (540 RPM)

Winco 35PTOC-3 - 35 kW Tractor-Driven PTO Generator (540 RPM)
Model: 35PTOC-3
$4,129.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
35,000
Rated Watts
Surge Watts
35,000
Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires a 70-HP engine to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Low Harmonic Content (<8%)
  • Produces clean and safe electricity for sensitive electronics
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8" Six Spline Connection
  • Easily connect tumbling bar (sold separately)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
36.6 Inches
Product Width
19.8 Inches
Product Height
21 Inches
Consumer Warranty
3 Years
Grade
Style
Run Watts
35,000
Rated Watts
Surge Watts
35,000
Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires a 70-HP engine to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Low Harmonic Content (<8%)
  • Produces clean and safe electricity for sensitive electronics
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8" Six Spline Connection
  • Easily connect tumbling bar (sold separately)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
36.6 Inches
Product Width
19.8 Inches
Product Height
21 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
35000 Watts
Rated Watts
35000 Watts
Rated Amps
146 Amps
Voltage Meter
Yes
Tractors HP
70 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1
Overview
Made in USA
Yes
Weight
536 Pounds
Product Style
PTO Generator
Product Length
36.6 Inches
Product Width
19.8 Inches
Product Height
21 Inches
Consumer Warranty
3 Years
Reviews
(2)
+
Winco 35PTOC-3 Reviews & Ratings
Product Q&A
(1)
+
Jim, I am looking for a backup generator to run off my Ford 6610 tractor PTO. The tractor is 78.5 HP and 2100 rpm. I want to back up my 3,200 ft house. I already have a very old 56K Stuart and Stevenson military Genset that is wired to the house with a switch. I want a backup to my old backup. I also want to be able to move it around my ranch for other uses. What do you recommend?
John Goodman
from Texas
December 31, 2012
Read Response +
Answer
PTO generator sizing is based on the HP at the PTO which is typically lower then the engine HP and can be calculated as 1000 watts for every 2 PTO HP.

Example: A tractor with 70 PTO HP can use a 35kW generator.

You will need to confirm with a certified electrician if a 35kW generator will be enough to power your 3,200 sq/ft house as it will be based on the starting amperage loads of the equipment you intend on powering.
