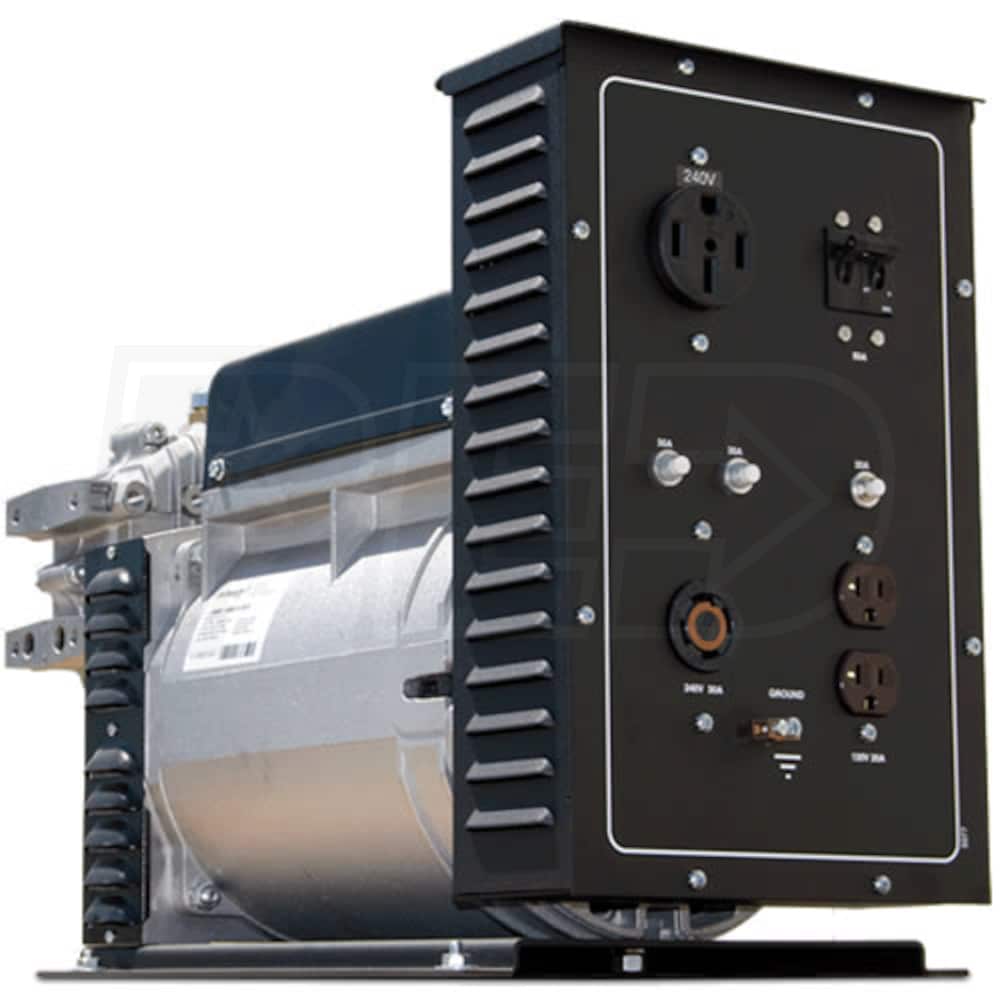

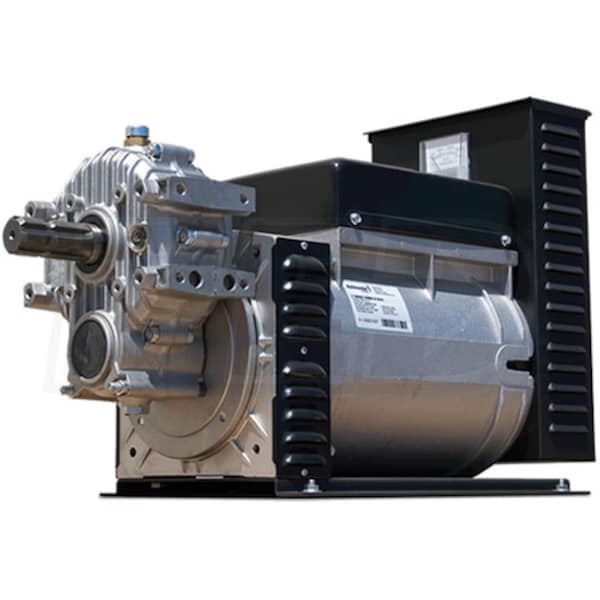

Voltmaster PTO15/12 - 12 kW Tractor-Driven PTO Generator (540 RPM)

Voltmaster PTO15/12 - 12 kW Tractor-Driven PTO Generator (540 RPM)
Model: PTO15/12
$2,041.55
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 45
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
15,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
12,000
Surge Watts
15,000 Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 24 PTO HP
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Smooth Wave™ Voltage Regulation
  • Provides <6% total harmonic distortion & +/- 6% Voltage Reg
  • Thermal/Magnet Circuit Breaker
  • Protects generator and appliances from overload
  • Standard Voltmeter
  • Makes it easy to monitor your power usage
  • Standard 1-3/8” Six Spline w/ Helical Gears
  • Connect tumbling bar (sold separately) between tractor and PTO
  • Added Features
  • PTO safety shield
  • Product Must be mounted to a trailer or concrete slab.
Specifications

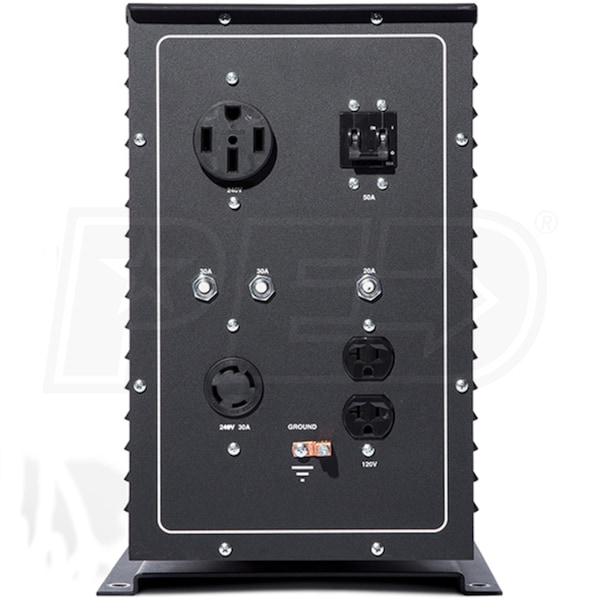

Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
15000 Watts
Rated Watts
12000 Watts
Rated Amps
50 Amps
Voltage Meter
Yes
Tractors HP
24 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Weight
159 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
10.875 Inches
Product Height
16 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
15,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
12,000
Surge Watts
15,000 Starting Watts
Features
Features
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 24 PTO HP
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Smooth Wave™ Voltage Regulation
  • Provides <6% total harmonic distortion & +/- 6% Voltage Reg
  • Thermal/Magnet Circuit Breaker
  • Protects generator and appliances from overload
  • Standard Voltmeter
  • Makes it easy to monitor your power usage
  • Standard 1-3/8” Six Spline w/ Helical Gears
  • Connect tumbling bar (sold separately) between tractor and PTO
  • Added Features
  • PTO safety shield
  • Product Must be mounted to a trailer or concrete slab.
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
15000 Watts
Rated Watts
12000 Watts
Rated Amps
50 Amps
Voltage Meter
Yes
Tractors HP
24 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Weight
159 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
10.875 Inches
Product Height
16 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Surge Watts
15000 Watts
Rated Watts
12000 Watts
Rated Amps
50 Amps
Voltage Meter
Yes
Tractors HP
24 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Weight
159 Pounds
Product Style
PTO Generator
Product Length
29 Inches
Product Width
10.875 Inches
Product Height
16 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Reviews
(45)
+
Voltmaster PTO15/12 Reviews & Ratings
95% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Mike, the Generator Expert
icon-social-fb1
+
Is the head made in China or another location?
Jeff
from Idaho
April 17, 2017
Answer
The generator head itself is made in Italy.
+
Mike, I need height of center of input shaft to bottom of gen base for PTO15/12. You're going to have to pull that tape measure out. Thanks.
Craig Thompson
from Kansas
June 28, 2016
Answer
Below is a link to the cut sheet we have for this unit with the dimensions you need. For more dimensional specs I recommend contacting Voltmaster direct at (800) 730-3927.

Cut Sheet
+
Does the voltmaster pto15/12 generator have a cast iron gear box?
Glenn
from Virginia
January 11, 2014
Answer
Per Voltmaster/Wanco the gear box housing is cast aluminum.
+
Would this be a good choice for a John Deere 2320 which the manual states produces 18 HP at the PTO and a total of 24 HP at the engine [crank]?
Kirby
from Ohio
July 23, 2013
Answer
Thank you for your inquiry....

Unfortunately this generator is too large for your tractor. The proper sizing of a tractor to a PTO generator is 1000 watts for every 2 PTO HP. With your unit having 18 HP at the PTO the largest generator you could go with would be 9kW (9000 watts).

Your tractor does not produce enough power output to the PTO generator for it to produce the proper wattage or the proper Hz/Voltage and if connected to your unit you could damage the PTO generator and the equipment you are connecting it to.

Our smallest unit is a 10kW by IMD and with it being borderline with your tractor output we recommend that you contact IMD to confirm it would work.

IMD - (864) 968-0858

Models - PTO 10-2S & PTO 10-2S AVR
+
I have a old farmall 230 farm tractor will it drive this generator?
Don Wackerle
from Michigan
May 11, 2013
Answer
PTO generator sizing is based on the HP at the PTO and can be calculated using the following....

1000 watts for every 2 PTO HP.
+
Any problems using this exposed to the weather? Not all the time, just during power outages when it will probably be raining or snowing.
Will
from Kentucky
December 26, 2012
Answer
Per the owner's manual these units are not to be run in rain or snow.

Owner's Manual
+
I have ordered the 12/15 Kw voltmaster pto generator from your online store, unfortunately the factory has a back order problem with parts so not sure when I will receive the generator, but would like to know what plug types I will need to hook up when I receive it. Thanks, Joe
Joe Croisant
from Texas
August 11, 2012
Answer
The unit comes with the following outlets.....






+
Bought a voltmaster pto15/12 generator with a 50 amp plug and a reliance transfer switch. The reliance switch came with a 50 plug with 3 prongs. It says it needs a CS6365 power cord plug type. Do you have cords to connect generator to plug in wall in garage.
Bryan
from Connecticut
April 05, 2012
Answer
The following cord has the correct connections to connect the generator to the Reliance Switch.

Gen-Tran 50A 25ft Cord

This cord has the following ends.....



+
Some of your generators say tractor horsepower and some say PTO HP which is it? I have a 35hp tractor with a 25hp PTO what is the biggest gen I could have hooked up to it?
Rob Bridges
from Illinois
January 31, 2011
Answer
The HP rating is based on the PTO HP and when looking at your PTO HP output the estimated generator size is based on the following: 1000 watts for every 2 PTO HP so for your 25HP PTO you can use a maximum 12,500 watt generator.
