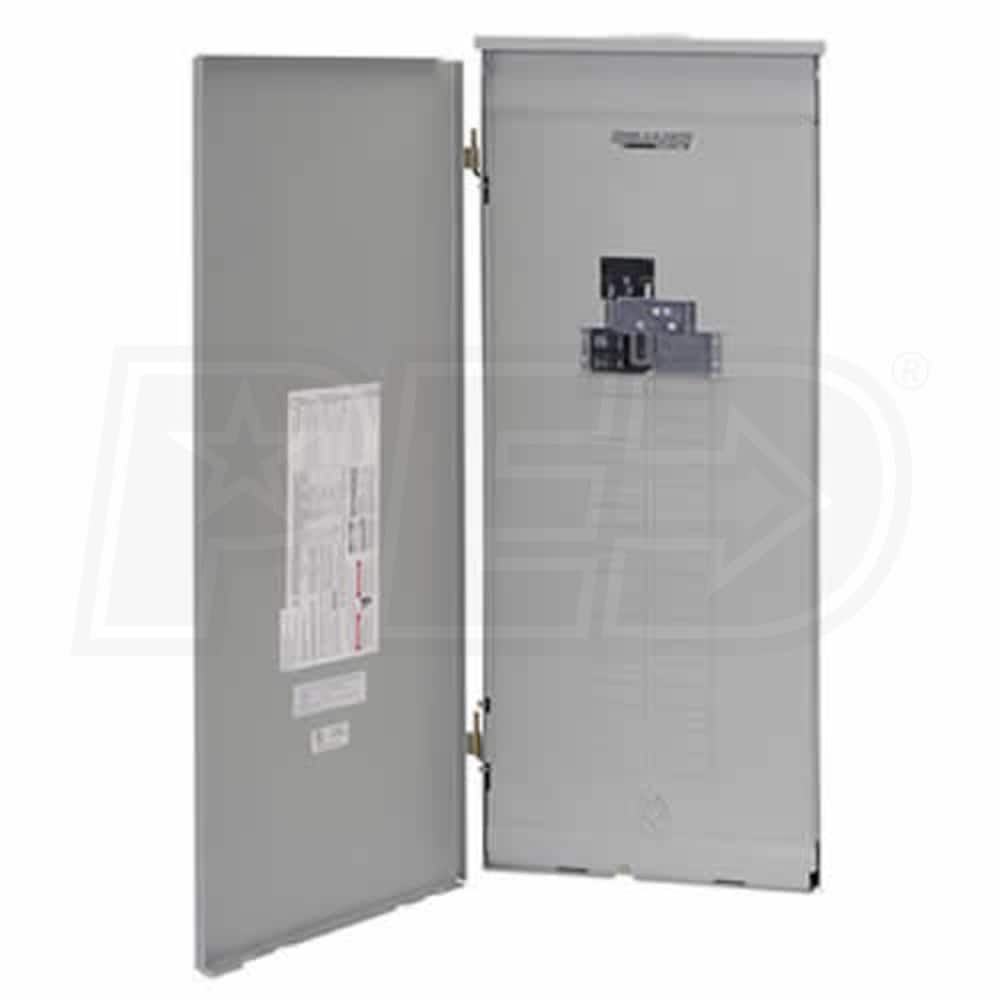

Reliance Controls 200-Amp Outdoor Generator-Ready Load Center
Model: TTV2005DR
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- This load center replaces your house's standard panel
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
36
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
52 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
40 Inches
Product Width
14.25 Inches
Product Height
4.5 Inches
UPC
815181015640
Features
Features
- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- This load center replaces your house's standard panel
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
36
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
52 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
40 Inches
Product Width
14.25 Inches
Product Height
4.5 Inches
UPC
815181015640
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
36
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
52 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
40 Inches
Product Width
14.25 Inches
Product Height
4.5 Inches
UPC
815181015640
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What circuit breakers do I use for the branch circuits?
Mike
from Iowa
February 08, 2011
Answer
Reliance Controls transfer panels are UL listed for a number of interchangeable breakers (see label on the inside cover of the transfer panel). If the main panel has this type of breaker, relocate the selected branch circuit breakers to the transfer panel. If the breakers cannot be moved, other breakers of the same ampacity must be installed in the transfer panel.
THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
Was this answer helpful?
Yes
1
No
0
