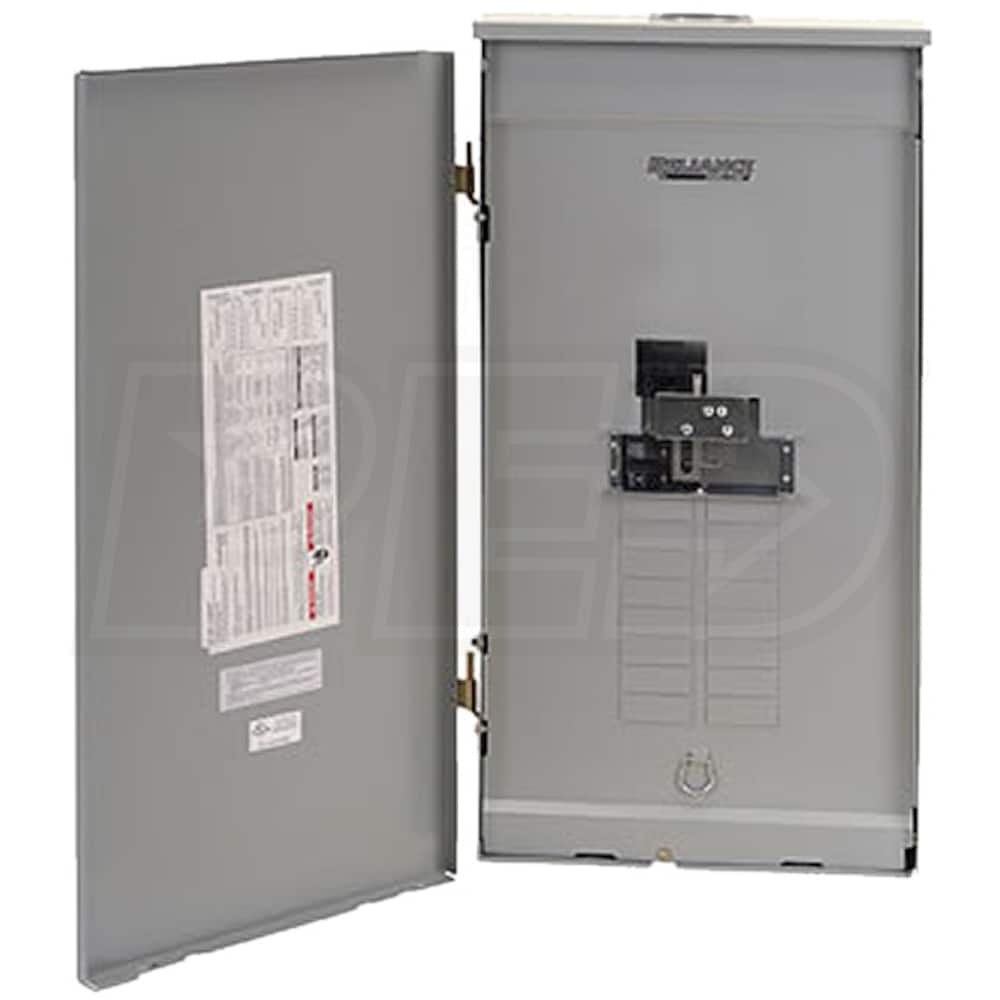

Reliance Controls 200-Amp Outdoor Power Center (50-Amp Generator)
Model: TTH2005DR
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$395.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Available Add-Ons
Learn More Installation
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 50-Amp Outdoor Power Center (200-Amp Utility)
  • Feed generator power to your whole electrical panel
  • Pick & choose what you want to run (up to gen capacity)
  • Service Disconnect
  • Quick and easy installation through your utility meter
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Full-Size Load Center
  • Can accommodate up to 16 1-Inch Breaker or 32-tandem breakers
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • Heavy-Duty Copper Bus Bar For Added Reliability
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
40 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
29 Inches
Product Width
16.625 Inches
Product Height
4.5 Inches
UPC
815181015381
Features
Features
  • 50-Amp Outdoor Power Center (200-Amp Utility)
  • Feed generator power to your whole electrical panel
  • Pick & choose what you want to run (up to gen capacity)
  • Service Disconnect
  • Quick and easy installation through your utility meter
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Full-Size Load Center
  • Can accommodate up to 16 1-Inch Breaker or 32-tandem breakers
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • Heavy-Duty Copper Bus Bar For Added Reliability
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
40 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
29 Inches
Product Width
16.625 Inches
Product Height
4.5 Inches
UPC
815181015381
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
40 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
29 Inches
Product Width
16.625 Inches
Product Height
4.5 Inches
UPC
815181015381
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Josh, looking at getting the Reliance TTH2005DR outdoor power center to replace my entrance power center. My existing panel has Type QP circuit breakers. Will this Reliance panel accept my circuit breakers. This way I don't have to buy new circuit breakers.
Cory Acosta
from Louisiana
September 01, 2013
Answer
Model TTH2005DR can be used as a replacement to an existing outdoor electrical panel where is can accommodate up to 16 standard circuits.

The acceptable breakers are listed within the manufacturers spec sheet....

Spec Sheet
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
