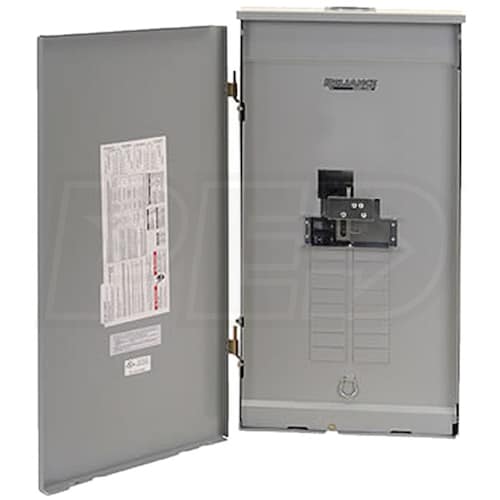

Reliance Controls 200-Amp Outdoor Power Center (30-Amp Generator)

Reliance Controls 200-Amp Outdoor Power Center (30-Amp Generator)
Model: TTH2003DR
$375.00
Only 1 In-Stock
Ships Friday, Jan 19th
Tax-Free (Except IL)

In-Stock No Sales Tax* (Except IL)$375.00Buy Now
No Sales Tax* (Except IL)$375.00Visit Site
Only 1 In-Stock
Ships Friday, Jan 19th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 30-Amp Outdoor Power Center (200-Amp Utility)
  • Feed generator power to your whole electrical panel
  • Pick & choose what you want to run (up to gen capacity)
  • Service Disconnect
  • Quick and easy installation through your utility meter
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Full-Size Load Center
  • Can accomodate up to 16 1-Inch Breaker or 32-tandem breakers
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • Heavy-Duty Copper Bus Bar For Added Reliability
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
40 Pounds
Product Length
29 Inches
Product Width
14.625 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
815181015350
Features
Features
  • 30-Amp Outdoor Power Center (200-Amp Utility)
  • Feed generator power to your whole electrical panel
  • Pick & choose what you want to run (up to gen capacity)
  • Service Disconnect
  • Quick and easy installation through your utility meter
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Full-Size Load Center
  • Can accomodate up to 16 1-Inch Breaker or 32-tandem breakers
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • Heavy-Duty Copper Bus Bar For Added Reliability
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
40 Pounds
Product Length
29 Inches
Product Width
14.625 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
815181015350
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
40 Pounds
Product Length
29 Inches
Product Width
14.625 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
815181015350
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Reliance Controls product.
Product Q&A
(2)
+
Hi Josh. What is the difference between this item and the Generac 6335? Are they basically the same item except for brand?
John Buchman
from Texas
September 09, 2013
Read Response +
Answer
Thank you for your inquiry!

The Reliance Controls, TTH2003DR is designed to act as a service disconnect much like the Generac 6335. The products are similar in this way as will as the fact that they can support branch circuits.

The main difference between the two products is that the TTH2003DR is rated to handle only 30 amps of power from the generator while the 6335 is rated for up to 50 amps. Also, the Reliance Controls product will require the installation of a power inlet box, while the Generac 6335 has the 50 amp connection pre-installed.

Hide Response -
I would like to put a small box outside with arm switch to go from incoming power (turn off incoming) and plug my propane generator to my house power line. Can this be done? Thank you
Bill Schoppmeyer
from New York
May 11, 2013
Read Response +
Answer
If you are going to use the generator to power your entire electrical panel and you have 200A service coming in then the Reliance Controls TTH2003DR would be the right switch.

This switch is mounted immediately after your electrical meter allowing you to switch from utility to generator where it will power your entire electrical panel.

Please keep in mind that portable generators are not large enough to power your entire electrical panel so you must properly manage the load so you do not overload the generator.

Hide Response -
