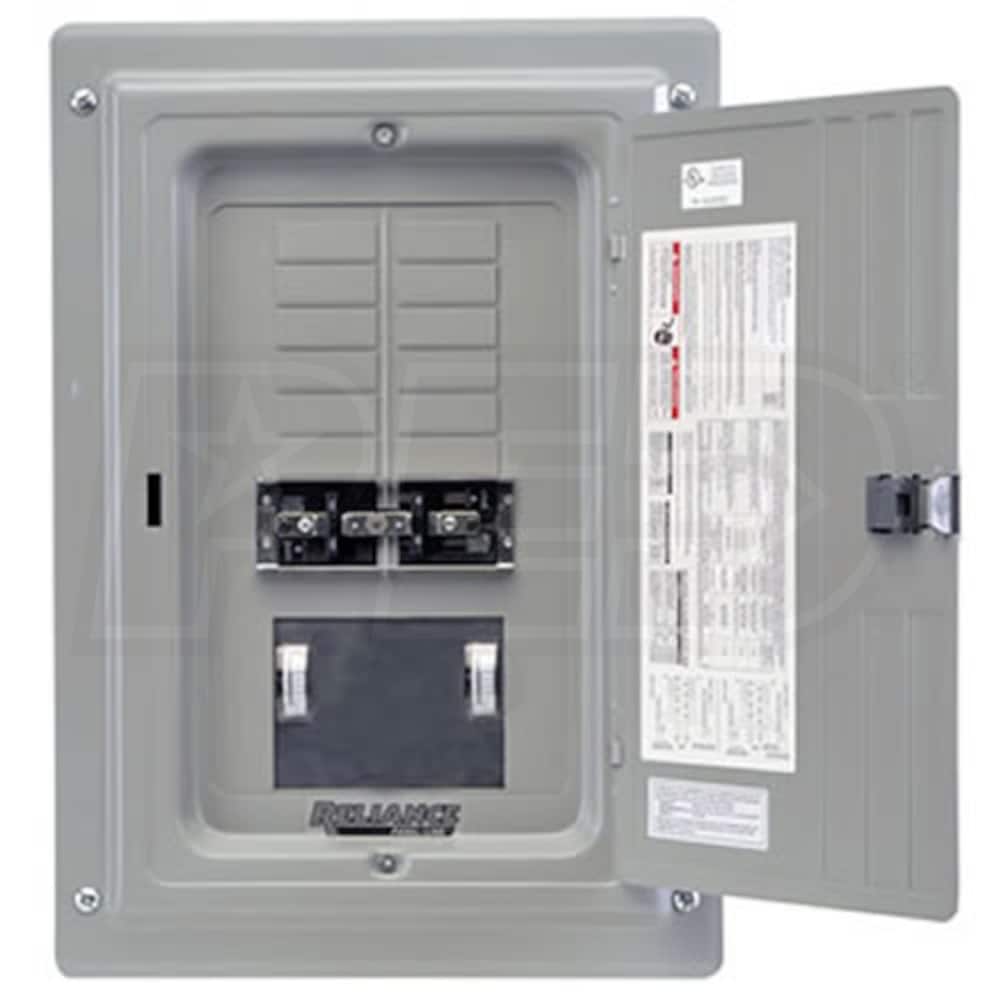

Reliance Controls 100-Amp Indoor Transfer Panel w/ Wattmeters
Share
+Share This Product
Product Description
Specs
3
Reviews
2
Product Q&A
Recommended Accessories
How-To Articles
Manuals
Product Description
+−
Features
Features
Reliance Panel/Link®
Combines a circuit panel and a transfer switch together
Perfect for new construction and/or renovation
Built-in wattage meter helps you manage load
This transfer panel is designed for hardwired installation.
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181014803
Features
Features
Reliance Panel/Link®
Combines a circuit panel and a transfer switch together
Perfect for new construction and/or renovation
Built-in wattage meter helps you manage load
This transfer panel is designed for hardwired installation.
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181014803
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181014803
Reviews
(3)
+−
Reliance Controls TRC1003C Reviews & Ratings
Product Q&A
(2)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
+−
In reviewing the specs does the panel come with a 100 A and a 30 A breaker for utility and generator input?
Vince
from New York
September 21, 2013
Answer
The main transfer mechanism is rated to accept 100A input from utility and 30A input from generator. The branch circuit breakers are not included. This switch is service entrance rated.
+−
What circuit breakers do I use for the branch circuits?
Mike
from Iowa
February 08, 2011
Answer
Reliance Controls transfer panels are UL listed for a number of interchangeable breakers (see label on the inside cover of the transfer panel). If the main panel has this type of breaker, relocate the selected branch circuit breakers to the transfer panel. If the breakers cannot be moved, other breakers of the same ampacity must be installed in the transfer panel.
THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
