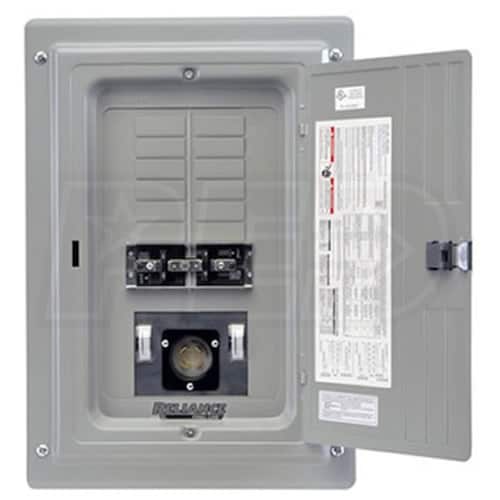

Reliance Controls 100-Amp Indoor Transfer Panel w/ 30-Amp Power Inlet
Reliance Controls 100-Amp Indoor Transfer Panel w/ 30-Amp Power Inlet
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reliance Panel/Link®
- Combines a circuit panel and a transfer switch together
- Perfect for new construction and/or renovation
- Plug generator cord into panel to power circuits
- Built-in wattage meter helps you manage load
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181010201
Plugs
NEMA L14-30R
1
Features
Features
- Reliance Panel/Link®
- Combines a circuit panel and a transfer switch together
- Perfect for new construction and/or renovation
- Plug generator cord into panel to power circuits
- Built-in wattage meter helps you manage load
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181010201
Plugs
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
27 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
815181010201
Plugs
NEMA L14-30R
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What circuit breakers do I use for the branch circuits?
Mike
from Iowa
February 08, 2011
Answer
Reliance Controls transfer panels are UL listed for a number of interchangeable breakers (see label on the inside cover of the transfer panel). If the main panel has this type of breaker, relocate the selected branch circuit breakers to the transfer panel. If the breakers cannot be moved, other breakers of the same ampacity must be installed in the transfer panel.
THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
THE FOLLOWING CIRCUIT BREAKERS ARE UL LISTED FOR USE WITH ALL TR, TT, T1 AND T2 SERIES RELIANCE CONTROLS TRANSFER PANELS:
SIEMENS TYPES QP, QT, QPH, HQP, QPF, QPHF, QFP, QE, QEH
SQUARE D: SERIES HOM (100A Maximum)
CH/WESTINGHOUSE: SERIES BD, BR, BQ, GFC (All 100A Maximum)
MURRAY: TYPE MP
