Product Description
+−
Features
Features
- Raintight and Bug Proof
- Easy access flanged cover
- POP-FAST™ 3/4 Inch Knockout Design
- Fast installation with 3 openings

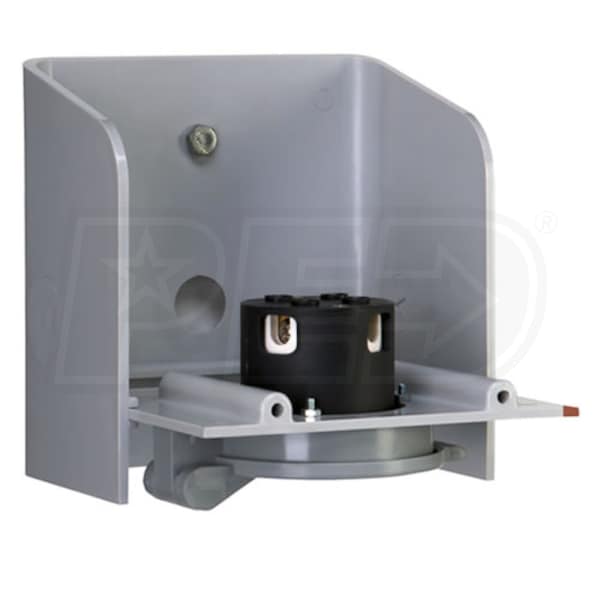

- Slide-Out Base
- 360 degree rotation for quick terminal connections
- Large 103 cu/in interior area for heavy duty wiring
- Nema 3R Enclosure
- Indoor and outdoor rated
- High impact construction
- UL Listed
- UV stabilized ABS construction
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Consumer Warranty
2 Years
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.375 Inches
UPC
815181010720
Plugs
CS6369 - 50-Amp Twistlock
1
Features
Features
- Raintight and Bug Proof
- Easy access flanged cover
- POP-FAST™ 3/4 Inch Knockout Design
- Fast installation with 3 openings
- Slide-Out Base
- 360 degree rotation for quick terminal connections
- Large 103 cu/in interior area for heavy duty wiring
- Nema 3R Enclosure
- Indoor and outdoor rated
- High impact construction
- UL Listed
- UV stabilized ABS construction
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Consumer Warranty
2 Years
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.375 Inches
UPC
815181010720
Plugs
CS6369 - 50-Amp Twistlock
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
2.5 Pounds
Consumer Warranty
2 Years
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.375 Inches
UPC
815181010720
Plugs
CS6369 - 50-Amp Twistlock
1
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Is the outlet al/cu rated?
Scott Rogers
from New Jersey
February 08, 2014
Answer
No. the Reliance Controls products are only intended for use with copper conductors.
Was this answer helpful?
Yes
0
No
1
+−
What 50 amp plug would you recommend for inlet box PBN50?
Bob Hazen
from New Jersey
March 06, 2013
Answer
The following cord end would be the correct item to work with the PBN50...
Generac Model 6331 - 50A Cord End
Generac Model 6331 - 50A Cord End
Was this answer helpful?
Yes
1
No
0
+−
Looking for a female wall plug for portable Gen. I was wondering if the one, Model PBN50 is a female or male,??
Harley Back
from Ohio
July 19, 2012
Answer

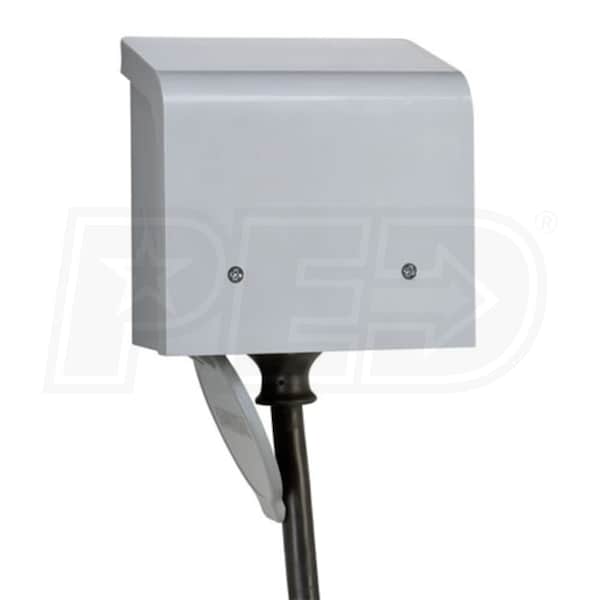

The fitting within this fixture would be of male orientation. It is designed to mate with a 50 amp twist-lock power cord. Be sure to size your inlet box with the appropriate plug connection based on the amp rating.
Was this answer helpful?
Yes
1
No
0
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Jared
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jared G.
Manuals
+−
+
Ask Jared, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

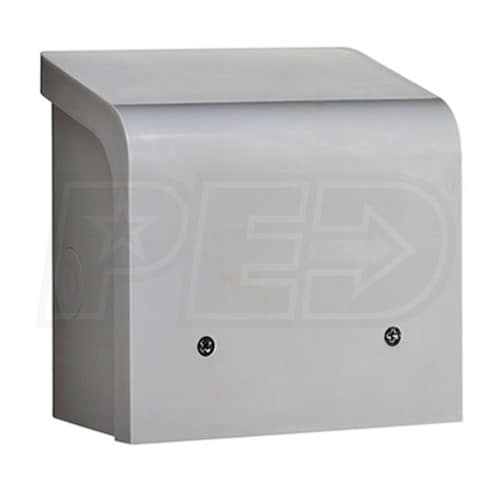

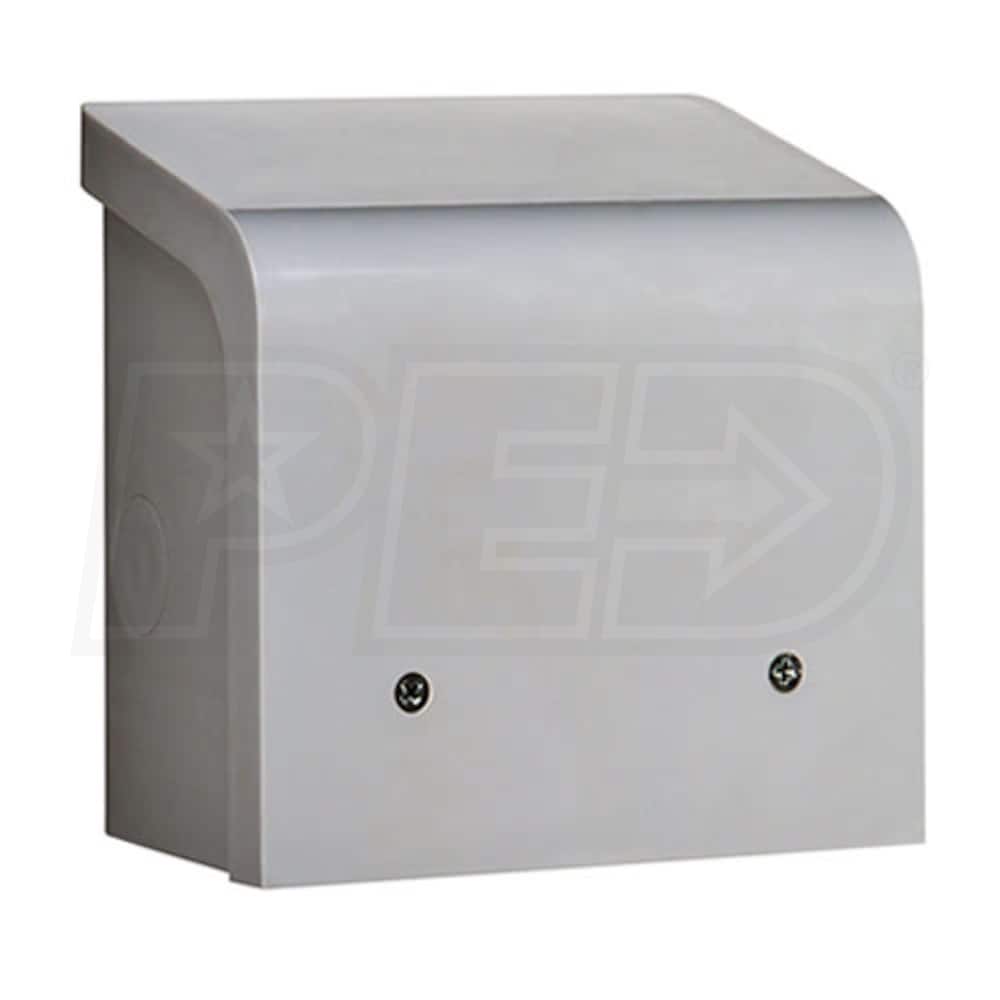

Reliance Controls 50-Amp Power Inlet Box (Non-Metallic)
×
