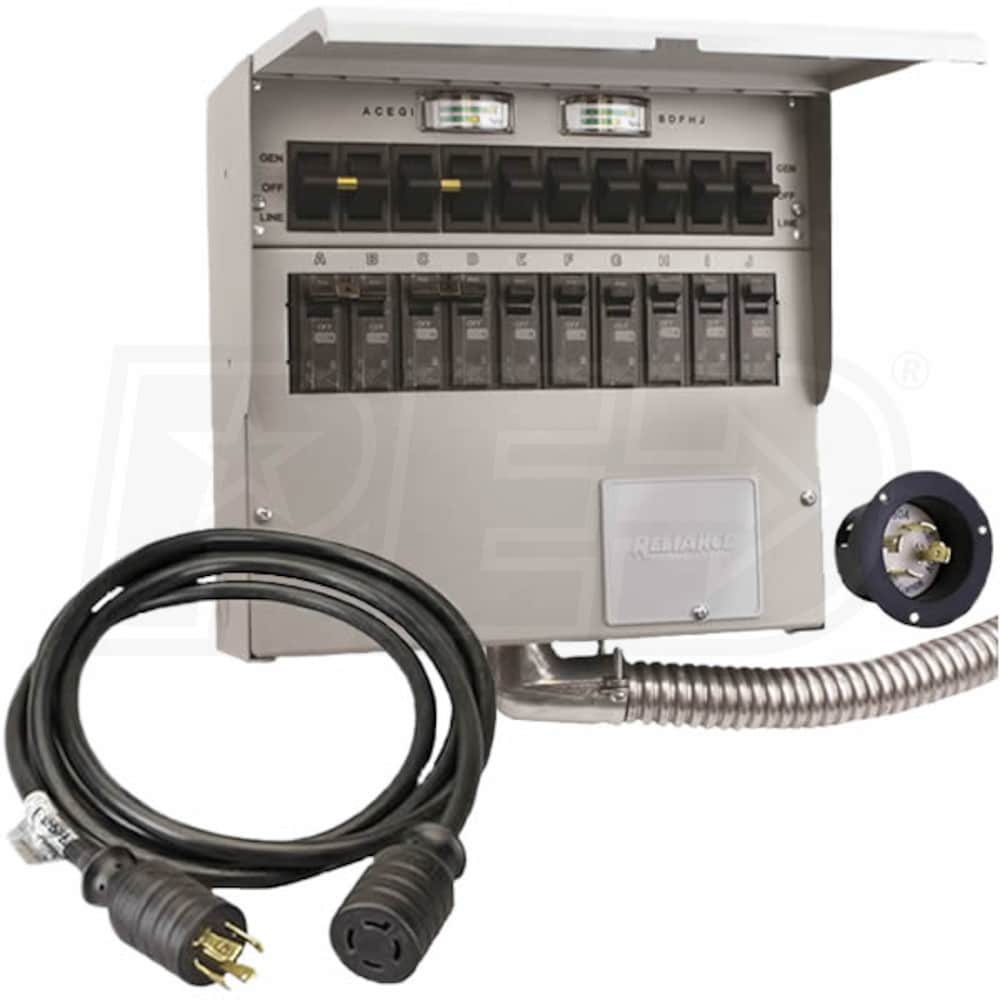

Reliance Controls Pro/Tran 2 - 30-Amp (10-Circuit) Power Transfer Switch Kit w/ 25' Cord

Close
Reliance Controls Electric Generators and Accessories
Model: 310AK
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Friday, Oct 20th

Estimate Arrival
$359.00

StoreShippingPriceShop

In-Stock
$359.00
No Sales Tax*
(Except IL)
Buy

$359.00
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • 4
    Reviews
  • Articles
  • Shipping
  • Accessories
Reliance 30-Amp 10-Circuit Power Transfer Kit
Provides what you need to power hardwired circuts in your home

Safest Way to Distribute Power
Eliminates dangerous backfeeds and electrical overloads

Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
The next generation of Loadside™ manual transfer switches

NEW Color-Coded Built-In Wattage Meter
Helps you balance and manager generator load

(10) Total Circuits (1" Interchangable Style)
10 Single-Pole Circuits or 5 Double-Pole Circuits

Versatile Connection
Allows hardwiring OR plug-in connection via power inlet (Included)

Powder-Coated Steel Cabinet For Indoor Installation
18" Flexible conduit w/ all factory wires clearly marked/colored
(6) Combination 1/2" & 3/4" knockouts for easier installation

25' 30-Amp (L14-30) Generator Power Cord
Heavy-Duty, rubber molded design rated up to 7500w @ 240V

Safety & Certifications
Certified to UL Stanard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70

5-Year Limited Warranty
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 @ 240 Volts (Single Phase) Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Overview
Made in USA
Yes
Weight
25 Pounds
Product Length
13.75 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
815181012069
Model
310AK
Download Documents


Outlets
NEMA L14-30R
Need Help? Call Our Experts.
View Accessories For This Product
Read Reviews
How To Library
Expedited Shipping
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Mike about the Reliance Controls 310AK. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Mike about this item. Sorry, do not submit repair related questions.

Reliance Controls 310AK Reviews & Ratings
Overall Rating
Features
4/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Pros
High Quality (1)
Fast (1)
Easy To Use (1)
Features (1)
Cons
None to display.
75% of respondents would recommend this product to a friend
4 Reviews  Sort by

Jack N.
Johns Island, SC
Purchased from Electric Generators Direct
Purchased 8/21/17
Most Helpful Positive Review
REVIEWED
SEP.
11
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Easy To Install
Just hooked this up. Tested it and worked perfectly. Just had Irma hit us in Charleston but never lost power so I didn't have a chance to try it for real instead of testing.
Jack Recommends This Reliance Controls Product
Was this review helpful?
00
Joseph C.
Port St. Lucie, FL
Purchased from Electric Generators Direct
Purchased 4/10/17
REVIEWED
MAY.
01
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Great Product. Great Distributor.
Didn't come with Generator flip down receptacle cover this time ???? Previous orders did?
Pros: Features, Easy To Use, Fast, High Quality
Joseph Recommends This Reliance Controls Product
Mike, the Generator Expert
Product Expert
Joseph,
This model never came with a flip-down receptacle cover. Only the models with a separate power inlet box come with flip-down receptacle cover.
more
Was this review helpful?
23
Joshua D.
Skiatook, OK
Purchased from Electric Generators Direct
Purchased 9/10/15
Total Reviews
3 Reviews
Total Helpful Votes
24 Helpful Votes
REVIEWED
OCT.
04
2015
4 out of 54 out of 54 out of 54 out of 54 out of 5
Love The Transfer Switch, Cord And Plug Not So Much
I bought this transfer switch along with a flush mount kit to use with the Firman RD9000E generator. The box is pretty solid, and is well built. The wires are labeled nice and neatly and it was extremely easy to wire into my fuse panel. With that being said it was a big pain in the you know what to mount it flush with my wall. The issue is there is a tab on top of the box you use to mount it normally and this tab makes it so you have to cut a bigger hole in your sheet rock then needs to be.
more
Joshua Does Not Recommend This Product
Was this review helpful?
91
Timothy S.
Tomball, TX
Purchased from Electric Generators Direct
Purchased 7/14/16
REVIEWED
AUG.
14
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Easy Installation
The transfer switch was easy to install (1.5 hours) the instructions are clear and all the wires are labeled.
Timothy Recommends This Reliance Controls Product
Was this review helpful?
01
