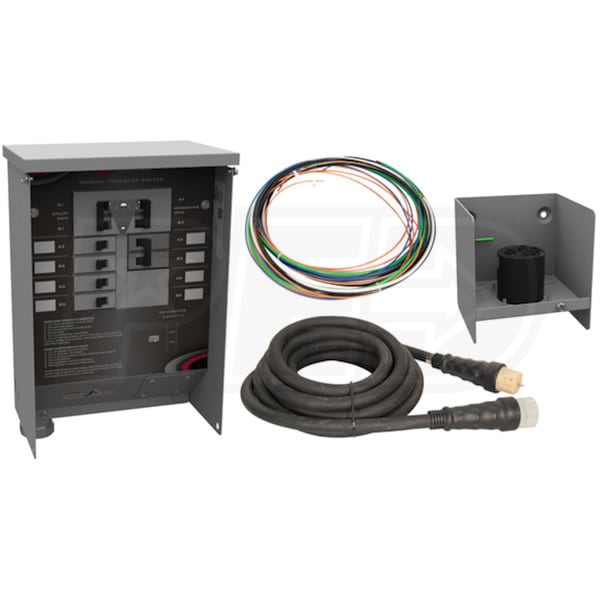

Milbank MMTS501SYSX2C - 50-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 25' Cord

Milbank MMTS501SYSX2C - 50-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 25' Cord
Our Price
Compare Prices
Shipping Info
Model: MMTS501SYSX2C
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Milbank 50-Amp 120/240V 6-Circuit Power Transfer System
  • A safe way to distribute power to hardwired circuits in your home
  • Manual Transfer Switch For 6-8 Circuits w/ 50A NEMA CS6375 Inlet
  • Works with any portable generator up to 12500 watts
  • 50-Amp Outdoor Power Inlet Box Twistlock (Male) - Simplifies Install
  • Mounts on exterior wall; Keeps switch closer to main panel

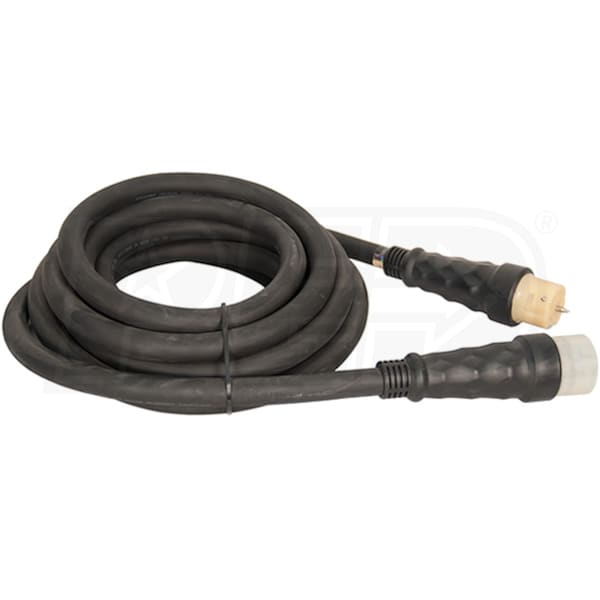

  • 25' 50-Amp Twistlock 6-Gauge Power Cord w/ CS6365/CS6364 Ends
  • Allows you to plug generator directly into power inlet box (PIB)
  • Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breakers
  • Prevents generator & utility power running at the same time
  • Exclusive LED Digital Meter
  • Illuminated & easy-to-read real-time generator output
  • Helps determine available circuit loads for easy monitoring
  • *Learn Function* Helps Prevent Generator Overload
  • Memorizes gen's capacity & provides accurate power usage info
  • Provides added safety when manually controlling individual loads
  • Includes 6 Total Circuits (Expands up to 8) w/ Wiring Harness
  • (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 50-Amp 2-Pole
  • Max Amps 50 @ 240V - UL Listed
  • 4-Year Limited Warranty
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Twistlock
Wire Gauge
6 Gauge
Overview
Weight
51 Pounds
Consumer Warranty
4 Years
UPC
784572714748


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Milbank 50-Amp 120/240V 6-Circuit Power Transfer System
  • A safe way to distribute power to hardwired circuits in your home
  • Manual Transfer Switch For 6-8 Circuits w/ 50A NEMA CS6375 Inlet
  • Works with any portable generator up to 12500 watts
  • 50-Amp Outdoor Power Inlet Box Twistlock (Male) - Simplifies Install
  • Mounts on exterior wall; Keeps switch closer to main panel
  • 25' 50-Amp Twistlock 6-Gauge Power Cord w/ CS6365/CS6364 Ends
  • Allows you to plug generator directly into power inlet box (PIB)
  • Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breakers
  • Prevents generator & utility power running at the same time
  • Exclusive LED Digital Meter
  • Illuminated & easy-to-read real-time generator output
  • Helps determine available circuit loads for easy monitoring
  • *Learn Function* Helps Prevent Generator Overload
  • Memorizes gen's capacity & provides accurate power usage info
  • Provides added safety when manually controlling individual loads
  • Includes 6 Total Circuits (Expands up to 8) w/ Wiring Harness
  • (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 50-Amp 2-Pole
  • Max Amps 50 @ 240V - UL Listed
  • 4-Year Limited Warranty
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Twistlock
Wire Gauge
6 Gauge
Overview
Weight
51 Pounds
Consumer Warranty
4 Years
UPC
784572714748
Product Specs
+
Specifications
Plugs
CS6369 (50-Amp Twistlock)
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Twistlock
Wire Gauge
6 Gauge
Overview
Weight
51 Pounds
Consumer Warranty
4 Years
UPC
784572714748
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
What kind of breakers will I need to buy in addition to your control panel?
Stephen L.
from Missouri
April 26, 2018
Answer
The breakers are not brand specific and are going to require 1" breakers. The most commonly used seemed to have been the Cutler-Hammer, Square D, and Siemens breakers. But, again are not brand specific but need to be in the 1" breaker size, which is most common.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
