Milbank MMTS501SYSL - 50-Amp (120/240V 6-Circuit) Outdoor Manual Transfer Switch w/ Inlet

• Product Description
• Specs
• 1
  Reviews
• 1
  Product Q&A
• Recommended Accessories
• How-To Articles
• Manuals

Type

Amp Rating

Circuits

6

Enclosure

Type

Manual

Amp Rating

50

Circuits

6

Enclosure

NEMA 3R

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features

Features

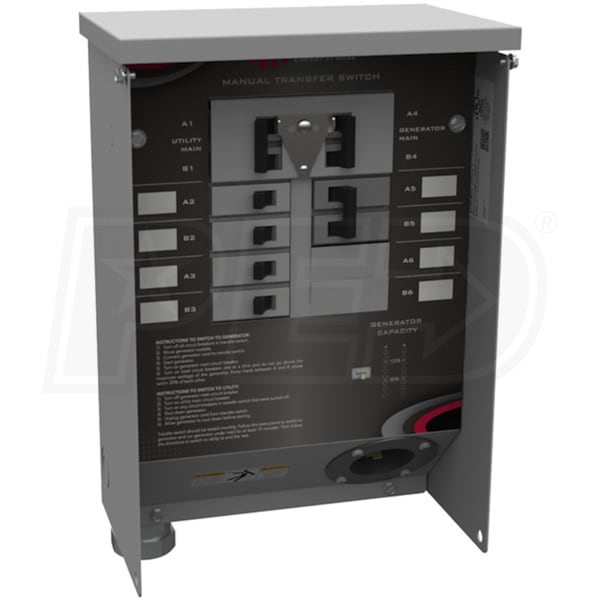

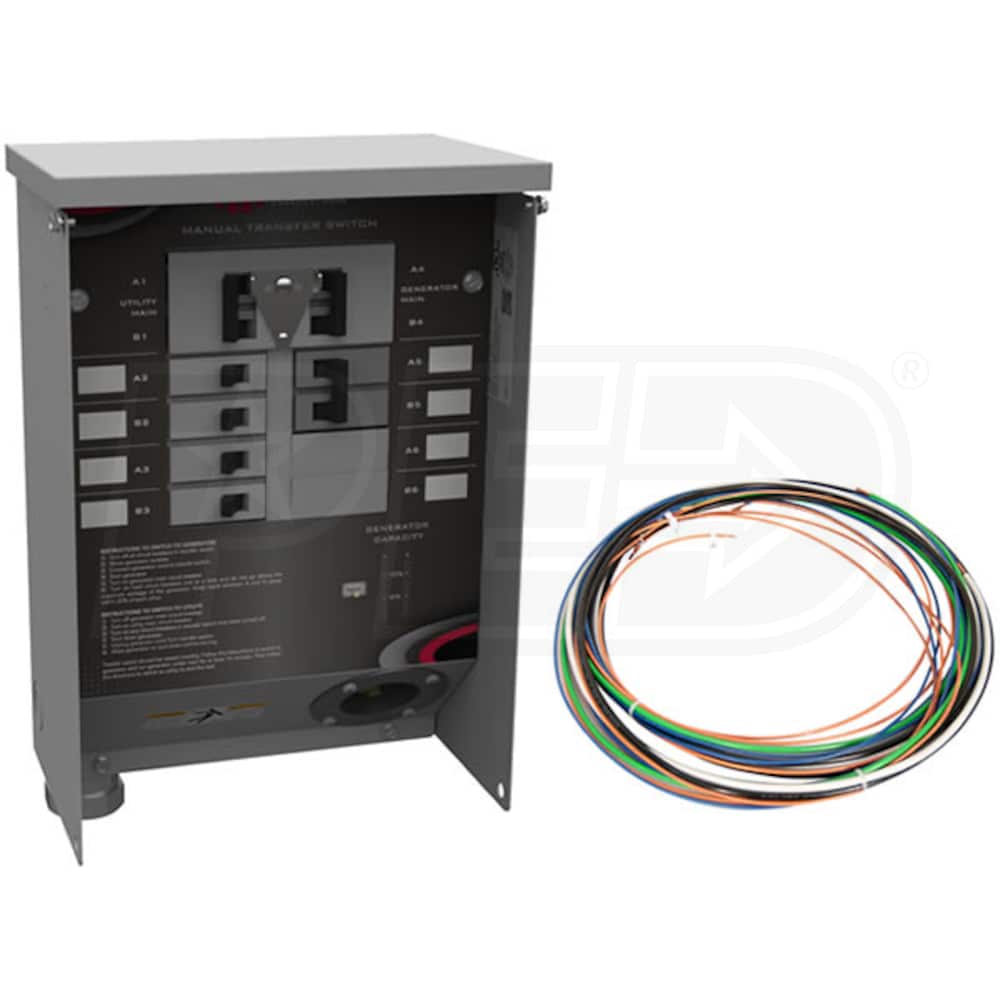

• Milbank 50-Amp 120/240V 6-Circuit Manual Transfer Switch
• A safe way to distribute power to hardwired circuits in your home
• Manual Transfer Switch For 6-8 Circuits w/ 50A NEMA CS6375 Inlet
• Saves on installation time/cost & perfect when space is limited
• Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breakers
• Prevents generator & utility power running at the same time
• Exclusive LED Digital Meter
• Illuminated & easy-to-read real-time generator output
• Helps determine available circuit loads for easy monitoring
• *Learn Function* Helps Prevent Generator Overload
• Memorizes gen's capacity & provides accurate power usage info
• Provides added safety when manually controlling individual loads

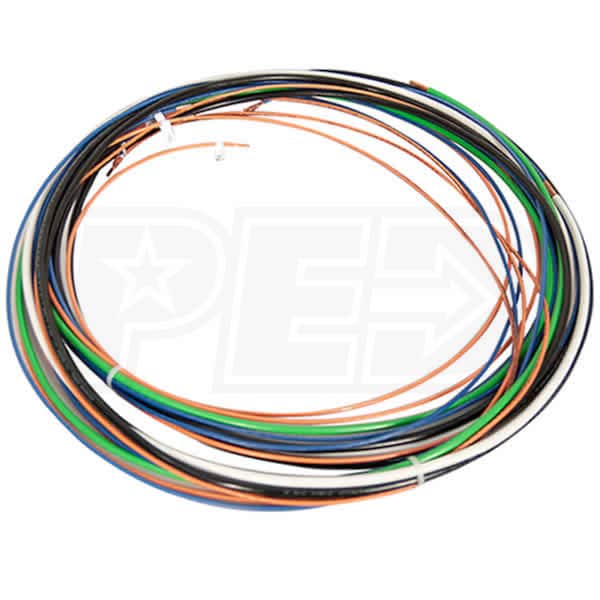

• 6 Total Circuits (Expands 8) w/ Wiring Harness Included
• (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 50-Amp 2-Pole
• NEMA 3R Outdoor Aluminum Enclosure
• Durable corrosion and rust resistant exterior
• Requires Cord For Connection (Sold Separately)
• Allows you to plug generator directly into inlet on MTS
• Max Amps 50 @ 240V - UL Listed
• 4-Year Limited Warranty

Specifications

Plugs

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

12500 Watts

Rated Amps

50 Amps

Enclosure

NEMA 3R

Number of Circuit Breakers

6

Max Utility Input

100 Amps

Max Generator Input

50 Amps

Maximum Wattage

12500 Watts

UL Listed

Yes

Transfer Switch Circuits

15A 120V

2

20A 120V

2

50A 240V

1

Circuit Breaker Protection

Each Circuit

Plugs

CS6369 - 50-Amp Twistlock

1

Overview

Weight

28 Pounds

Consumer Warranty

4 Years

UPC

784572714786

Type

Amp Rating

Circuits

6

Enclosure

Type

Manual

Amp Rating

50

Circuits

6

Enclosure

NEMA 3R

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features

Features

• Milbank 50-Amp 120/240V 6-Circuit Manual Transfer Switch
• A safe way to distribute power to hardwired circuits in your home
• Manual Transfer Switch For 6-8 Circuits w/ 50A NEMA CS6375 Inlet
• Saves on installation time/cost & perfect when space is limited
• Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breakers
• Prevents generator & utility power running at the same time
• Exclusive LED Digital Meter
• Illuminated & easy-to-read real-time generator output
• Helps determine available circuit loads for easy monitoring
• *Learn Function* Helps Prevent Generator Overload
• Memorizes gen's capacity & provides accurate power usage info
• Provides added safety when manually controlling individual loads
• 6 Total Circuits (Expands 8) w/ Wiring Harness Included
• (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 50-Amp 2-Pole
• NEMA 3R Outdoor Aluminum Enclosure
• Durable corrosion and rust resistant exterior
• Requires Cord For Connection (Sold Separately)
• Allows you to plug generator directly into inlet on MTS
• Max Amps 50 @ 240V - UL Listed
• 4-Year Limited Warranty

Specifications

Plugs

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

12500 Watts

Rated Amps

50 Amps

Enclosure

NEMA 3R

Number of Circuit Breakers

6

Max Utility Input

100 Amps

Max Generator Input

50 Amps

Maximum Wattage

12500 Watts

UL Listed

Yes

Transfer Switch Circuits

15A 120V

2

20A 120V

2

50A 240V

1

Circuit Breaker Protection

Each Circuit

Plugs

CS6369 - 50-Amp Twistlock

1

Overview

Weight

28 Pounds

Consumer Warranty

4 Years

UPC

784572714786

Specifications

Plugs

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

12500 Watts

Rated Amps

50 Amps

Enclosure

NEMA 3R

Number of Circuit Breakers

6

Max Utility Input

100 Amps

Max Generator Input

50 Amps

Maximum Wattage

12500 Watts

UL Listed

Yes

Transfer Switch Circuits

15A 120V

2

20A 120V

2

50A 240V

1

Circuit Breaker Protection

Each Circuit

Plugs

CS6369 - 50-Amp Twistlock

1

Overview

Weight

28 Pounds

Consumer Warranty

4 Years

UPC

784572714786

Reviews

(1)

+−

Search Product Q&A's Answered by Jared, the Generator Expert

+−

What kind of breakers will I need to buy in addition to your control panel?

Stephen L.

from Missouri

April 26, 2018

Answer

The breakers are not brand specific and are going to require 1" breakers. The most commonly used seemed to have been the Cutler-Hammer, Square D, and Siemens breakers. But, again are not brand specific but need to be in the 1" breaker size, which is most common.
