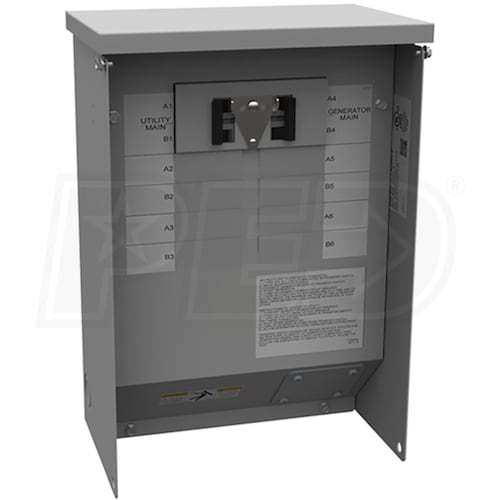

Milbank MMTS501 - 100-Amp Utility/50-Amp Generator (120/240V) Outdoor Transfer Panel

Milbank MMTS501 - 100-Amp Utility/50-Amp Generator (120/240V) Outdoor Transfer Panel
Model: MMTS501
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Milbank 50-Amp 120/240V Outdoor Transfer Panel
  • A basic transfer solution, that you can finish to your specs
  • Easily Switch Between A Portable Generator & Utility Power
  • Prevents sending 240V current to a 120V circuit
  • Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breaker
  • Prevents generator & utility power running at the same time
  • Max Amps 50 @ 240V
  • Built-In Load Center (Breakers Not Included)
  • Can accommodate up to (8) 120V 1-Inch Breakers
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • 4-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714861
Features
Features
  • Milbank 50-Amp 120/240V Outdoor Transfer Panel
  • A basic transfer solution, that you can finish to your specs
  • Easily Switch Between A Portable Generator & Utility Power
  • Prevents sending 240V current to a 120V circuit
  • Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breaker
  • Prevents generator & utility power running at the same time
  • Max Amps 50 @ 240V
  • Built-In Load Center (Breakers Not Included)
  • Can accommodate up to (8) 120V 1-Inch Breakers
  • NEMA 3R Outdoor Aluminum Enclosure
  • Durable corrosion and rust resistant exterior
  • Flexible Connection
  • Hardwire to you generator or power inlet box (Not Included)
  • 4-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714861
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714861
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
What kind of breakers will I need to buy in addition to your control panel?
Stephen L.
from Missouri
April 26, 2018
Answer
The breakers are not brand specific and are going to require 1" breakers. The most commonly used seemed to have been the Cutler-Hammer, Square D, and Siemens breakers. But, again are not brand specific but need to be in the 1" breaker size, which is most common.
