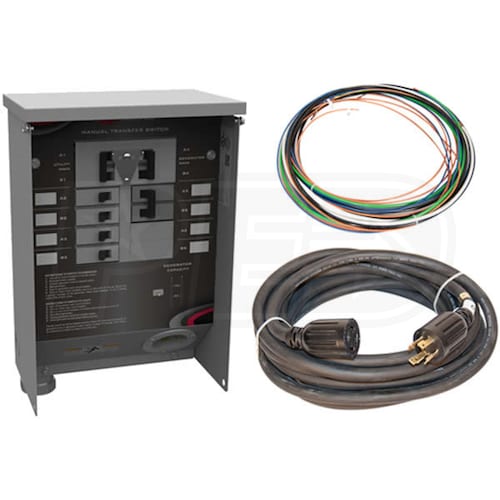

Milbank MMTS301SYSL2C - 30-Amp (6-Circuit) Power Transfer Switch System w/ 25' Cord
Milbank MMTS301SYSL2C - 30-Amp (6-Circuit) Power Transfer Switch System w/ 25' Cord
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Milbank 30-Amp 120/240V 6-Circuit Power Transfer System
- A safe way to distribute power to hardwired circuits in your home

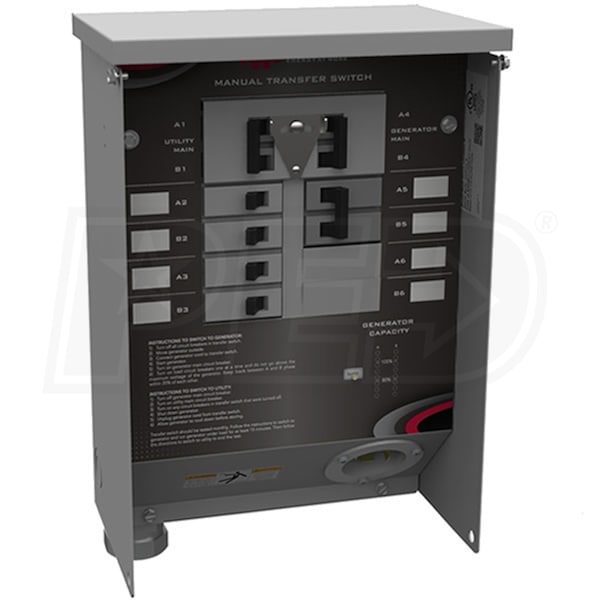

- Manual Transfer Switch For 6-8 Circuits w/ L14-30 Inlet
- Works with any portable generator up to 7500 watts

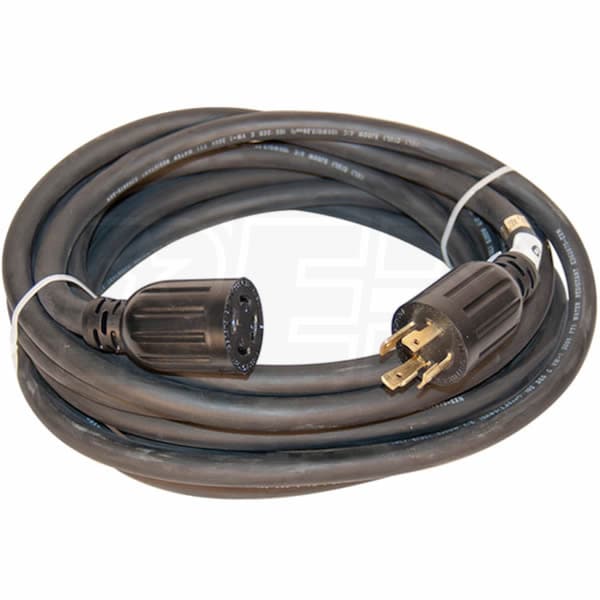

- 25' 30-Amp (4-Prong / L14-30) Power Cord
- Allows you to plug generator directly into inlet on MTS
- Interlock Assembly w/ 60-Amp Utilty & 30-Amp Gen. Breakers
- Prevents generator & utility power running at the same time
- Exclusive LED Digital Meter
- Illuminated & easy-to-read real-time generator output
- Helps determine available circuit loads for easy monitoring
- *Learn Function* Helps Prevent Generator Overload
- Memorizes gen's capacity & provides accurate power usage info
- Provides added safety when manually controlling individual loads

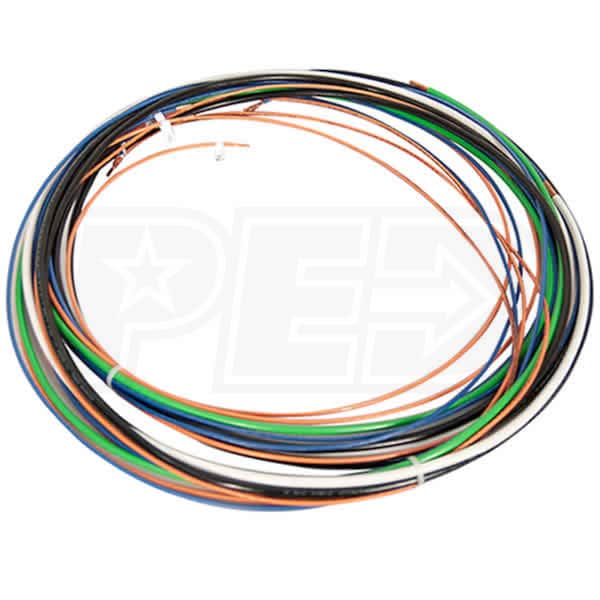

- Includes 6 Total Circuits (Expands 8) w/ Wiring Harness
- (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 30-Amp 2-Pole
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- Max Amps 30 @ 240V - UL Listed
- 4-Year Limited Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
33 Pounds
Consumer Warranty
4 Years
UPC
784572714816
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Milbank 30-Amp 120/240V 6-Circuit Power Transfer System
- A safe way to distribute power to hardwired circuits in your home
- Manual Transfer Switch For 6-8 Circuits w/ L14-30 Inlet
- Works with any portable generator up to 7500 watts
- 25' 30-Amp (4-Prong / L14-30) Power Cord
- Allows you to plug generator directly into inlet on MTS
- Interlock Assembly w/ 60-Amp Utilty & 30-Amp Gen. Breakers
- Prevents generator & utility power running at the same time
- Exclusive LED Digital Meter
- Illuminated & easy-to-read real-time generator output
- Helps determine available circuit loads for easy monitoring
- *Learn Function* Helps Prevent Generator Overload
- Memorizes gen's capacity & provides accurate power usage info
- Provides added safety when manually controlling individual loads
- Includes 6 Total Circuits (Expands 8) w/ Wiring Harness
- (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 30-Amp 2-Pole
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- Max Amps 30 @ 240V - UL Listed
- 4-Year Limited Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
33 Pounds
Consumer Warranty
4 Years
UPC
784572714816
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
33 Pounds
Consumer Warranty
4 Years
UPC
784572714816
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What kind of breakers will I need to buy in addition to your control panel?
Stephen L.
from Missouri
April 26, 2018
Answer
The breakers are not brand specific and are going to require 1" breakers. The most commonly used seemed to have been the Cutler-Hammer, Square D, and Siemens breakers. But, again are not brand specific but need to be in the 1" breaker size, which is most common.
