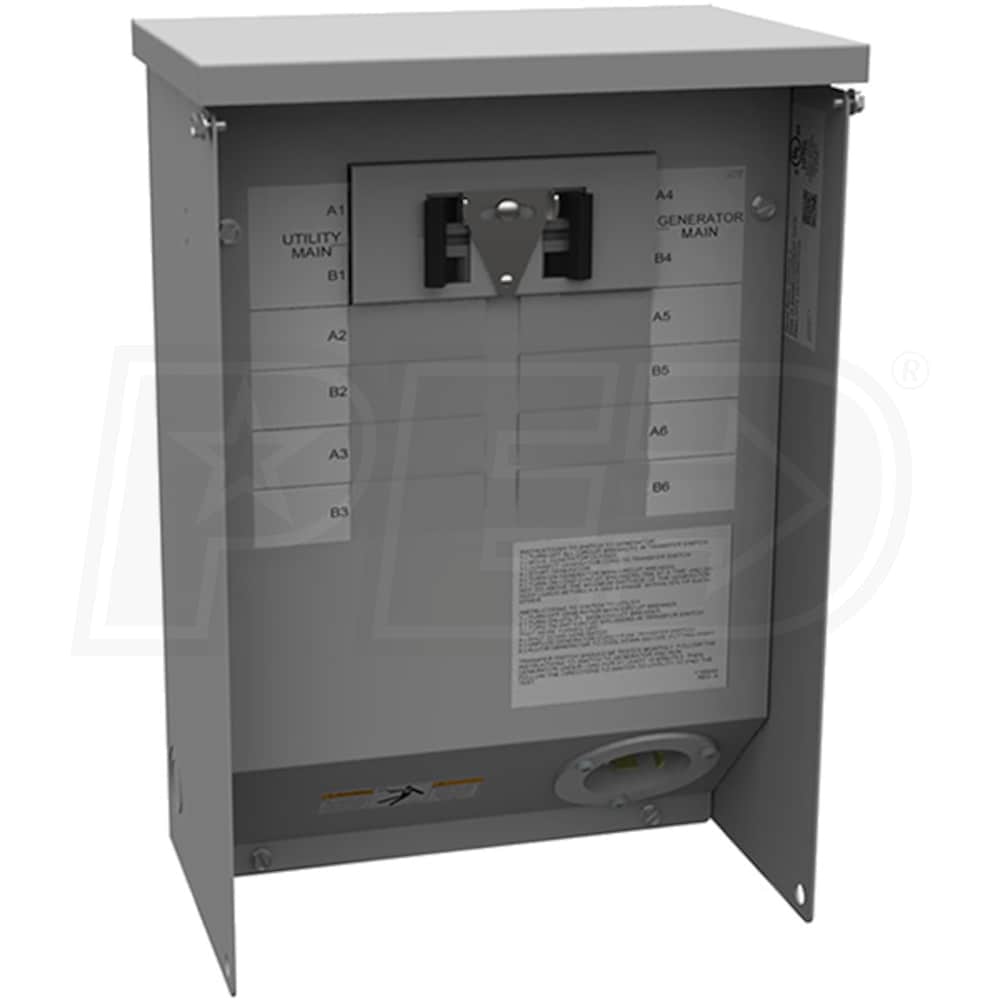

Milbank MMTS301L - 60-Amp Utility/30-Amp Generator (120/240V) Outdoor Transfer Panel w/ 30A Inlet
Model: MMTS301L
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Milbank 30-Amp 120/240V Outdoor Transfer Panel
- A basic transfer solution, that you can finish to your specs
- Pre-Installed 30-Amp (L14-30) Inlet
- Saves on installation time/cost & perfect when space is limited
- Easily Switch Between A Portable Generator & Utility Power
- Prevents sending 240V current to a 120V circuit
- Interlock Assembly w/ 60-Amp Utility & 30-Amp Gen. Breaker
- Prevents generator & utility power running at the same time
- Max Amps 30 @ 240V
- Built-In Load Center (Breakers Not Included)
- Can accommodate up to (8) 120V 1-Inch Breakers
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- 4-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Generator Input
7500 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714878
Features
Features
- Milbank 30-Amp 120/240V Outdoor Transfer Panel
- A basic transfer solution, that you can finish to your specs
- Pre-Installed 30-Amp (L14-30) Inlet
- Saves on installation time/cost & perfect when space is limited
- Easily Switch Between A Portable Generator & Utility Power
- Prevents sending 240V current to a 120V circuit
- Interlock Assembly w/ 60-Amp Utility & 30-Amp Gen. Breaker
- Prevents generator & utility power running at the same time
- Max Amps 30 @ 240V
- Built-In Load Center (Breakers Not Included)
- Can accommodate up to (8) 120V 1-Inch Breakers
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- 4-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Generator Input
7500 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714878
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
8
Max Generator Input
7500 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
4 Years
UPC
784572714878
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What kind of breakers will I need to buy in addition to your control panel?
Stephen L.
from Missouri
April 26, 2018
Answer
The breakers are not brand specific and are going to require 1" breakers. The most commonly used seemed to have been the Cutler-Hammer, Square D, and Siemens breakers. But, again are not brand specific but need to be in the 1" breaker size, which is most common.
