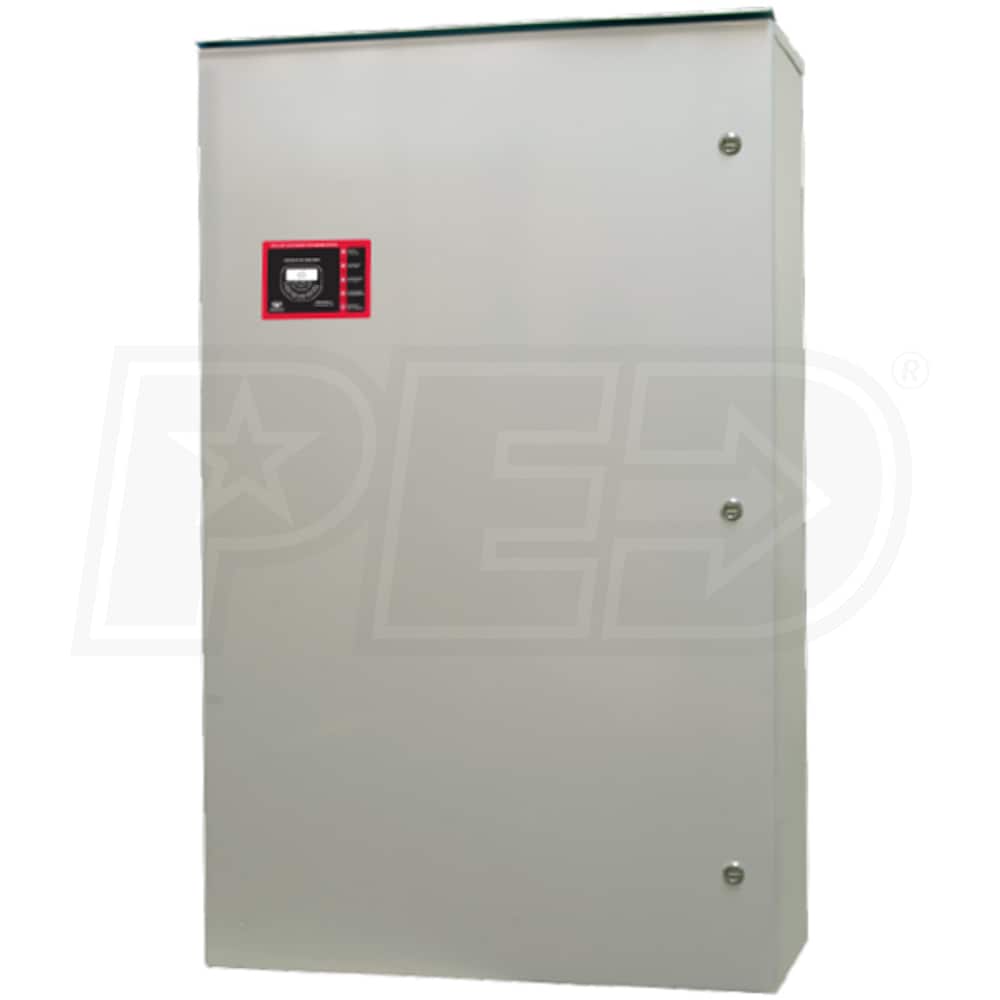

Milbank Vigilant Series 1250-Amp Outdoor Automatic Transfer Switch (277/480V)

Model:

MGVATS12501480

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Milbank Vigilant Series 1250-Amp Outdoor Automatic Transfer Switch (277/480V)
Milbank Vigilant Series 1250-Amp Outdoor Automatic Transfer Switch (277/480V)
Model: MGVATS12501480
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Standard

Amp Rating

1250

Load Mgmt.

Enclosure

NEMA 3R


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 1250-Amp Vigilant Series Outdoor ATS (277/480V)
  • Only compatible w/ 277/480V 3-Phase service
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized NEMA 3 Outdoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start

Specifications

MGVATS12501480
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
1250 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Generator Input
1250 Amps
UL Listed
Yes
Overview
Weight
542 Pounds
Consumer Warranty
5 Years
Product Length
60 Inches
Product Width
36 Inches
Product Height
25 Inches
UPC
78457269536
