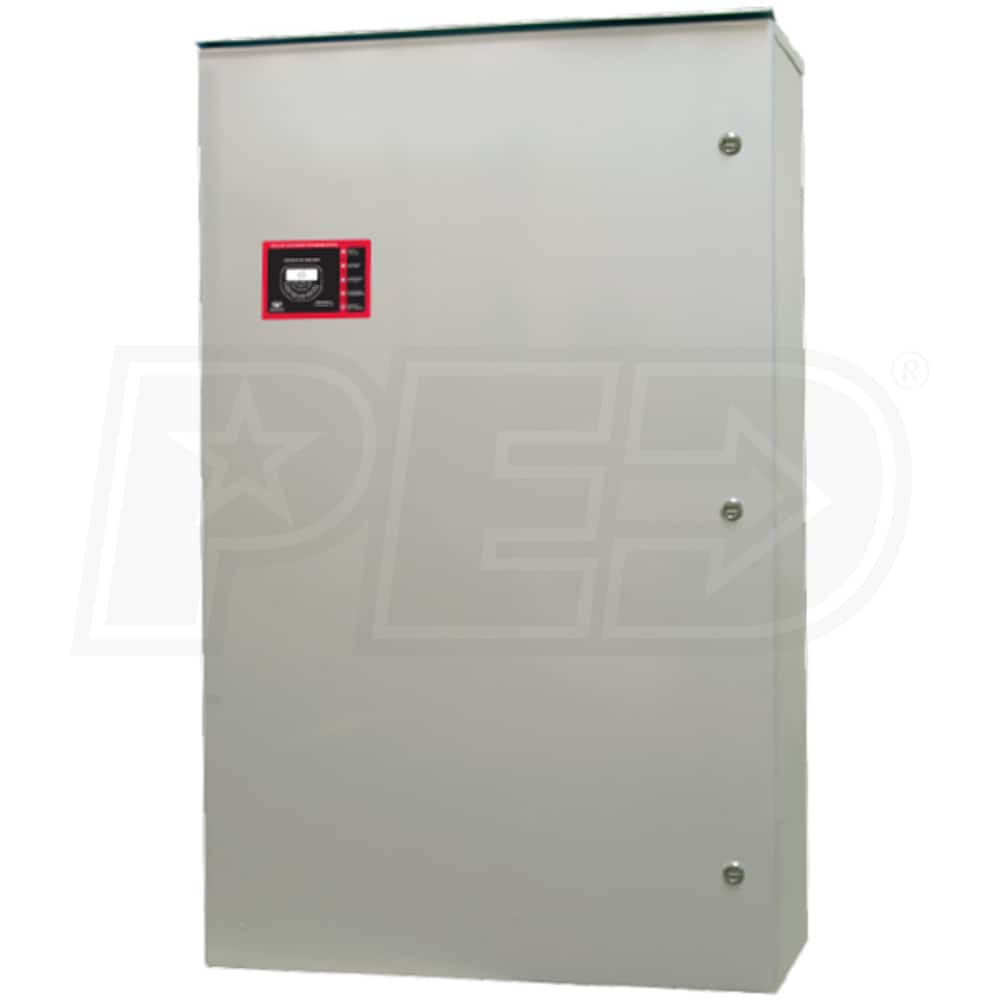

Milbank Vigilant Series 1000-Amp Outdoor Automatic Transfer Switch (277/480V)

Model:

MGVATS10001480

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Milbank Vigilant Series 1000-Amp Outdoor Automatic Transfer Switch (277/480V)
Milbank Vigilant Series 1000-Amp Outdoor Automatic Transfer Switch (277/480V)
Model: MGVATS10001480
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

1000

Load Mgmt.

Voltage

277/480 Three-Phase

Enclosure

NEMA 3R



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 1000-Amp Vigilant Series Outdoor ATS (277/480V)
  • Only compatible w/ 277/480V 3-Phase service
  • Double Throw, Mechanically Interlocked Switch
  • Provides a rugged, contractor design for reliable switching
  • VTSC100 Logic Controller Board w/ Internal Test Switch
  • Designed to provide all basic transfer switch control functions
  • VTSC100 Controller Features
  • Powered from genset battery for isolation against line transients
  • Integrated voltage and frequency sensing
  • Adjustable transfer delays using on-board potentiometers
  • Fused remote start contact relays
  • Adjustable drop-out & pick-up values for voltage and frequency
  • Galvanized NEMA 3 Outdoor Enclosure
  • Provides 2x the life span of regular steel enclosures
  • Conformally Coated Controller Board
  • An effective barrier against moisture, fungus & contaminants
  • Operator Interface w/ External Access
  • Easy-to-use, 7-day exerciser, Accessible from outside the switch
  • No need to open the door to adjust clock or view switch status
  • ***2 Wire Start/Remote Start

Specifications

MGVATS10001480
specs product image PID-15349
Overview
Weight
510 Pounds
Consumer Warranty
5 Years
Product Length
60 Inches
Product Width
36 Inches
Product Height
25 Inches
UPC
78457269533
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
1000 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Generator Input
1000 Amps
UL Listed
Yes
