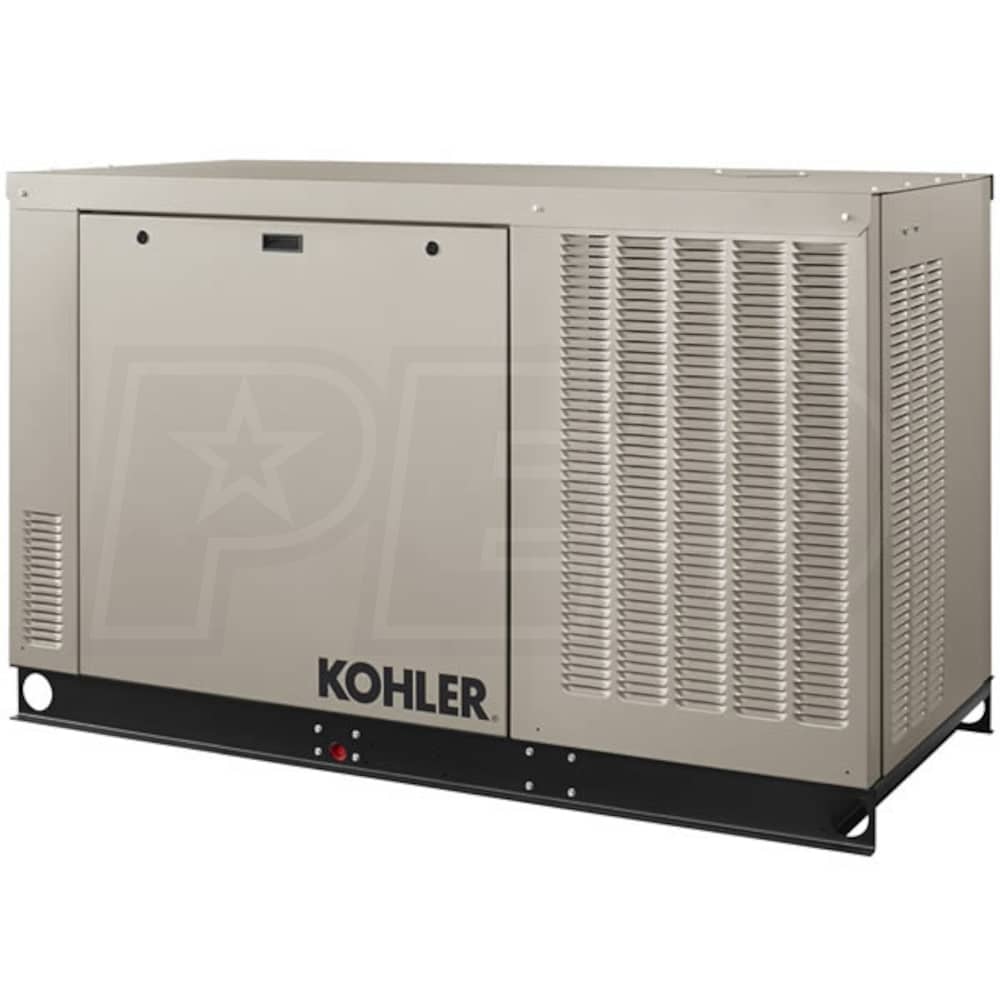

Kohler 38kW Emergency Standby Power Generator (120/208V Three-Phase)

Model:

38RCLB-QS7

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 38kW Emergency Standby Power Generator (120/208V Three-Phase)
Kohler 38kW Emergency Standby Power Generator (120/208V Three-Phase)
Model: 38RCLB-QS7
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

38,000 Rated Watts

Voltage

120/208 Three-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Kohler 38kW Liquid-Cooled Standby Generator
  • For commercial buildings with 120/208V 3-Phase service
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • Brushless-Alternator For High Quality, Cleaner Generator Power
  • Advanced voltage / Hz regulation prevents unstable power
  • Protects sophisticated electronics with ultra-low distortion (THD)
  • RDC2 Digital Controller - Controls Generator & RXT Transfer Switch*
  • Provides advanced control, system monitoring & diagnostics
  • Electronic speed control and digital voltage regulation (DVR)
  • 2-Line Backlit LCD Digital Display
  • Easy to read local data access in all lighting conditions
  • Programmable exerciser for weekly or bi-weekly self-testing
  • 2.2 L Turbocharged Liquid-Cooled Engine (1800 RPM)
  • Runs on clean burning Natural Gas or LP fuel
  • Simple field conversion while maintaining emission certification
  • Sound-Attenuating Aluminum Enclosure & "Quieter" Cooling System
  • Fade, scratch, & corrosion-resistant powder-baked finish
  • Meets 181 MPH wind load rating
  • "Quieter" Cooling System
  • Electronic fan, internal silencer & acoustic insulation
  • Keeps dB under 61 @ 7M (23') during normal operation
  • Standard OnCue® Plus Generator Management Systems
  • Compatible w/ OnCue® Plus Wireless Generator Management Systems
  • Real-time power status and the ability to manage your entire backup system
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • *Requires Automatic Transfer Switch (Sold Separately)
  • ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

38RCLB-QS7
specs product image PID-102522
Overview
Weight
1370 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
74 Inches
Product Width
32.9 Inches
Product Height
46 Inches
UPC
650531402332
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
38000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
38000 Watts
LP Power Capacity
38000 Watts
NG Fuel Consumption @ 50% Load
327 ft³/hr
NG Fuel Consumption @ 100% Load
492 ft³/hr
LP Fuel Consumption @ 50% Load
3.2 gallons/hr
LP Fuel Consumption @ 100% Load
5.6 gallons/hr
Rated Amps
132 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
54 Test (61 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
Grade Type
Emergency
Engine
Engine Brand
Kohler
CC
2200 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
