Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)

Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)
Our Price
Compare Prices
Shipping Info
Model: 20RESC-RXT200-2PRM-KIT
$4,830.00
Only 4 In-Stock
Ships Monday, Dec 17th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Switch Options
Add-Ons
+$99.99

In-Stock Free Shipping$4,830.00Buy Now
$4,830.00Visit Site
Only 4 In-Stock
Ships Monday, Dec 17th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Kohler


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Kohler 20kW Composite Home Standby Generator Kit
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Also includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
  • Designed For standard installation - Requires a sub-panel for overload protection
  • Load Shed Kit - Manage (2) HVAC + (4) Non-Essential loads* (Require PRM Modules)
  • Includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Helps your generator balance additional high electrical loads (Well Pumps, HVAC, etc)
  • Runs on Clean Burning Natural Gas or LPG - Simple Field Conversion
  • While still maintaining emission regulations for U.S. EPA & California
  • Fast Response Time & Powerful Performance w/ PowerBoostâ Technology
  • Kohler® generators restore power in as little as 10 seconds
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft.)
  • DC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Easily view ATS status via LED lights on controller

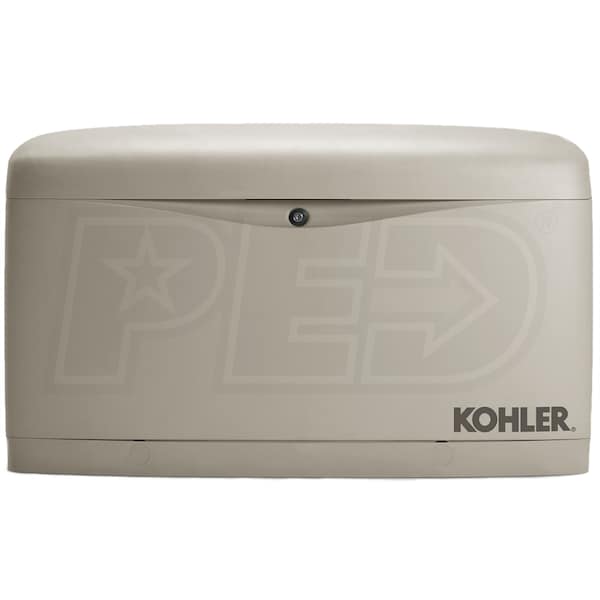

  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments; Impact-resistant down to -30° F.

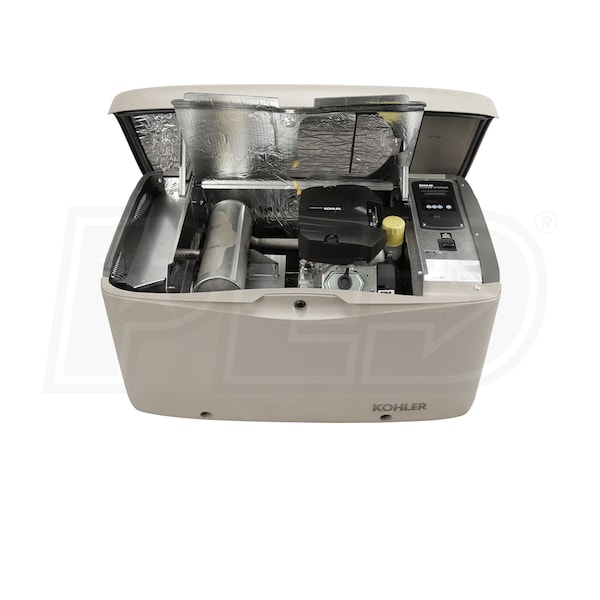

  • Polymer Base Engineered For Easier Installation
  • Fuel and electric connection through enclosure wall, no-more stub-ups
  • Optional OnCue Remote Monitoring System (Sold Separately)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Requires Group 51 Bat. (Not Included)
  • Please See Spec Sheet For All Certifications

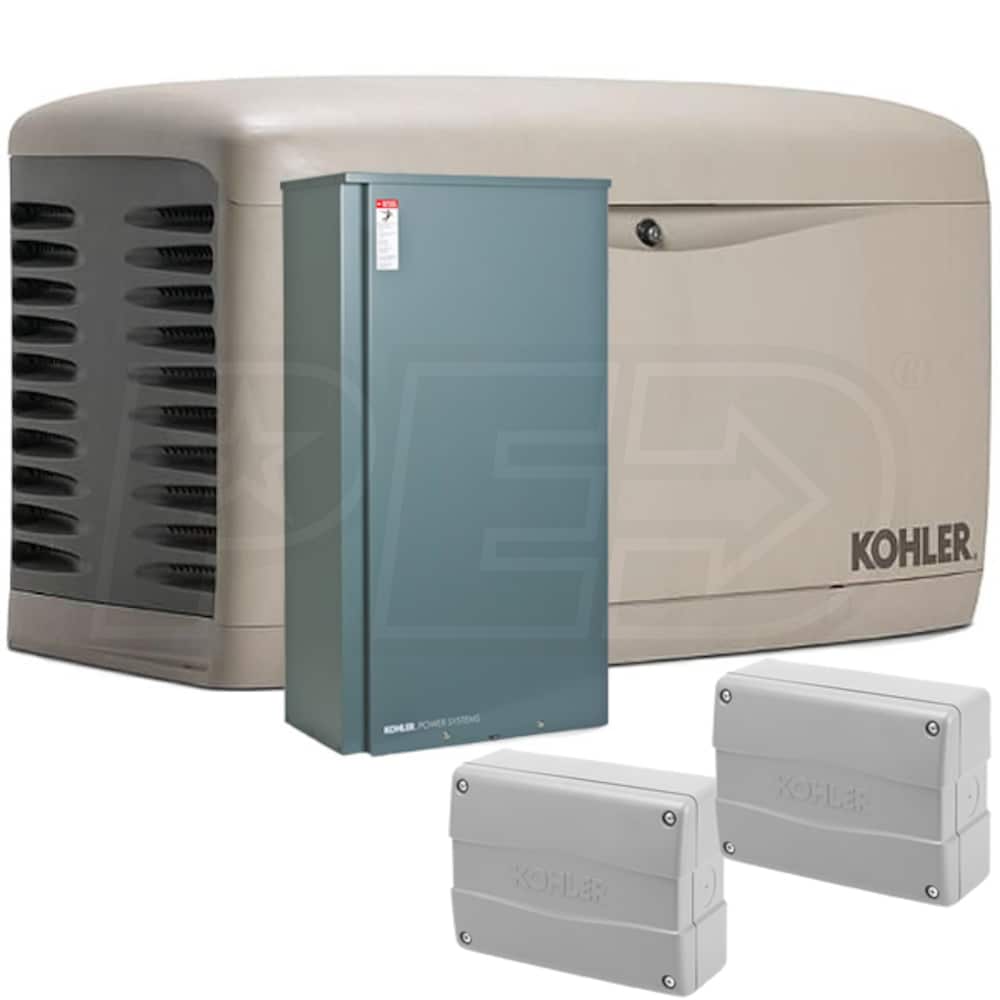

  • Product Includes
    • (1) Kohler 20kW Composite Home Standby Generator (20RESC)
    • (1) Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
    • (2) Kohler 50-Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches (GM92001)
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
20RESC Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
RXT-JFNC-0200A Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
17 Pounds
Product Length
24.4 Inches
Product Width
13.2 Inches
Product Height
7.1 Inches
Consumer Warranty
5 Years
GM92001 Specifications
Overview
Weight
3 Pounds
Product Length
9.2 Inches
Product Width
6.8 Inches
Product Height
3.6 Inches
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Kohler


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Kohler 20kW Composite Home Standby Generator Kit
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Also includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
  • Designed For standard installation - Requires a sub-panel for overload protection
  • Load Shed Kit - Manage (2) HVAC + (4) Non-Essential loads* (Require PRM Modules)
  • Includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Helps your generator balance additional high electrical loads (Well Pumps, HVAC, etc)
  • Runs on Clean Burning Natural Gas or LPG - Simple Field Conversion
  • While still maintaining emission regulations for U.S. EPA & California
  • Fast Response Time & Powerful Performance w/ PowerBoostâ Technology
  • Kohler® generators restore power in as little as 10 seconds
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft.)
  • DC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Easily view ATS status via LED lights on controller
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments; Impact-resistant down to -30° F.
  • Polymer Base Engineered For Easier Installation
  • Fuel and electric connection through enclosure wall, no-more stub-ups
  • Optional OnCue Remote Monitoring System (Sold Separately)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Requires Group 51 Bat. (Not Included)
  • Please See Spec Sheet For All Certifications
  • Product Includes
    • (1) Kohler 20kW Composite Home Standby Generator (20RESC)
    • (1) Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
    • (2) Kohler 50-Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches (GM92001)
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
20RESC Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
RXT-JFNC-0200A Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
17 Pounds
Product Length
24.4 Inches
Product Width
13.2 Inches
Product Height
7.1 Inches
Consumer Warranty
5 Years
GM92001 Specifications
Overview
Weight
3 Pounds
Product Length
9.2 Inches
Product Width
6.8 Inches
Product Height
3.6 Inches
Product Specs
+
Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
20RESC Specifications
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Not Included)
Enclosure
Composite
Battery
Not Included (500 CCA)
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Overview
Made in USA
Yes
Weight
535 Pounds
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
RXT-JFNC-0200A Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
17 Pounds
Product Length
24.4 Inches
Product Width
13.2 Inches
Product Height
7.1 Inches
Consumer Warranty
5 Years
GM92001 Specifications
Overview
Weight
3 Pounds
Product Length
9.2 Inches
Product Width
6.8 Inches
Product Height
3.6 Inches
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
When positioning the generator, how close to an opening in the house wall can it be?
Paul R.
from Virginia
May 10, 2018
Answer
The distance required is set by local codes and would recommend checking with a local inspector to see what distance is required. The unit itself needs to be a minimum of 3 feet from the house and in some applications, it will need to be more.
+
Can this Kohler 8kW Home Standby generator be started remotely?
Kris
from Idaho
December 22, 2016
Answer
This unit is a standby generator only and will only power up when utility power is lost. The generator cannot be manually/remotely started.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×

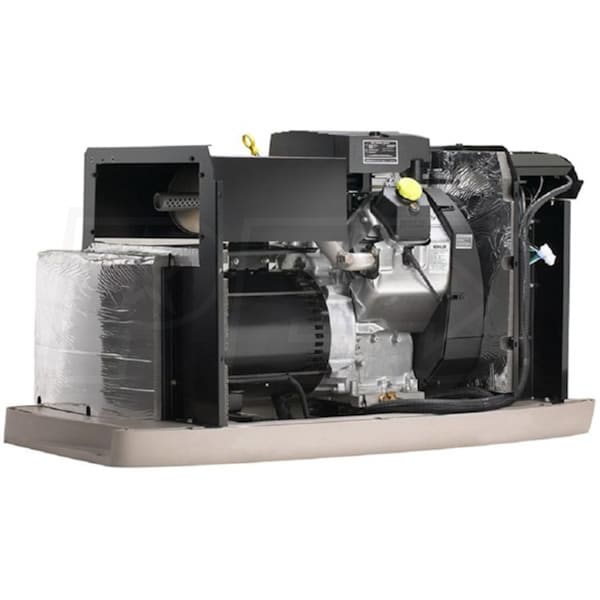

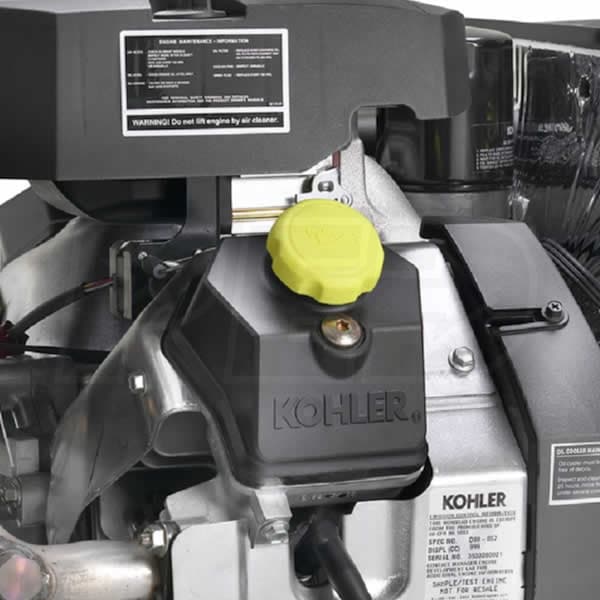

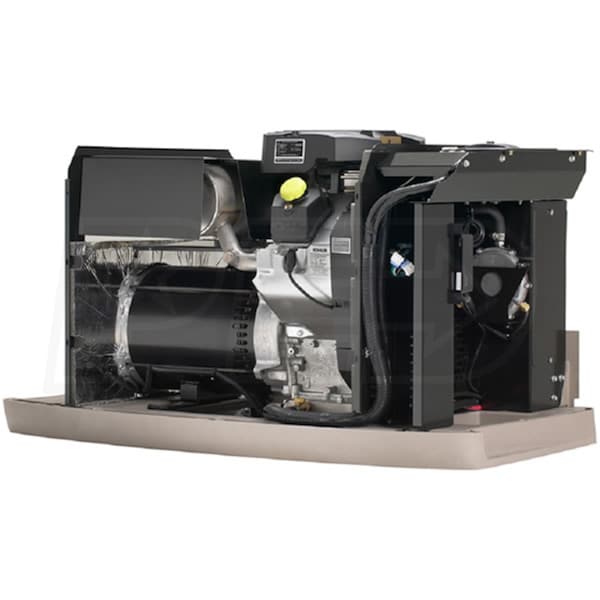

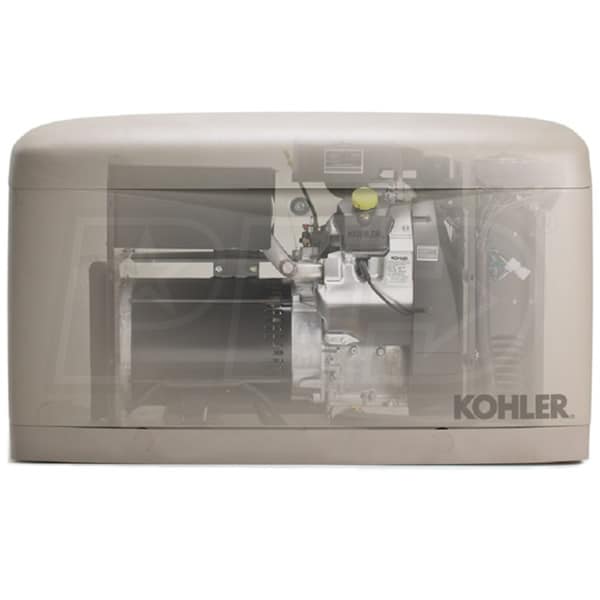

Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)
Kohler 20RESC-RXT200-2PRM-KIT
+
Reset View
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
Kohler 20RESC-RXT200-2PRM-KIT
×
Customer Review Images

Visit Electric Generators Direct on Facebook
View the Electric Generators Direct Twitter Profile Page
Follow Electric Generators Direct on Pinterest
View Electric Generators Direct YouTube Channel
View Electric Generators Direct Tumbler
View Electric Generators Direct LinkedIn Company Profile
