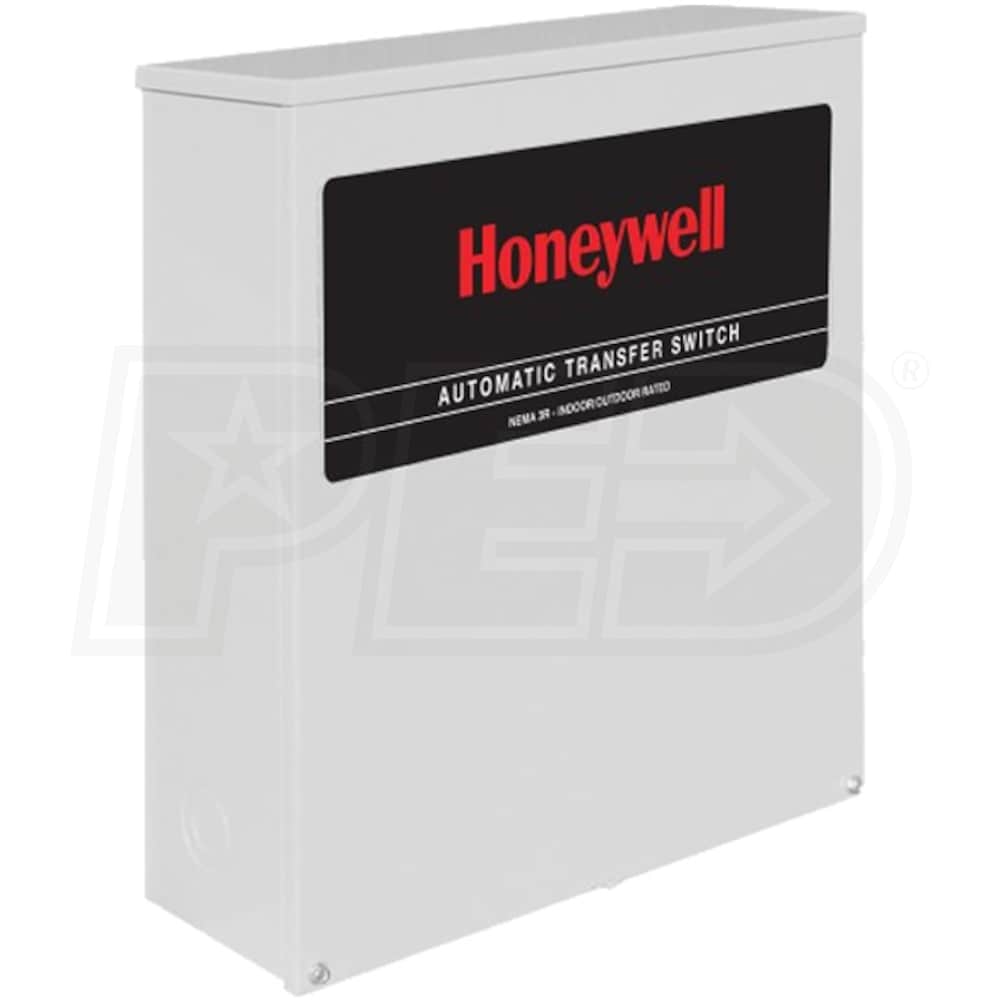

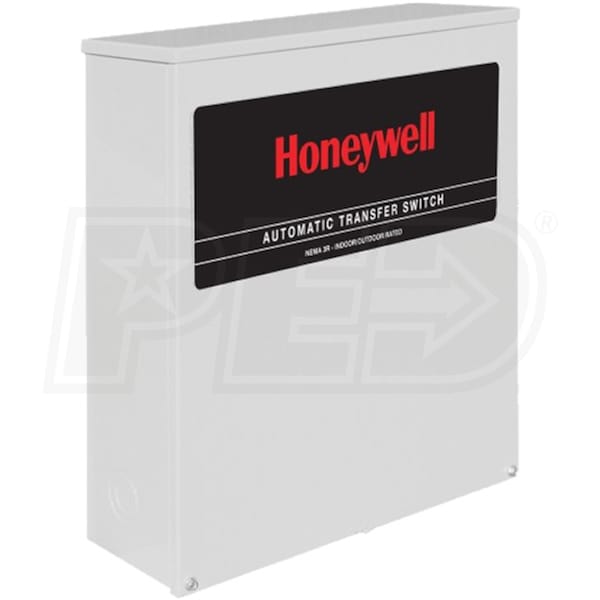

Honeywell™ Commercial 400-Amp Automatic Transfer Switch (120/208V)
Model: RTSZ400G3
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,929.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Automatic Transfer Switch (120/208V 3-Phase)
  • For 120/208V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 400-Amps @ 208V
  • Transition Type: Open
  • Withstand Rating: 18,000 Amps --- Lug Range: 600 MCM - #4 or 2-250 MCM
  • 2-Year Limited Warranty
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
133 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
36.1 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471612806
Type
Standard
Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 400-Amp Automatic Transfer Switch (120/208V 3-Phase)
  • For 120/208V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 400-Amps @ 208V
  • Transition Type: Open
  • Withstand Rating: 18,000 Amps --- Lug Range: 600 MCM - #4 or 2-250 MCM
  • 2-Year Limited Warranty
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
133 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
36.1 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471612806
Product Specs
+
Specifications
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
133 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
36.1 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471612806
