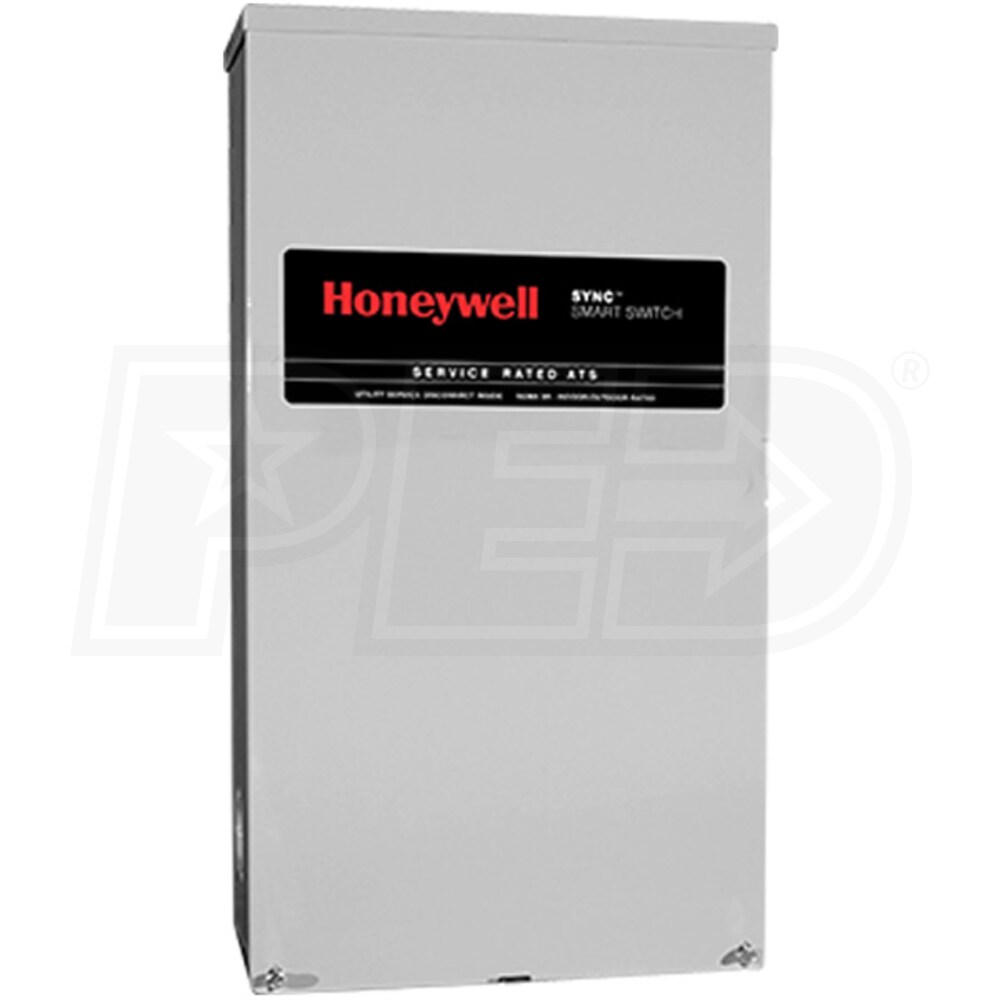

Honeywell™ 400-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management

Honeywell™ 400-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management
Model: RTSK400A3
$1,799.00
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons

Factory-Direct
Ships in 4-6 Weeks
Free Shipping
Free Shipping
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Built-In
?>
Enclosure
NEMA 3R
Features
Features
  • Honeywell™ 400-Amp Automatic Transfer Switch
  • Designed specifically for Honeywell™ SYNC™ Controllers
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 600 MCM - #4 or 2-250 MCM
  • Best- In-Class 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
140 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.06 Inches
Consumer Warranty
5 Years
UPC
696471620061
Type
Standard
Amp Rating
400
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Type
Standart
Load Mgmt.
Built-In
?>
Enclosure
NEMA 3R
Features
Features
  • Honeywell™ 400-Amp Automatic Transfer Switch
  • Designed specifically for Honeywell™ SYNC™ Controllers
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • DPM Technology So Your Generator Works Smarter
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Honeywell Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: 600 MCM - #4 or 2-250 MCM
  • Best- In-Class 5-Year Limited Warranty - UL Listed
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
140 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.06 Inches
Consumer Warranty
5 Years
UPC
696471620061
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
140 Pounds
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.06 Inches
Consumer Warranty
5 Years
UPC
696471620061
