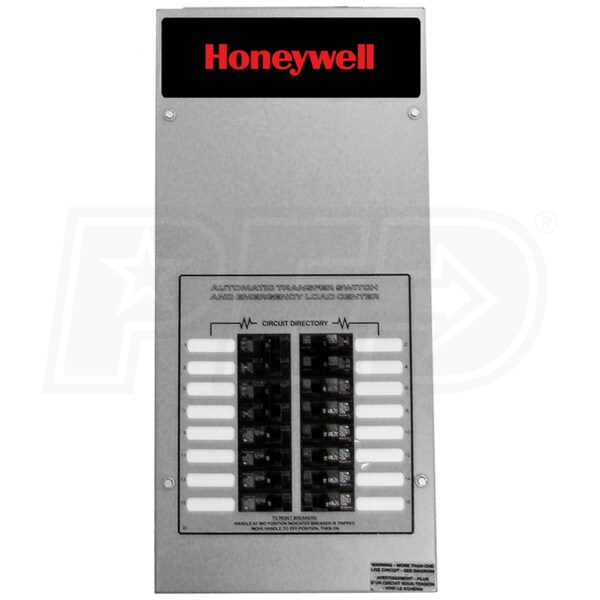

Honeywell™ 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center

Honeywell™ 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RTG16EZA3H
$499.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping

Factory-Direct
This Item Is Built To Order
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 3R
Type
Load Center
Circuits
16
?>
Enclosure
NEMA 3R
Features
Features
  • Honeywell 100-A Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • NEMA-3 Outdoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471002614
Type
Load Center
Amp Rating
100
Circuits
16
Enclosure
NEMA 3R
Type
Load Center
Circuits
16
?>
Enclosure
NEMA 3R
Features
Features
  • Honeywell 100-A Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • NEMA-3 Outdoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471002614
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
30A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
Overview
Weight
30 Pounds
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Consumer Warranty
5 Years
UPC
696471002614
