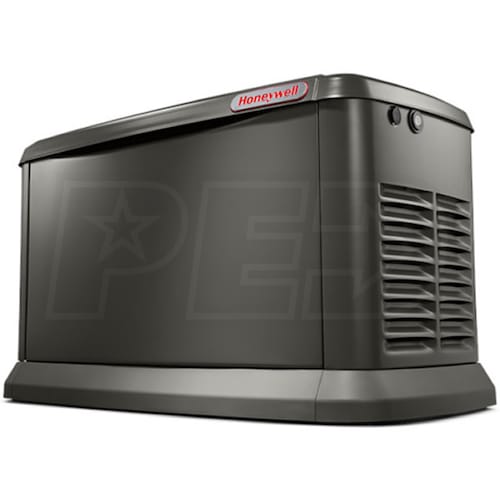

Honeywell™ 22 kW Air-Cooled Aluminum Home Standby Generator w/ Wi-Fi
Model: 70652
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 2017 - Honeywell 22kW (LPG) / 19.5kW (NG) Air-Cooled Standby Generator
- Operates on clean burning Natural Gas or LP (Vapor)
- 5-Year Premium Limited Warranty - 24/7•365 Customer Support
- Have your questions answers when it's convenient for you
- Requires Honeywell Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Reg.
- SYNC™ 2.0 Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 999cc Generac OHVI G-Force Engine
- Specifically designed for the demanding environment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Aluminum Enclosure w/ Rhino Coat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- WhisperCheck™ Self-Test Mode
- Lower RPM test mode for 5 or 12 mins.; Runs quieter and lower fuel consumption
- Flexible Installation Options - *Check Local Building Codes
- Allows for installation as close as 18" to the home*
- Direct-to-dirt Composite Mounting Pad, eliminates the need for a gravel base
- Engineered & Built In The USA*
- *Built in the USA using domestic and foreign parts
- Additional Features:
- Includes Base Fascia & 1' Flex Fuel Line Connector
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
228 ft³/hr
NG Fuel Consumption @ 100% Load
327 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.5 Inches
Product Width
25.5 Inches
Product Height
28.6 Inches
UPC
696471070651
Grade
Style
Run Watts
22,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 2017 - Honeywell 22kW (LPG) / 19.5kW (NG) Air-Cooled Standby Generator
- Operates on clean burning Natural Gas or LP (Vapor)
- 5-Year Premium Limited Warranty - 24/7•365 Customer Support
- Have your questions answers when it's convenient for you
- Requires Honeywell Automatic Transfer Switch (Sold Separately)
- Provides fully automatic operation & total system compatibility
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm electronics & micro-chip based appliances
- State-Of-The-Art Power Maximizing Regulation System
- Optimized for fast response time to varying loads & +/- 1% Digital Voltage Reg.
- SYNC™ 2.0 Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 999cc Generac OHVI G-Force Engine
- Specifically designed for the demanding environment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Aluminum Enclosure w/ Rhino Coat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- WhisperCheck™ Self-Test Mode
- Lower RPM test mode for 5 or 12 mins.; Runs quieter and lower fuel consumption
- Flexible Installation Options - *Check Local Building Codes
- Allows for installation as close as 18" to the home*
- Direct-to-dirt Composite Mounting Pad, eliminates the need for a gravel base
- Engineered & Built In The USA*
- *Built in the USA using domestic and foreign parts
- Additional Features:
- Includes Base Fascia & 1' Flex Fuel Line Connector
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
228 ft³/hr
NG Fuel Consumption @ 100% Load
327 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.5 Inches
Product Width
25.5 Inches
Product Height
28.6 Inches
UPC
696471070651
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
228 ft³/hr
NG Fuel Consumption @ 100% Load
327 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.5 Inches
Product Width
25.5 Inches
Product Height
28.6 Inches
UPC
696471070651
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Is this a Generac Guardian 22 kw generator with a Honeywell label? If so, is it compatible with a Generac 200-amp transfer switch?
jim
from California
September 28, 2020
Answer
Generac does own the generator division of Honeywell, but some of the internal components may not be exactly the same, and switches are brand specific. As a result, it's recommended to use a Honeywell switch with a Honeywell generator.
Was this answer helpful?
Yes
4
No
2
+−
Is this better than a Generac or Cummins?
A.
from New Jersey
September 25, 2020
Answer
Generac owns Honeywell's division of generators so it would be very similar. Cummins is a comparable generator brand which is know for its dependable engines, but all brands we offer are quality units.
Was this answer helpful?
Yes
2
No
0
