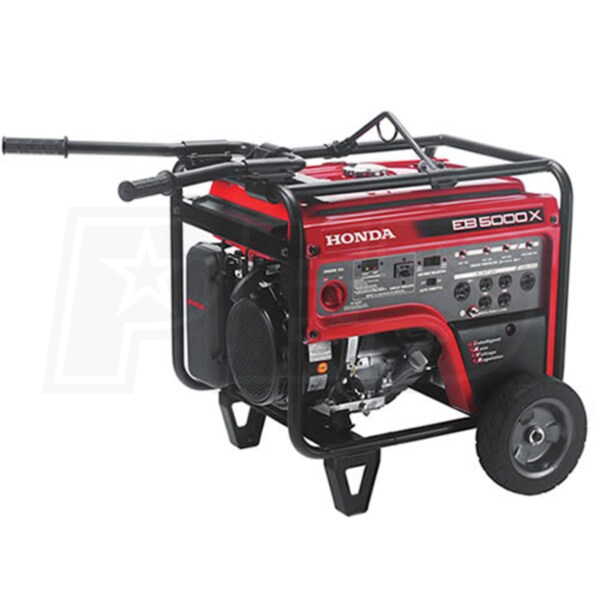

Honda EB5000X - 4500 Watt Portable Industrial Generator w/ CO-MINDER™ & GFCI Protection (CARB)
Model: EB5000X3AG
+
Share This Product
-
Product Description
-
3Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
4,500
Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
4,500
Surge Watts
5,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Honda EB5000 Portable Industrial Generator
- Ideal for power on the job site
- iAVR (Intelligent Automatic Voltage Regulator)
- Ensures a consistent flow of power regardless of load
- Protection for sensitive equipment and reliable power for you
- iVAR Bump - 7,000 Watts For Up To 10 Seconds
- Provides the ability to start high amp draw tools and motors
- CO-Minder™ Advanced Carbon Monoxide Detection System
- Continuously measures CO levels & shuts down at high levels
- 389cc Honda iGX360 OHV 4-Cycle Engine
- Digital CDI ignition system provides improved ignition timing
- Integrated ECU with a self-tuning regulator/governor system
- Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Prevent engine damage from overheating due to lack of oil
- 6.2-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 11.2 hours of run time @ 50% load
- Auto Throttle® System
- Reduces engine speed when no load is present
- Voltage Selector Switch - 120/240V Operation
- Gives you more usable power and added flexibility
- Full Panel GFCI Protection - OSHA Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- USDA-Qualified Spark Arrestor/Muffler
- Provides quieter and safer operation
- One-Piece Welded Steel Frame
- Keeps the generator safe know matter where it is
- Wheel Kit, Folding Handle & Lifting Eye
- Makes this generator easy to transport
- 3 Year Commercial/Residential Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
4500 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
11.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Applicable
Grade Type
Professional
CO Sensing
Yes
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
214 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005289
Additional Model Numbers
EB5000, EB5000X3AG
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
4,500
Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
4,500
Surge Watts
5,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Honda EB5000 Portable Industrial Generator
- Ideal for power on the job site
- iAVR (Intelligent Automatic Voltage Regulator)
- Ensures a consistent flow of power regardless of load
- Protection for sensitive equipment and reliable power for you
- iVAR Bump - 7,000 Watts For Up To 10 Seconds
- Provides the ability to start high amp draw tools and motors
- CO-Minder™ Advanced Carbon Monoxide Detection System
- Continuously measures CO levels & shuts down at high levels
- 389cc Honda iGX360 OHV 4-Cycle Engine
- Digital CDI ignition system provides improved ignition timing
- Integrated ECU with a self-tuning regulator/governor system
- Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Prevent engine damage from overheating due to lack of oil
- 6.2-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 11.2 hours of run time @ 50% load
- Auto Throttle® System
- Reduces engine speed when no load is present
- Voltage Selector Switch - 120/240V Operation
- Gives you more usable power and added flexibility
- Full Panel GFCI Protection - OSHA Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- USDA-Qualified Spark Arrestor/Muffler
- Provides quieter and safer operation
- One-Piece Welded Steel Frame
- Keeps the generator safe know matter where it is
- Wheel Kit, Folding Handle & Lifting Eye
- Makes this generator easy to transport
- 3 Year Commercial/Residential Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
4500 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
11.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Applicable
Grade Type
Professional
CO Sensing
Yes
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
214 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005289
Additional Model Numbers
EB5000, EB5000X3AG
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
4500 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
11.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Applicable
Grade Type
Professional
CO Sensing
Yes
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
214 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005289
Additional Model Numbers
EB5000, EB5000X3AG
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can I run a 120v or 240v welder?
Ivam
from California
October 14, 2020
Answer
We do not suggest using portable generators to power welders due to their high electrical demand when running.
Was this answer helpful?
Yes
0
No
0
+−
What is the difference between the Honda EB, EM and EU generators?
Thomas W Murphy
from Wisconsin
June 26, 2014
Answer
Thanks for your inquiry.
The Honda EU series is considered the "Super Quiet" series and range from 1,000 watts to 7,000 watts. These units are totally enclosed and primarily used for recreational purposes.
The Honda EB series are considered "Industrial" and range from 3,000 watts to 10,000 watts. These units have Full GFCI protected outlets to meet OSHA standards on jobsites.
The Honda EM series are considered the "Deluxe" series and range in 4,000 watts to 6,500 watts. These units have electric start and are primarily used for home backup.
The Honda EU series is considered the "Super Quiet" series and range from 1,000 watts to 7,000 watts. These units are totally enclosed and primarily used for recreational purposes.
The Honda EB series are considered "Industrial" and range from 3,000 watts to 10,000 watts. These units have Full GFCI protected outlets to meet OSHA standards on jobsites.
The Honda EM series are considered the "Deluxe" series and range in 4,000 watts to 6,500 watts. These units have electric start and are primarily used for home backup.
Was this answer helpful?
Yes
28
No
1
+−
Is there anything I need to know about these generators since they have a longer filler neck?
Karen
from Illinois
March 15, 2011
Answer
This generator has a longer filler neck and filler cap/dipstick for checking the engine oil.
This generator must not be filled with oil until the oil runs out of the filler neck. This will cause the engine to be overfilled with oil.
You must use the gauge in the oil filler cap/dipstick to verify the correct amount of oil in the engine. The engine is full of oil when the oil is up to the top of the cross-hatched area of the filler cap/dipstick. As always, do not screw in the filler cap/dipstick when checking the oil level.
You can find this information in the Owner's Manual as well.
This generator must not be filled with oil until the oil runs out of the filler neck. This will cause the engine to be overfilled with oil.
You must use the gauge in the oil filler cap/dipstick to verify the correct amount of oil in the engine. The engine is full of oil when the oil is up to the top of the cross-hatched area of the filler cap/dipstick. As always, do not screw in the filler cap/dipstick when checking the oil level.
You can find this information in the Owner's Manual as well.
Was this answer helpful?
Yes
7
No
0
