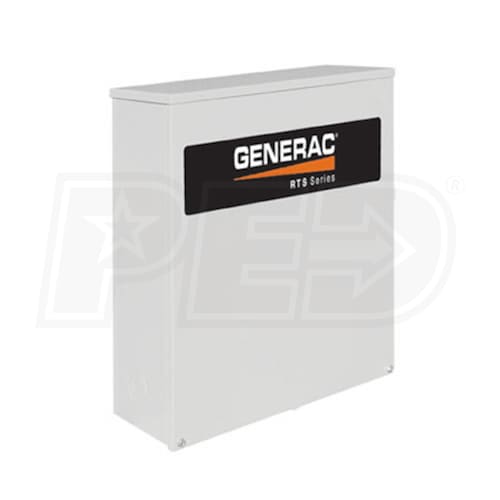

Generac 400-Amp Automatic Transfer Switch (120/240V 3-Phase)
Model: RTSN400J3
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type

Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure

Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
- Generac 3-Phase Automatic Transfer Switch
- Only works with Generac 120/240V 3-Phase generators
- Fully Automatic Operation
- Standard Installation
- May require a sub-panel or disconnect for serviceability
- Larger Applications
- Nema 3R Aluminum Enclosure
- For Use With Generac Generators Only
- UL Listed 2200
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
Type

Amp Rating
400
Load Mgmt.
Not Compatible
Enclosure

Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
- Generac 3-Phase Automatic Transfer Switch
- Only works with Generac 120/240V 3-Phase generators
- Fully Automatic Operation
- Standard Installation
- May require a sub-panel or disconnect for serviceability
- Larger Applications
- Nema 3R Aluminum Enclosure
- For Use With Generac Generators Only
- UL Listed 2200
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
107 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
10 Inches
UPC
696471114430
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Is this unit service entrance rated?
Scott
from Texas
October 03, 2020
Answer
It is not service entrance rated, and we do not have one that is service entrance rated at that voltage.
