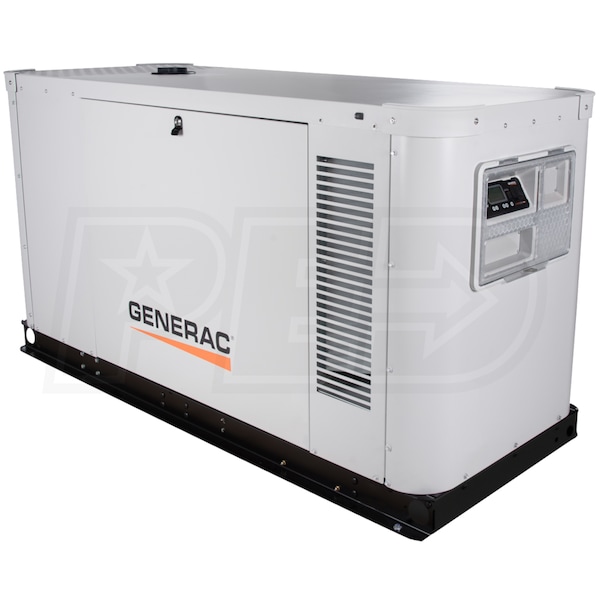

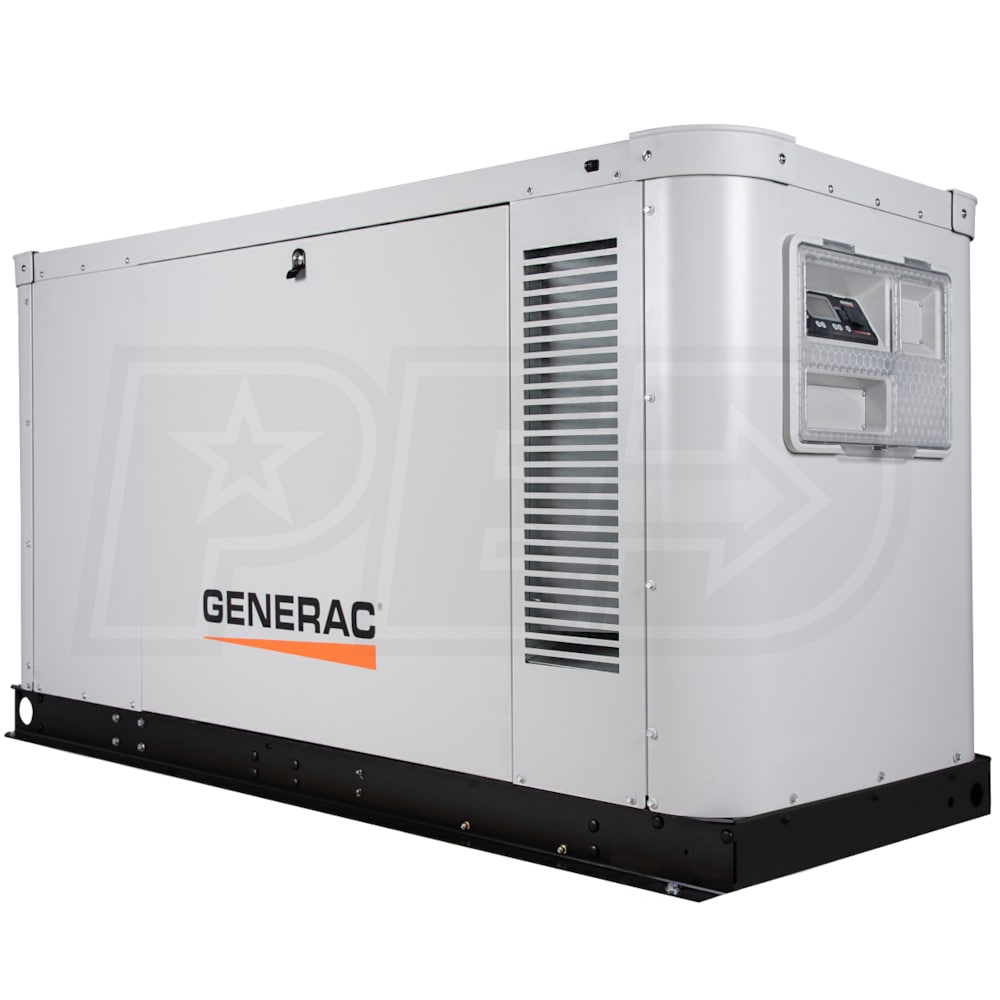

Generac Protector® XG Series 40kW Automatic Standby Generator w/ Cellular Mobile Link™ (Configurable - 277/480V 3-Phase) (SCAQMD)

Model:

XG04045CNAC-480V3P

Write A Review
$20,778.99
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$312 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac Protector® XG Series 40kW Automatic Standby Generator w/ Cellular Mobile Link™ (Configurable - 277/480V 3-Phase) (SCAQMD)
Generac Protector® XG Series 40kW Automatic Standby Generator w/ Cellular Mobile Link™ (Configurable - 277/480V 3-Phase) (SCAQMD)
Model: XG04045CNAC-480V3P
$20,778.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

40,000 Rated Watts

Voltage

277/480 Three-Phase

Fuel

LP/Natural Gas

Engine

Generac

    NOTE - Configurable 3-Phase Voltage Output. Includes 277/480V 3-Phase Voltage Configuration Cartridge (VCC)

    ^Please Note - Requires Loading Dock or Forklift For Delivery^

  • SCAQMD Compliant
  • Built in the USA using domestic & foreign parts
  • Meets emissions requirements for sale in CA/MA
  • 40kW Protector® XG Series Premium-Grade Standby Generator
  • For small commercial buildings with 3-Phase service
  • Configurable 3-Phase Voltage Output*
  • Includes 277/480V 3-Phase Voltage Configuration Cartridge (VCC)
  • All Voltages Require Generator CB Kit (Sold Separately)
  • Runs Off Natural Gas or LP Fuel Source
  • Now controller is selectable for easier installation
  • Mobile Link™ and Fleet Standard Cellular Connectivity
  • Monitor generator status on a smart phone, tablet or PC
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Quiet-Test™
  • Low-speed exercise mode for quieter weekly tests; 58 dB @ 23'

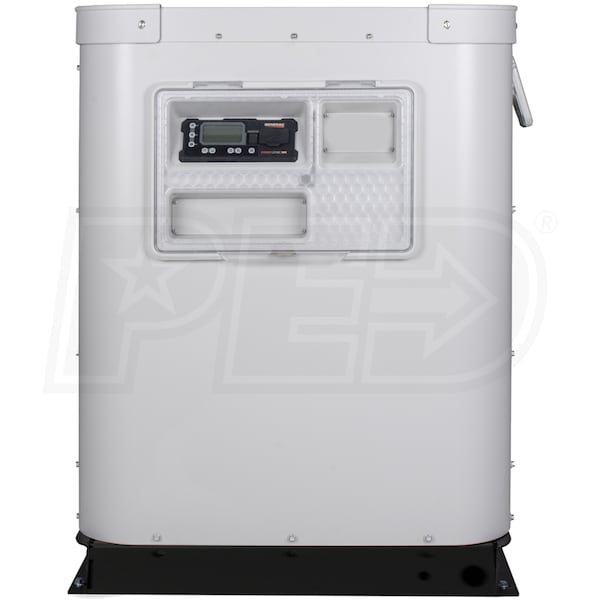

  • Power Zone 410 Controller
  • LCD Display provides service & maintenance intervals
  • NFPA 110 Capable
  • 4.5L Inline 4-Cylinder, Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Hydraulic lifter helps minimize maintenance costs
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • Additional Features:
  • Built-in Battery Charger (Battery Not Included)
  • Generac Standby Generators & Engines - Built In The USA*
  • Product Includes
    • (1) Generac Protector® XG Series 40kW Automatic Standby Generator w/ Cellular Mobile Link™ (Configurable - 120/208V 3-Phase) SCAQMD Compliant (XG04045CNAC)
    • (1) Generac Protector - XG032/40/48 Series - 277/480V (K) 3-Phase Voltage Configuration Cartridge (G0099030)
    • (1) Generac 7412 - 3-Phase Voltage Sensing Kit For RTS Transfer Switches - 277/480V (K) (7412)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Generac Protector® XG Series 40kW Automatic Standby Generator w/ Cellular Mobile Link™ (Configurable - 120/208V 3-Phase) SCAQMD Compliant (XG04045CNAC)
  • (1) Generac Protector - XG032/40/48 Series - 277/480V (K) 3-Phase Voltage Configuration Cartridge (G0099030)
  • (1) Generac 7412 - 3-Phase Voltage Sensing Kit For RTS Transfer Switches - 277/480V (K) (7412)
XG04045CNAC-480V3P
specs product image PID-168600
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1781 Pounds
Certification
SCAQMD
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
83.4 Inches
Product Width
34 Inches
Product Height
45.2 Inches
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Watts
40000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
40000 Watts
LP Power Capacity
40000 Watts
NG Fuel Consumption @ 50% Load
289 ft³/hr
NG Fuel Consumption @ 100% Load
494 ft³/hr
LP Fuel Consumption @ 50% Load
3.8 gallons/hr
LP Fuel Consumption @ 100% Load
5.7 gallons/hr
Rated Amps
60 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58 Test (64 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
XG04045CNAC
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1781 Pounds
Certification
SCAQMD
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
83.4 Inches
Product Width
34 Inches
Product Height
45.2 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
40000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
40000 Watts
LP Power Capacity
40000 Watts
NG Fuel Consumption @ 50% Load
289 ft³/hr
NG Fuel Consumption @ 100% Load
494 ft³/hr
LP Fuel Consumption @ 50% Load
3.8 gallons/hr
LP Fuel Consumption @ 100% Load
5.7 gallons/hr
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58 Test (64 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
G0099030
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
1 Pound
Product Specs
Frequency
60 Hertz
