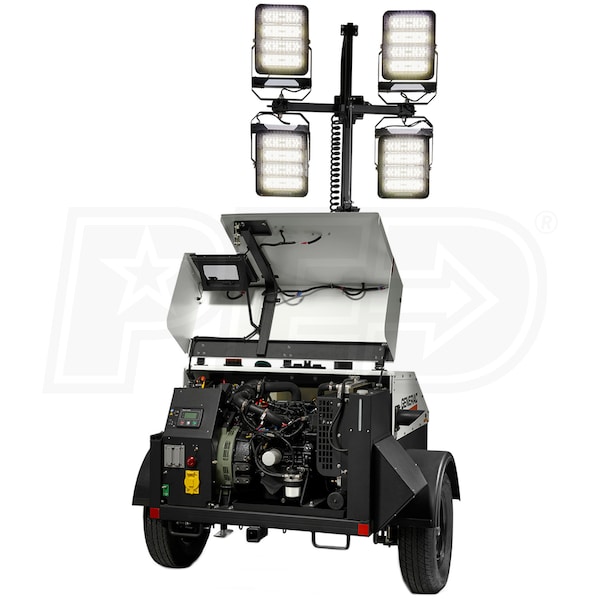

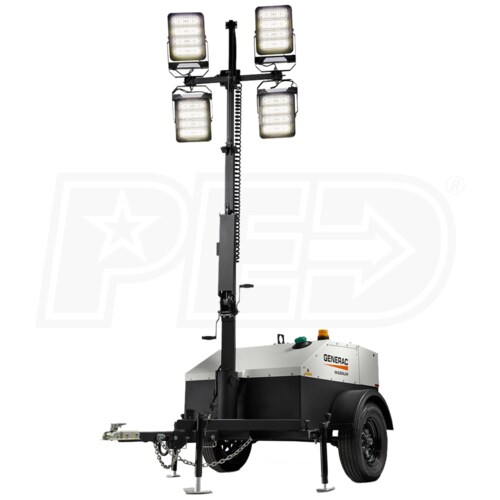

Generac Mobile 6kW Narrow Body Towable Diesel Vertical Mast LED Light Tower w/ AVR, Manual Winch & Power Zone Controller
Model:
MLT4060MVD-STD3
+
Share This Product
Features
Grade
Style
Tow-Behind
Run Watts
6,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Mitsubishi
- Generac MLT4060MVD-STD3 6kW Towable Diesel LED Light Tower (Electric Winch)
- Powerful, compact illumination for a variety of applications
- (4) x 320W (47K/188K Lumens) LED Light Fixtures
- IP68 LED Modules with 50,000-hour life
- Aluminum / Poly construction housing and cabinet mounted LED drivers
- 23-Foot, 5-Section Vertical Mast w/ Electric Winch
- 359° Ground rotational mast with mast fully extended
- Allows for quick setup, Raises mast in 15 seconds
- Distinctive angle fixture mount for common light distribution
- .95L Mitsubishi® L3E ECOSpeed Liquid Cooled Diesel Engine (EPA Tier 4 Final)
- User-friendly, low maintenance, 1000-Hour service interval
- Provides greater fuel efficiency by reducing engine speed based on demand
- 104-Gallon Polyethylene Internal Fuel Tank
- Allows for run times up to 530 hours with LED lighting load
- 120/240V - 50/25A Marathon Electric® Brushless Alternator
- Robust design provides up to 6 kW of standby output
- Long life & low maintenance while providing +/- 1% voltage reg. (AVR)
- Power Zone® Autolight Controller
- Automated dusk to dawn or 7-day scheduler operation
- Improved Engine Control System
- Back-lit LCD display with programmable service timers and one-touch starting
- Digital hour meter; Automatic low oil pressure/high temp. shutdown
- (1) 120V 20A GFCI Duplex Outlet & (1) 120/240V 30A (L14-30R) Twistlock Outlet
- Individually breakered for added safety during operation
- Corrosion-Proof Aluminum Enclosure
- Central lifting point and fork pockets
- Sound rating: 63 db(A) @ 23'
- Tubular Steel Trailer w/ (4) 2000 lb. Tube & Sleeve Leveling Jacks
- DOT-approved LED tail, side, brake & directional lights; 15" 6-ply tires
- 2" Ball hitch and safety chains with spring loaded safety hooks
- Includes Starting Battery
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 2-Year / 2,000 Hour Limited Warranty
- 10,000 Hour Parts Warranty On LED Modules & Drivers
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
MLT4060MVD-STD3
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
6000 Watts
Fuel Type
Diesel
Tank Size
104 Gallons
Fuel Tank Material
Plastic Resin
Decibel Rating @ 7m
63
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Enclosure
Aluminum
Fuel Consumption
0.195 gallons/hr
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
CC
950 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1694 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
124.8 Inches
Product Width
68.4 Inches
Product Height
100.8 Inches
Plugs
NEMA 5-20R - GFCI
