Generac MLG15M - Mobile Lite 13kW (Prime) / 14kW (Standby) Towable Diesel Generator w/ Mitsubishi Engine

Generac MLG15M - Mobile Lite 13kW (Prime) / 14kW (Standby) Towable Diesel Generator w/ Mitsubishi Engine
Our Price
Compare Prices
Shipping Info
Model: MLG15
$14,199.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
13,000
Rated Watts
Surge Watts
14,000
Starting Watts
Fuel
Engine
Mitsubishi
Grade
Professional
Style
Tow-Behind
Run Watts
13,000
Surge Watts
14,000 Starting Watts
Fuel
Diesel
Engine
Mitsubishi
Features
Features

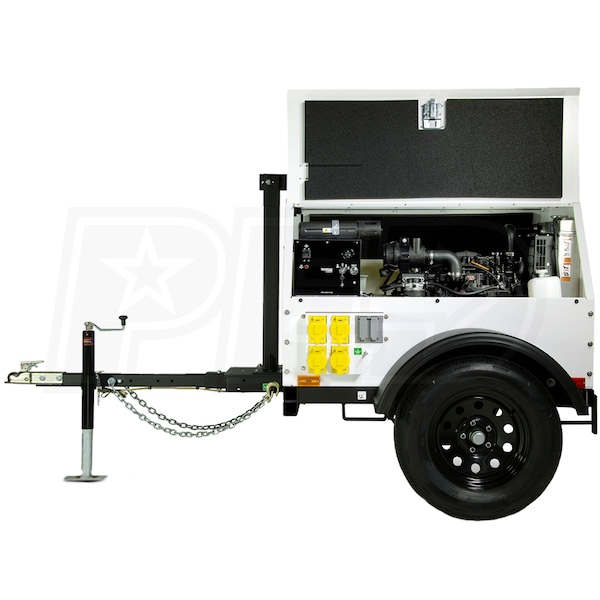

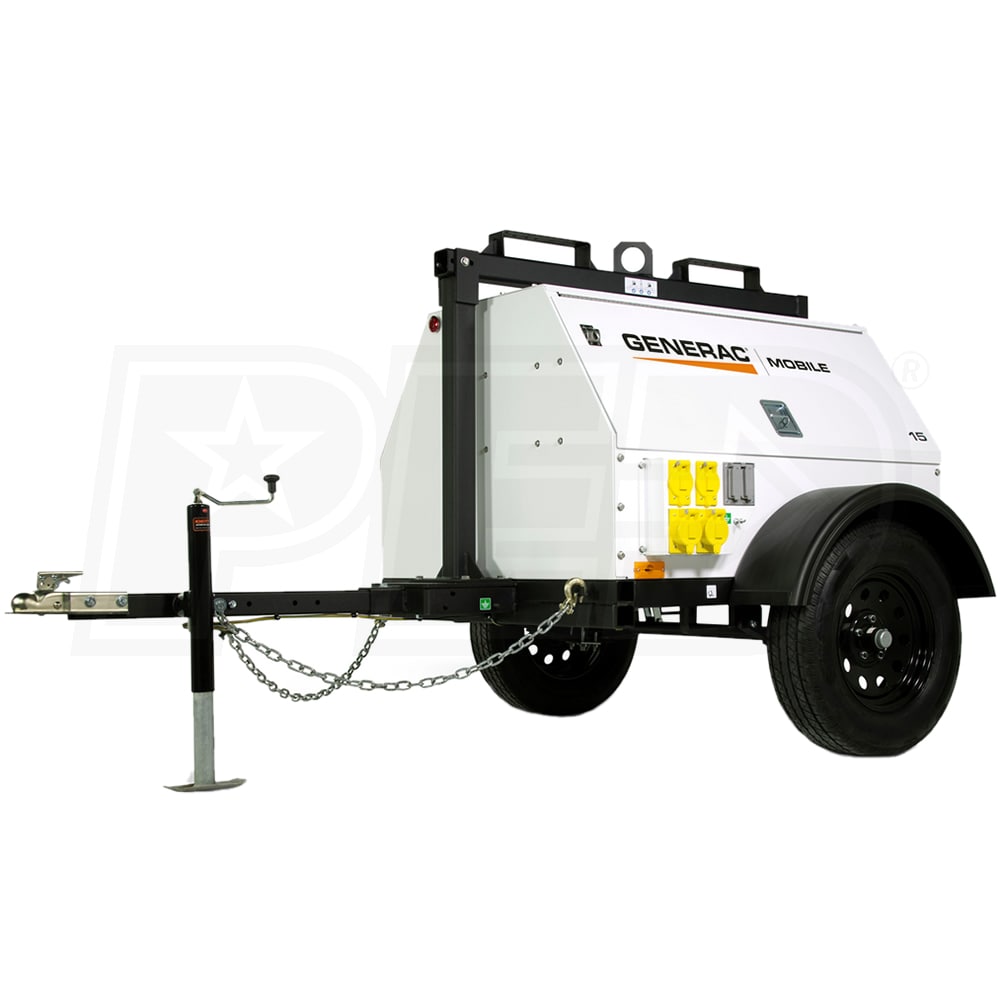

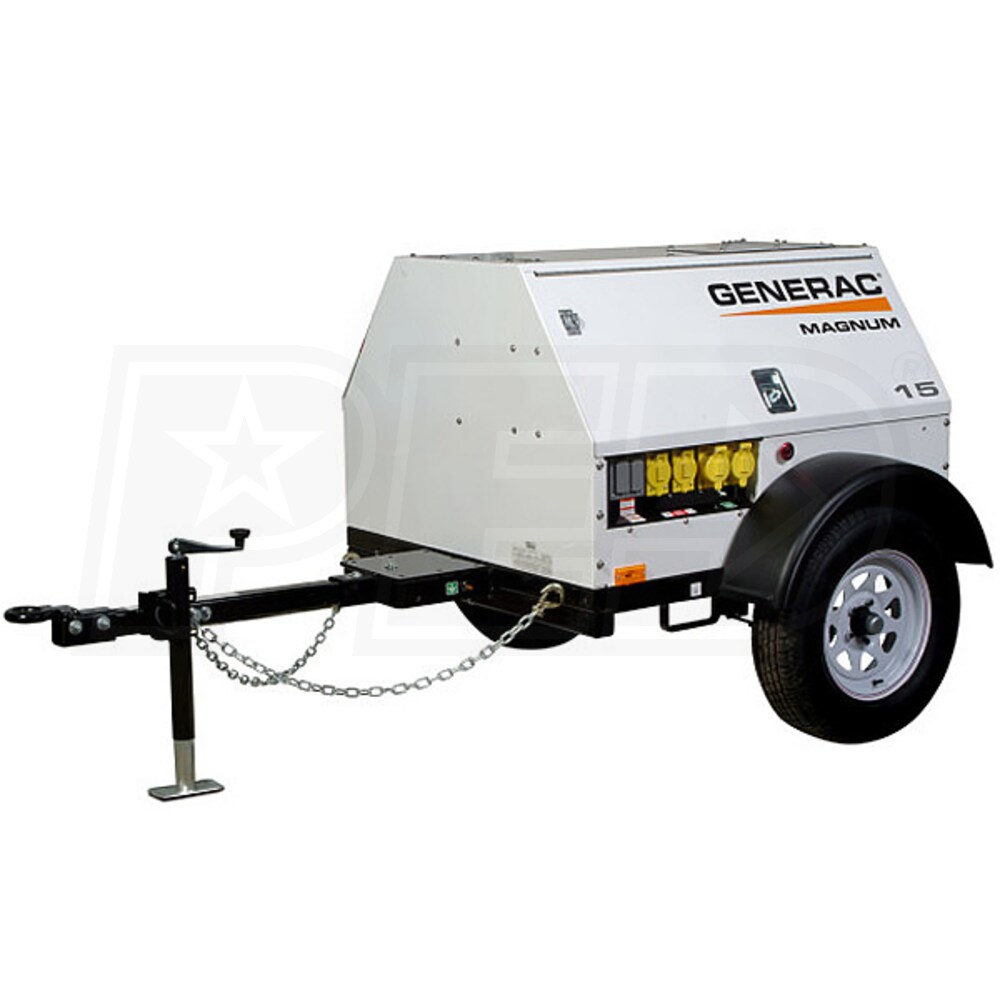

  • Generac Magnum MLG15K LITE Mobile Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Marathon Electric Brushless Alternator - Single-Phase Output
  • Prime - 13 kW / 13 kVA (54A @ 240V)
  • Standby - 14 kW / 14 kVA (58A @ 240V)
  • Marathon SE350 Voltage Regulator
  • Provides Voltage regulation of +/- 1% for cleaner power
  • 1.8L Mitsubishi« S4L2 Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • Rubber vibration dampers isolate engine/generator from frame for quieter operation
  • 56-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
  • Provides up to 86 hours of run time @ 50% load
  • Provides up to 43 hours of run time @ 100% load
  • Automatic Low Oil / High Temperature Shutdown System
  • Provides added safety to extend engine life
  • Easy To Use System Controls
  • 4-Position keyed switch (Preheat, Off, Run & Start)
  • Hour Meter makes it simple to monitor run time and maintenance intervals
  • Emergency stop switch located on front panel
  • Internally Mounted Circuit Breakers w/ 70A Start Limit Breaker
  • Provides added protection to all receptacles on genset

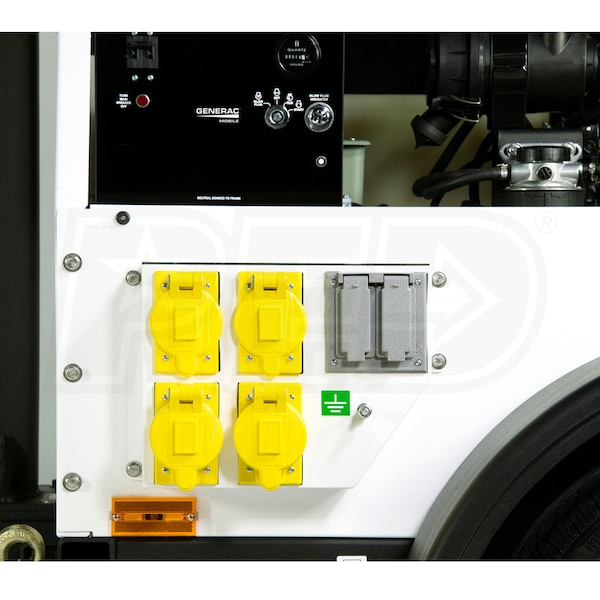

  • (2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
  • Individually breakered for added safety during operation
  • (2) 120V 20A GFCI Duplex Outlets
  • Provides the convenience of powering 120V equipment
  • 14-Gauge, Sound Attenuated Steel Enclosure - 70 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Fully-lockable, insulated & baffled w/ stainless steel hardware
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • 48" Track Width, DOT Approved Tubular Steel Trailer w/ 2" Ball Hitch
  • Transportation tie downs, Safety chains w/ spring-loaded hooks

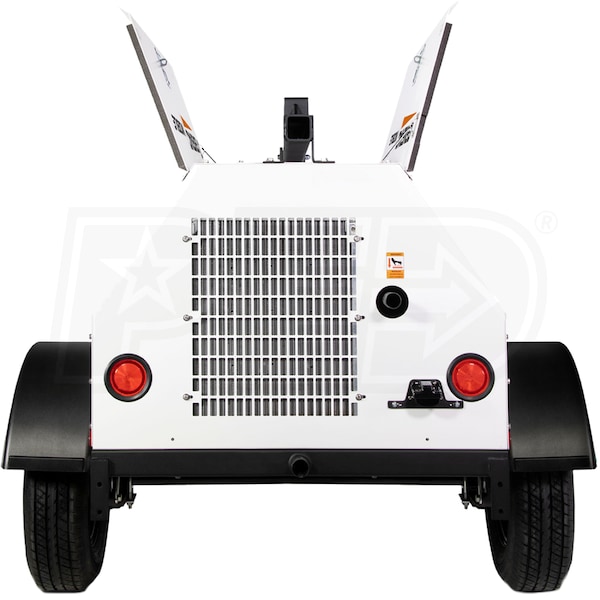

  • Tail, side, brake, and directional lights; Recessed rear lights
  • 15" ST205/75R15 - 6 ply wheel/tire & Single wall polyethylene fenders
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
NEMA L6-30R
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
HP
22.3 HP
CC
1800 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
14000 Watts
Rated Watts
13000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
.65 gallons/hr
Rated Amps
108/54 Amps
Tank Size
56 Gallons
Run Time @ 50% Load
86 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Circuit Breaker Size
70 Amps
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
2
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
1425 Pounds
Product Style
Towable Generator
Product Length
105 Inches
Product Width
68 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471067835
Grade
Style
Run Watts
13,000
Rated Watts
Surge Watts
14,000
Starting Watts
Fuel
Engine
Mitsubishi
Grade
Professional
Style
Tow-Behind
Run Watts
13,000
Surge Watts
14,000 Starting Watts
Fuel
Diesel
Engine
Mitsubishi
Features
Features
  • Generac Magnum MLG15K LITE Mobile Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Marathon Electric Brushless Alternator - Single-Phase Output
  • Prime - 13 kW / 13 kVA (54A @ 240V)
  • Standby - 14 kW / 14 kVA (58A @ 240V)
  • Marathon SE350 Voltage Regulator
  • Provides Voltage regulation of +/- 1% for cleaner power
  • 1.8L Mitsubishi« S4L2 Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • Rubber vibration dampers isolate engine/generator from frame for quieter operation
  • 56-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
  • Provides up to 86 hours of run time @ 50% load
  • Provides up to 43 hours of run time @ 100% load
  • Automatic Low Oil / High Temperature Shutdown System
  • Provides added safety to extend engine life
  • Easy To Use System Controls
  • 4-Position keyed switch (Preheat, Off, Run & Start)
  • Hour Meter makes it simple to monitor run time and maintenance intervals
  • Emergency stop switch located on front panel
  • Internally Mounted Circuit Breakers w/ 70A Start Limit Breaker
  • Provides added protection to all receptacles on genset
  • (2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
  • Individually breakered for added safety during operation
  • (2) 120V 20A GFCI Duplex Outlets
  • Provides the convenience of powering 120V equipment
  • 14-Gauge, Sound Attenuated Steel Enclosure - 70 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Fully-lockable, insulated & baffled w/ stainless steel hardware
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • 48" Track Width, DOT Approved Tubular Steel Trailer w/ 2" Ball Hitch
  • Transportation tie downs, Safety chains w/ spring-loaded hooks
  • Tail, side, brake, and directional lights; Recessed rear lights
  • 15" ST205/75R15 - 6 ply wheel/tire & Single wall polyethylene fenders
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
NEMA L6-30R
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
HP
22.3 HP
CC
1800 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
14000 Watts
Rated Watts
13000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
.65 gallons/hr
Rated Amps
108/54 Amps
Tank Size
56 Gallons
Run Time @ 50% Load
86 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Circuit Breaker Size
70 Amps
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
2
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
1425 Pounds
Product Style
Towable Generator
Product Length
105 Inches
Product Width
68 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471067835
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
NEMA L6-30R
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
HP
22.3 HP
CC
1800 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
14000 Watts
Rated Watts
13000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
.65 gallons/hr
Rated Amps
108/54 Amps
Tank Size
56 Gallons
Run Time @ 50% Load
86 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Circuit Breaker Size
70 Amps
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
2
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
1425 Pounds
Product Style
Towable Generator
Product Length
105 Inches
Product Width
68 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471067835
