Generac Guardian® 13kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi + 3" GenPad™ + Battery

Model:

EGD-7174KIT

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Guardian® 13kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi + 3
Generac Guardian® 13kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi + 3" GenPad™ + Battery
Model: EGD-7174KIT
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

13,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 13k Guardian Air-Cooled Standby Generator Package
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • 5-Year Limited Warranty
  • Plus 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • 100-Amp Automatic Transfer Switch w/ Integrated Load Center
  • NEMA 3R Outdoor Aluminum enclosure
  • Great when main breaker panel is located outdoors
  • 16-Circuit Essential Circuit Load Center
  • For large main service & only partial generator backup
  • Allows you to backup 120V & 240V circuits
  • Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
  • NEW Generac G-Force 800 Series Engine
  • Hydraulic lifters for improved performance & less maintenance
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility*
  • Can be installed within 18" of a building
  • *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features
  • Smart battery charger & 14" Flexible fuel line connector
  • Also Includes:
  • GenPad™ Standard 3" Composite Cement Pad & Battery
  • Automatic Transfer Switch Model # RXG16EZA3
  • Product Includes

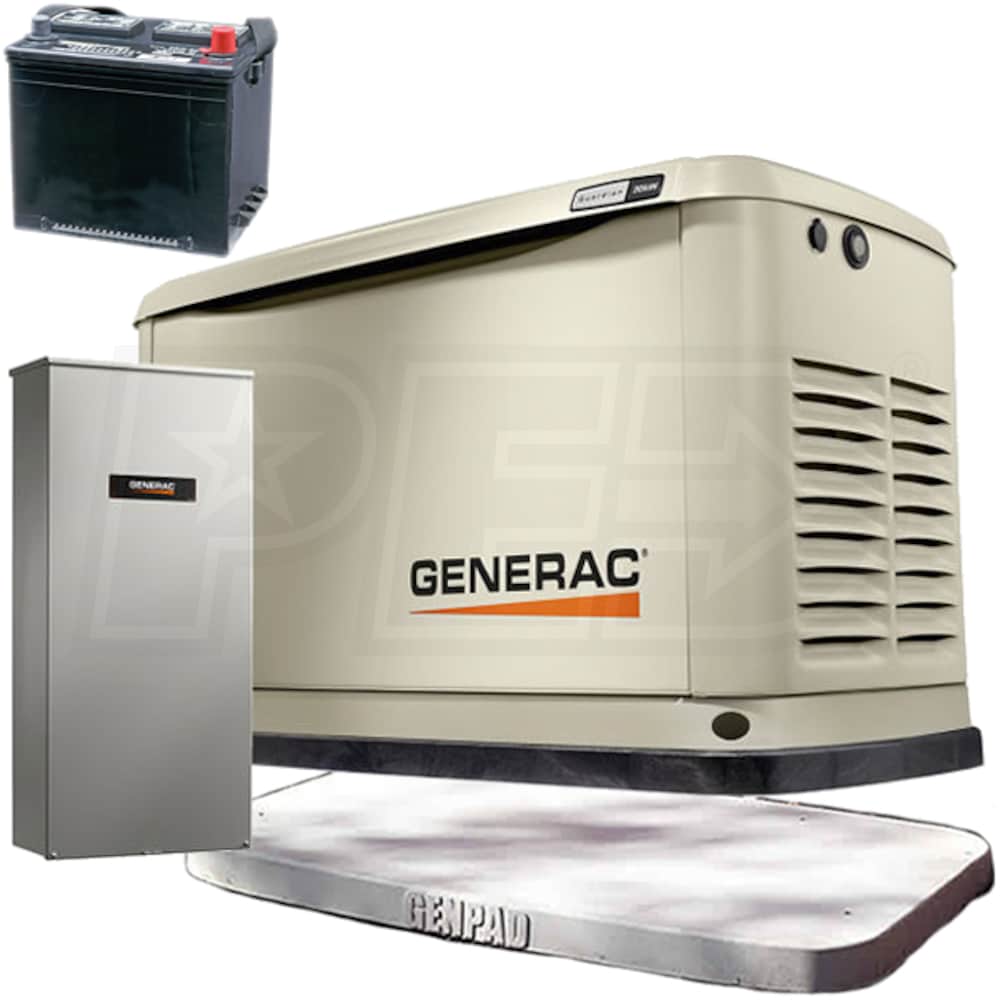

    • (1) Generac Guardian® 13kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi (7174)
    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-24kW (2016+) (10000007852)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 PGIII Emergency 800-424-9300 (5819)

Specifications

Product Includes
  • (1) Generac Guardian® 13kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi (7174)
  • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-24kW (2016+) (10000007852)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 PGIII Emergency 800-424-9300 (5819)
EGD-7174KIT
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
13000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
13000 Watts
LP Power Capacity
13000 Watts
NG Fuel Consumption @ 50% Load
154 ft³/hr
NG Fuel Consumption @ 100% Load
225 ft³/hr
LP Fuel Consumption @ 50% Load
1.54 gallons/hr
LP Fuel Consumption @ 100% Load
2.45 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
60 Amps
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
530 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
385 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
48 Inches
Product Style
Standby Generator
Product Width
25.1 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
13000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
13000 Watts
LP Power Capacity
13000 Watts
NG Fuel Consumption @ 50% Load
154 ft³/hr
NG Fuel Consumption @ 100% Load
225 ft³/hr
LP Fuel Consumption @ 50% Load
1.54 gallons/hr
LP Fuel Consumption @ 100% Load
2.45 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
60 Amps
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
530 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
385 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
48 Inches
Product Style
Standby Generator
Product Width
25.1 Inches
Product Height
29 Inches
10000007852
Product Specs
Frequency
60 Hertz
Overview
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
Product Specs
Frequency
60 Hertz
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
