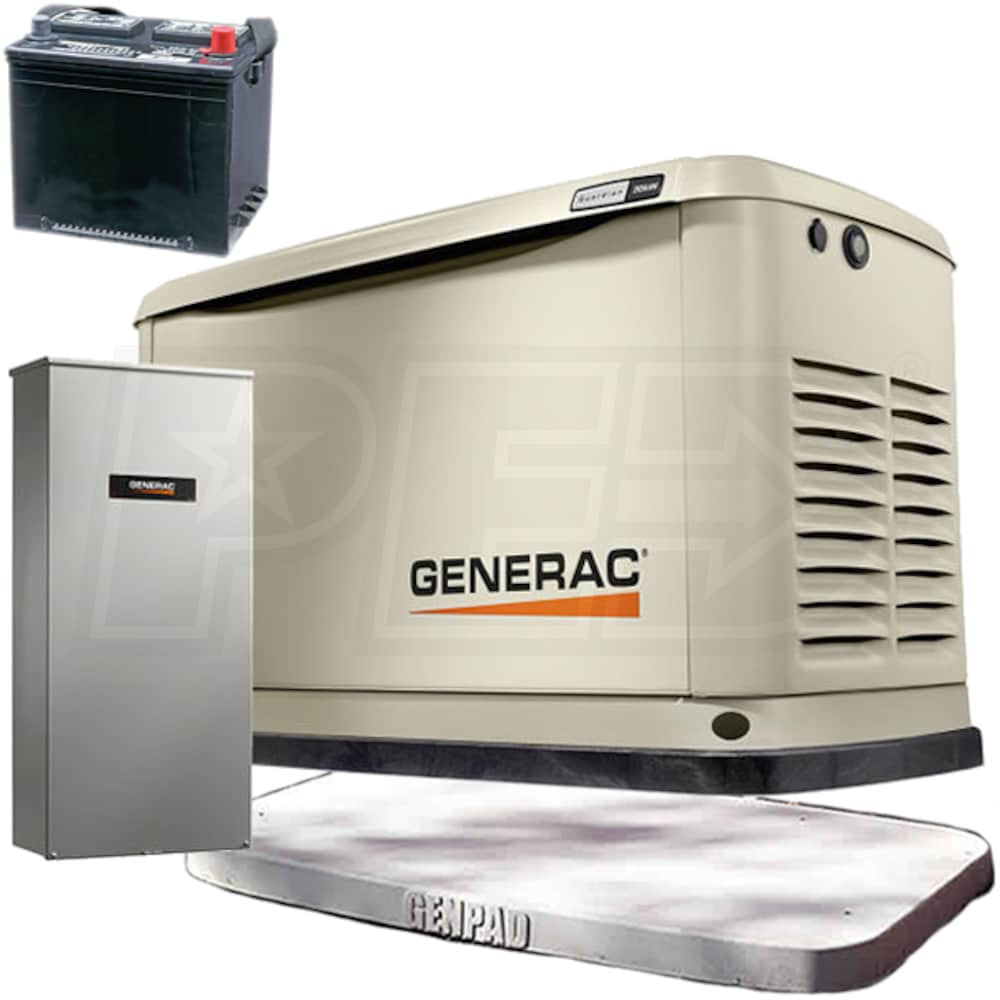

Generac Guardian™ 16kW Standby Generator System (200A Service Disc. + AC Shedding) + 3" GenPad™ + Battery

Model:

EGD-7037KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Guardian™ 16kW Standby Generator System (200A Service Disc. + AC Shedding) + 3
Generac Guardian™ 16kW Standby Generator System (200A Service Disc. + AC Shedding) + 3" GenPad™ + Battery
Model: EGD-7037KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

16,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI

  • Generac 16W (LPG) / (NG) Guardian Standby Generator System
  • Built-in Battery Charger
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes 200-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty
  • Plus 24/7•365 Customer Support so you have you questions answers when its convient for you
  • Generac's G-Force Engine
  • Specifically desgined for the demanding enviroment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connectes to your existing LP or natural gas fuel supply
  • True Power™ Electrical Technology & Automatic Digital Voltage Regulation (+/- 1%)
  • Less than 5% Total Harmonic Distorsion (THD) for utility grade power
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straighforward operation
  • Quiet-Test™ Low-Speed Self-Test Mode
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enslosure protected from the elements
  • Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
  • Easily montior generator status anywhere with a smartphone, tablet, or PC
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local bulding codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additonal Features:
  • Product Includes
    • (1) Generac Guardian™ 16kW Aluminum Standby Generator System (200A Service Disconnect + AC Shedding) (7037)

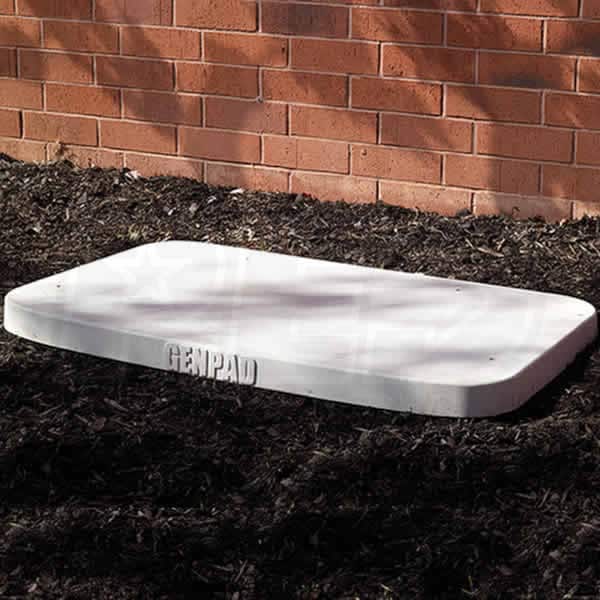

    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)

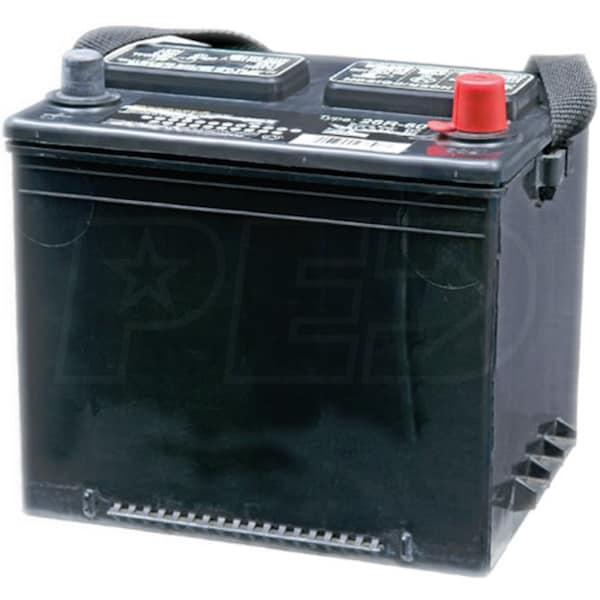

    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)

Specifications

Product Includes
  • (1) Generac Guardian™ 16kW Aluminum Standby Generator System (200A Service Disconnect + AC Shedding) (7037)
  • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-7037KIT
specs product image PID-78141
Overview
Weight
513 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
218 ft³/hr
NG Fuel Consumption @ 100% Load
309 ft³/hr
LP Fuel Consumption @ 50% Load
2.52 gallons/hr
LP Fuel Consumption @ 100% Load
2.94 gallons/hr
Rated Amps
66.6 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
992 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
513 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
218 ft³/hr
NG Fuel Consumption @ 100% Load
309 ft³/hr
LP Fuel Consumption @ 50% Load
2.52 gallons/hr
LP Fuel Consumption @ 100% Load
2.94 gallons/hr
Rated Amps
66.6 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
992 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
10000007852
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
