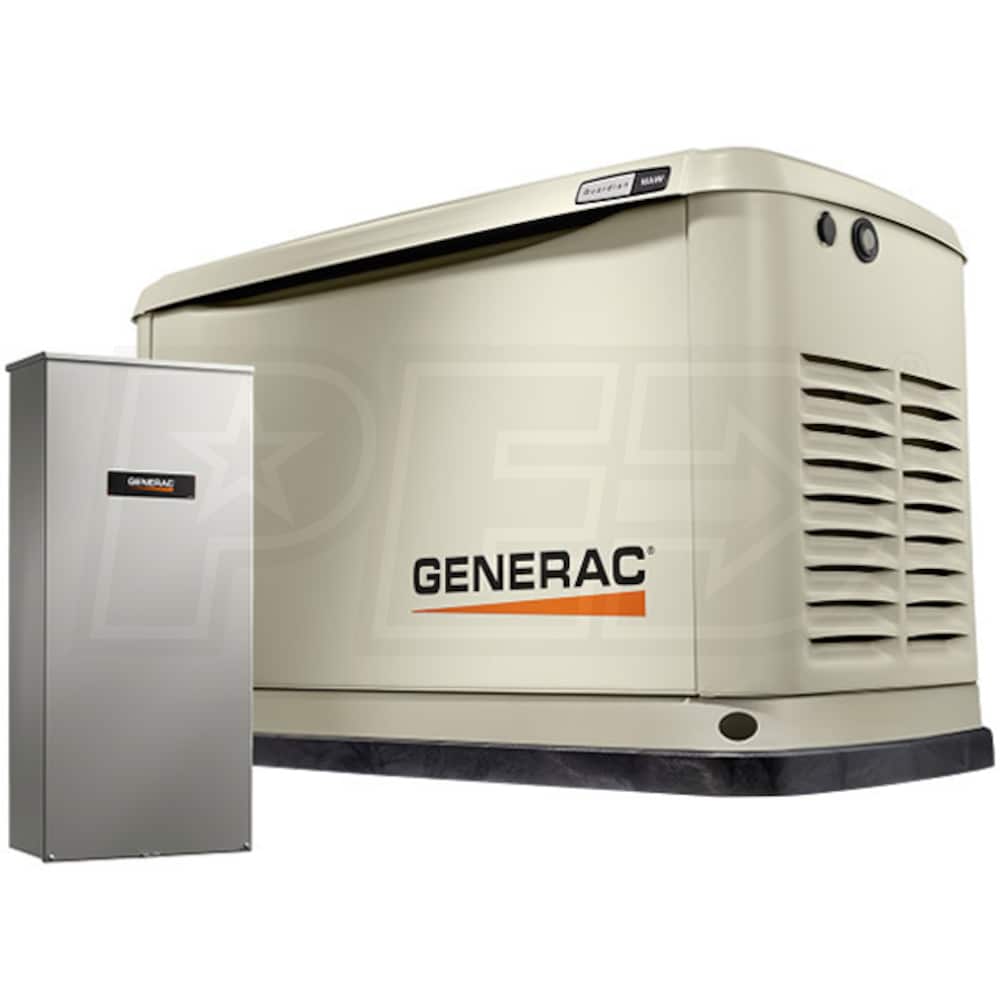

Generac Guardian® 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi

Model:

70361

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Guardian® 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Generac Guardian® 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Model: 70361
Was $4,147.00
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

16,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI

  • 16k Guardian™ Air-Cooled Standby Generator System
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • 5-Year Limited Warranty + Plus 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • 100-Amp Automatic Transfer Switch w/ Integrated Load Center
  • NEMA 3R Outdoor Aluminum enclosure
  • Great when main breaker panel is located outdoors
  • 16-Circuit Essential Circuit Load Center
  • For large main service & only partial generator backup
  • Allows you to backup 120V & 240V circuits
  • Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
  • 999cc Generac G-Force Engine
  • Specifically designed for the demanding standby applications
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility*
  • Can be installed within 18" of a building
  • *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Also Includes
  • Smart battery charger & 14" Flexible fuel line connector
  • Please Note - Battery Not Included (Sold Separately)
  • Automatic Transfer Switch Model # RXG16EZA3
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

70361
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
218 ft³/hr
NG Fuel Consumption @ 100% Load
309 ft³/hr
LP Fuel Consumption @ 50% Load
2.03 gallons/hr
LP Fuel Consumption @ 100% Load
2.94 gallons/hr
Rated Amps
66.6 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
70 Amps
A/C Ton Rating
4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
409 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
48 Inches
Product Style
Standby Generator
Product Width
25 Inches
Product Height
29 Inches
UPC
696471074154
