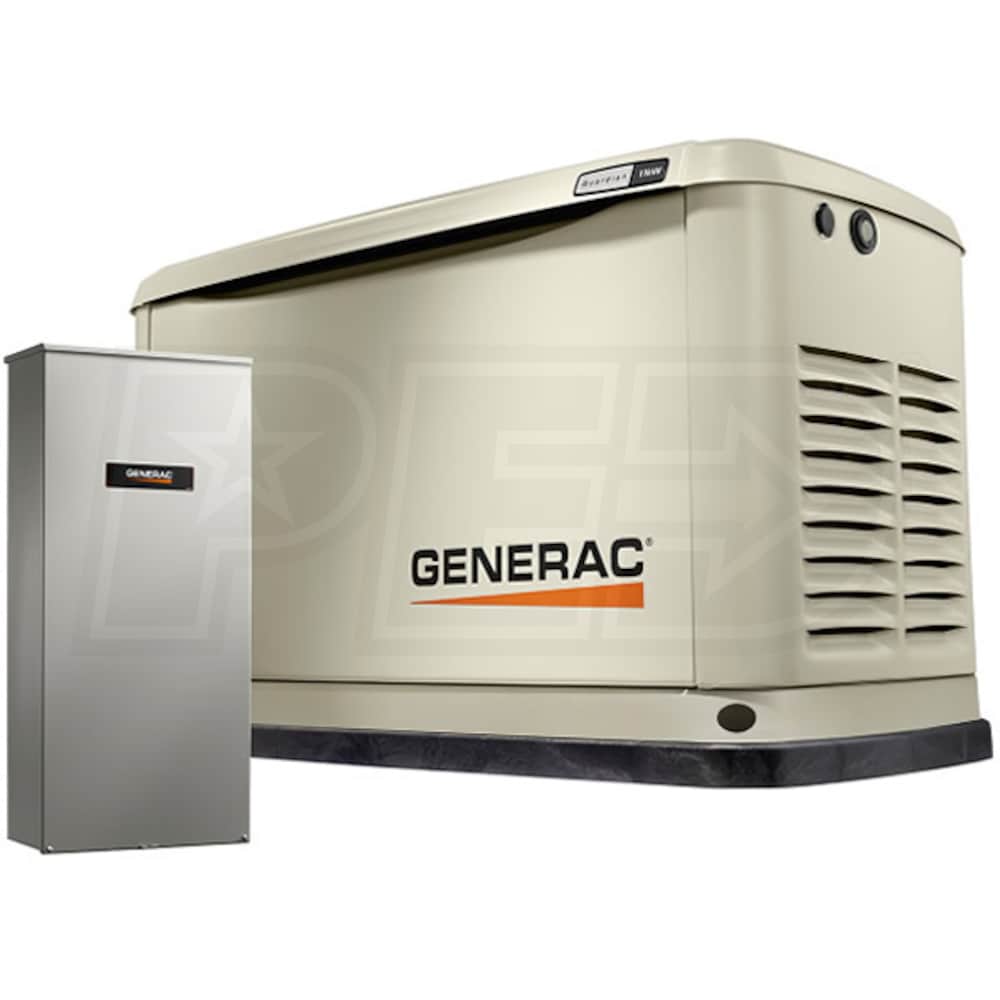

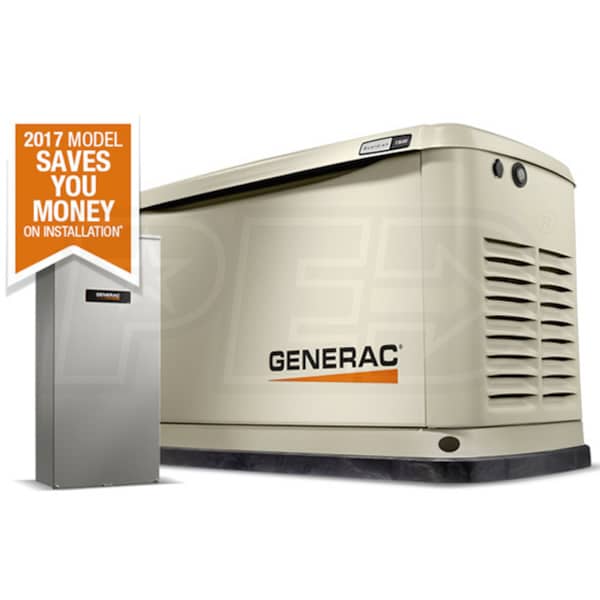

Generac Guardian™ 11kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Generac Guardian™ 11kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
+
Share This Product
-
Product Description
-
7Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
11,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
11,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Features
Features
- 11kW (LPG) / 10kW (NG) Guardian Standby Generator System
- Protects your home and family during a power outage
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 100-Amp Automatic Transfer Switch w/ Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service & only partial generator backup
- Allows you to backup 120V & 240V circuits; Tandem breaker compatible
- 5-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- Generac's G-Force Engine
- Specifically designed for the demanding environment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- True Power Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ 2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser lets you set how often & what time generator will self-test
- Tough, Durable All-Aluminum Sound Attenuated Enclosure
- RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
- Installation Flexibility*
- Can be installed within 18" of a building; *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Additional Features:
- Flexible fuel line and Direct-To-Dirt composite mounting pad
- Built-in Battery Charger (Battery Sold Separately)
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
11000 Watts
Surge Watts
11000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
11000 Watts
NG Fuel Consumption @ 50% Load
123 ft³/hr
NG Fuel Consumption @ 100% Load
199 ft³/hr
LP Fuel Consumption @ 50% Load
1.19 gallons/hr
LP Fuel Consumption @ 100% Load
2.01 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included
Enclosure
Aluminum
A/C Ton Rating
3-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
530 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
348 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25.1 Inches
Product Height
29 Inches
UPC
696471074130
