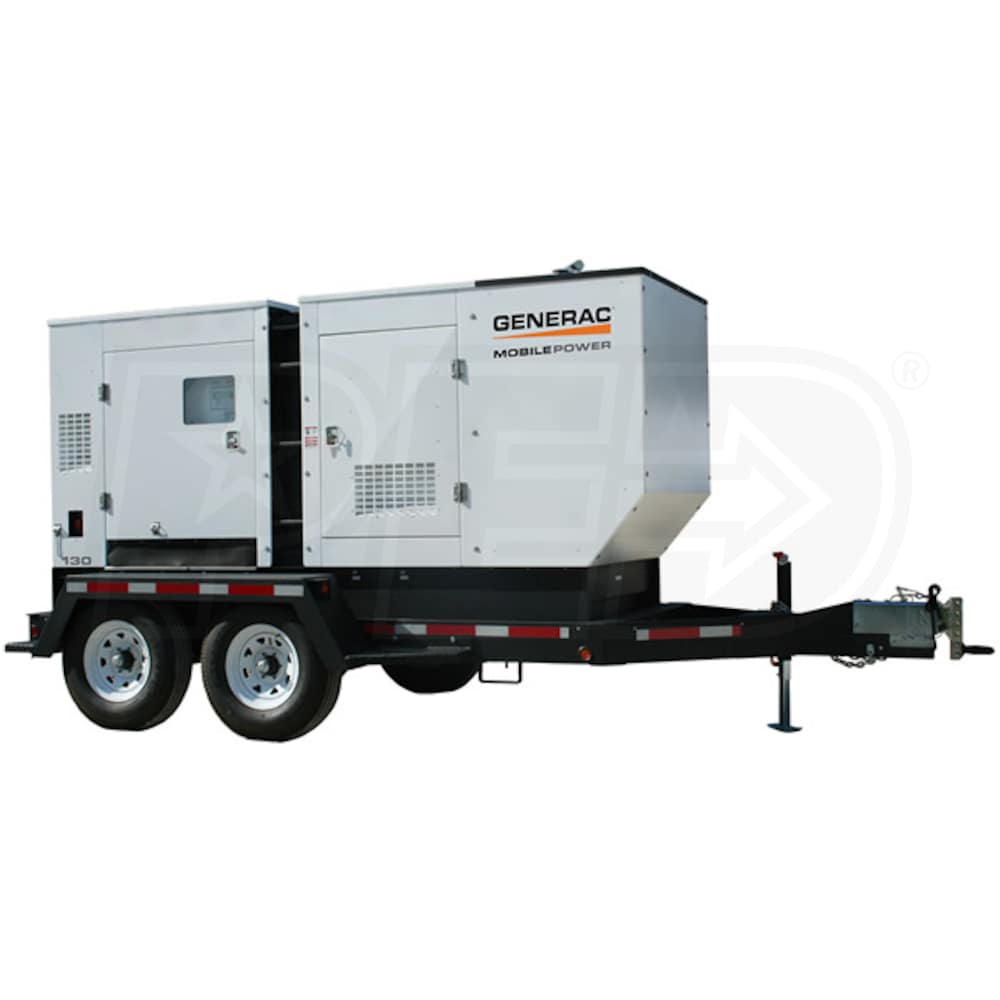

Generac MMG130 - 90kW Towable Diesel Generator w/ John Deere Engine

Model:

6790

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac MMG130 - 90kW Towable Diesel Generator w/ John Deere Engine
Generac MMG130 - 90kW Towable Diesel Generator w/ John Deere Engine
Model: 6790
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Tow-Behind

Run Watts

90,000 Rated Watts

Surge Watts

90,000
Starting Watts

Fuel

Diesel

Engine

John Deere

  • Industrial Towable Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • 4.5L Liquid-Cooled Turbocharged John Deere Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Large 342-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 44 hours of run time @ full load
  • Marathon Electric Brushless Alternator
  • Long life & low maintenance while providing +/- 1% voltage reg.
  • Voltage Selectable Switch For Main Voltage Selections
  • 120/240V Single Phase, 120/208V & 277/480V Three-Phase
  • Power Zone Generator Controller & Color Display
  • Push buttons for easy operation & Scrolling arrows for Diag. info
  • Warning, shutdown, electrical trip and engine alarms
  • Convenience Receptacles w/ Individual Breakers
  • Panel mounted rheostat for voltage adjustment (+/- 10%)
  • Aluminum Sound Attenuated Enclosure
  • Fully-lockable, insulated & baffled (68 dB(A) @ 23')
  • Central Lifting Point For Easy Movement Around The Job Site
  • DOT Approved Trailer w/ 3-Inch Lunette Ring Hitch
  • CUSTOMER MUST UNLOAD FROM FREIGHT CARRIER

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
6790
specs product image PID-14667
Overview
Weight
6840 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Towable Generator
Product Length
210 Inches
Product Width
86 Inches
Product Height
93 Inches
UPC
696471067903
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
90000 Watts
Surge Watts
90000 Watts
Fuel Type
Diesel
Tank Size
342 Gallons
Run Time @ 50% Load
92 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Button Start
CC
4500 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
3
