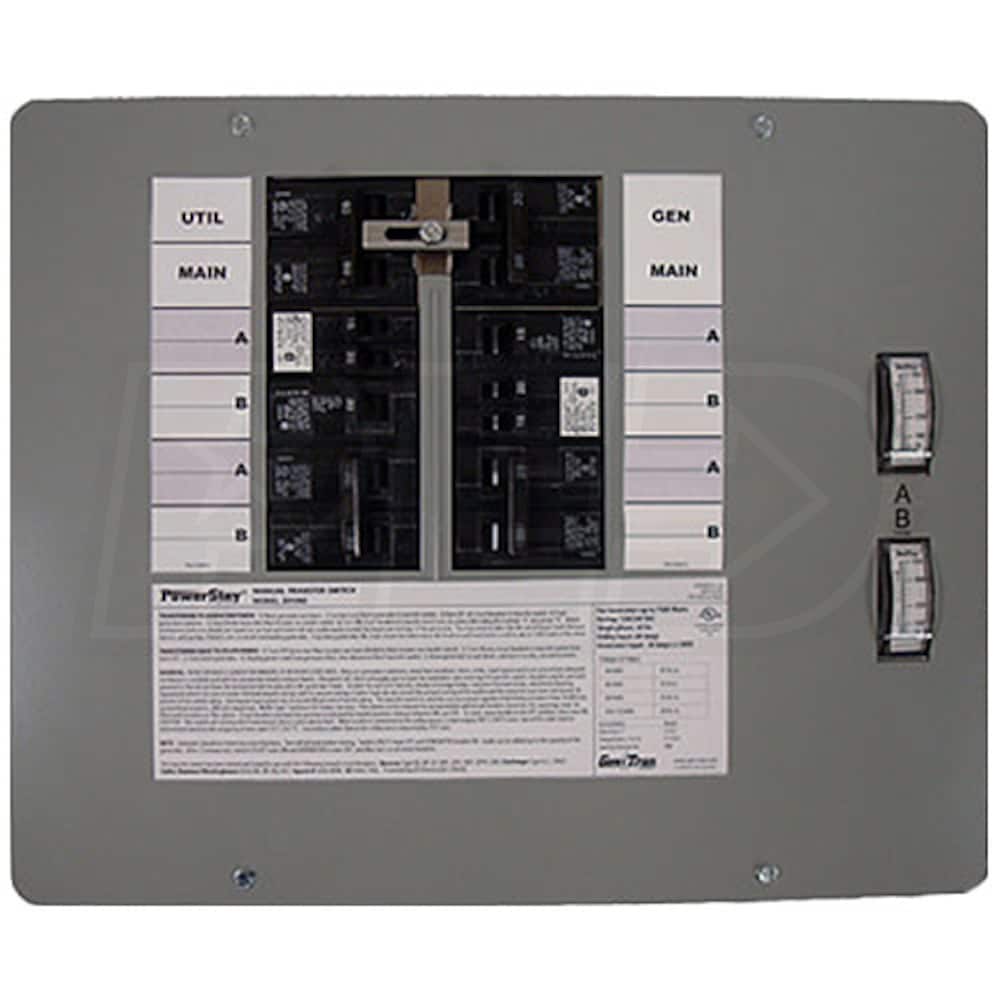

Generac 6378 - 30-Amp (120/240V 10-Circuit) Indoor Manual Transfer Switch

Generac 6378 - 30-Amp (120/240V 10-Circuit) Indoor Manual Transfer Switch
Model: 6378
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued

(as of 07:17 CST - Details) Sales Tax Extra $359.99Visit Site
Sales Tax Extra $454.55Visit Site
No Sales Tax* (Except CA,GA)$359.99Visit Site
Sales Tax Extra $359.99Visit Site
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 4
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
30
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 10 Total Circuits (Expandable to 16)
  • (3) 15-Amp 1-Pole
  • (3) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • (1) 30-Amp 2-Pole
  • Requires 2-Pole 60-Amp Breaker In Load Center (Sold Separately)
  • Max Amps 30 @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7200 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
7500 Amps
Maximum Wattage
7200 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Overview
Weight
24 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
UPC
696471063783
Type
Manual
Amp Rating
30
Circuits
16
Enclosure
NEMA 1R
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 10 Total Circuits (Expandable to 16)
  • (3) 15-Amp 1-Pole
  • (3) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • (1) 30-Amp 2-Pole
  • Requires 2-Pole 60-Amp Breaker In Load Center (Sold Separately)
  • Max Amps 30 @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7200 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
7500 Amps
Maximum Wattage
7200 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Overview
Weight
24 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
UPC
696471063783
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7200 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
7500 Amps
Maximum Wattage
7200 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Overview
Weight
24 Pounds
Product Length
11.5 Inches
Product Width
14.5 Inches
Product Height
3.5 Inches
Consumer Warranty
2 Years
UPC
696471063783
Reviews
(4)
+
Generac 6378 Reviews & Ratings
Product Q&A
(4)
+
Ref: 30216A As an electrical contractor we have use arc fault circuit breakers on certain loads. This creates a problem with the neutrals. Is there an alternate panel I could use? Thank, Keith
Keith Budka
from New York
January 01, 2014
Read Response +
Answer
The following switches accommodate GFCI and ARCH Fault circuit breakers to meet the latest NEC requirements.....

Model 6376

Model 6294

Model 6295

Model 6378

Model 6408

Model 6379
Hide Response -
What sub panel can I use with the Generac 6378 if I was going with the full 16 circuits..(2nd. sub panel)..? Does it matter which brand the main panel is? ( Crouse-Hinds 150amp) Thanks
John Ross
from New York
October 07, 2013
Read Response +
Answer
Thank you for your inquiry!

The Generac 10-circuit manual transfer switch, model 6378 can support a 30 amp, 240 volt sub-panel. Although, through the use of tandem breakers, you will be able to utilize as many as 16 circuits within this transfer switch. The make of your main panel will not have any effect on this device.

Hide Response -
Is this product pre-wired?
Joe
from Pennsylvania
September 30, 2013
Read Response +
Answer
Thank you for your inquiry!

While the Generac 6378, 30 amp 10-circuit manual transfer system will not come pre-wired, the material (wires & Flexible conduit) will be included in order for you to branch into your existing circuit panel. You will just need to provide the inlet box, power cord and generator to complete your emergency power system.
Hide Response -
Requires 2-Pole 60-Amp Breaker In Load Center (Sold Separately) Why do I need this? I have a 200 Amp Panel. House is mostly electric stove, washer/dryer, sump pump, oil burner heating system.
George Mazurkiewicz
from New Jersey
September 16, 2013
Read Response +
Answer
Thank you for your inquiry!

The 60 amp 2-pole breaker is used to carry power through your main circuit panel and allow it to energize this transfer switch. The Generac 6378 will consequentially operate as a sub-panel, eliminating the supported circuits from your main circuit panel. If you choose to provide safe and reliable back-up power, then you will want to do so in a reliable fashion.

By supporting the breakers within this transfer switch, you can be sure that you are only powering the circuits that count, without overloading your portable generator.

Hide Response -
