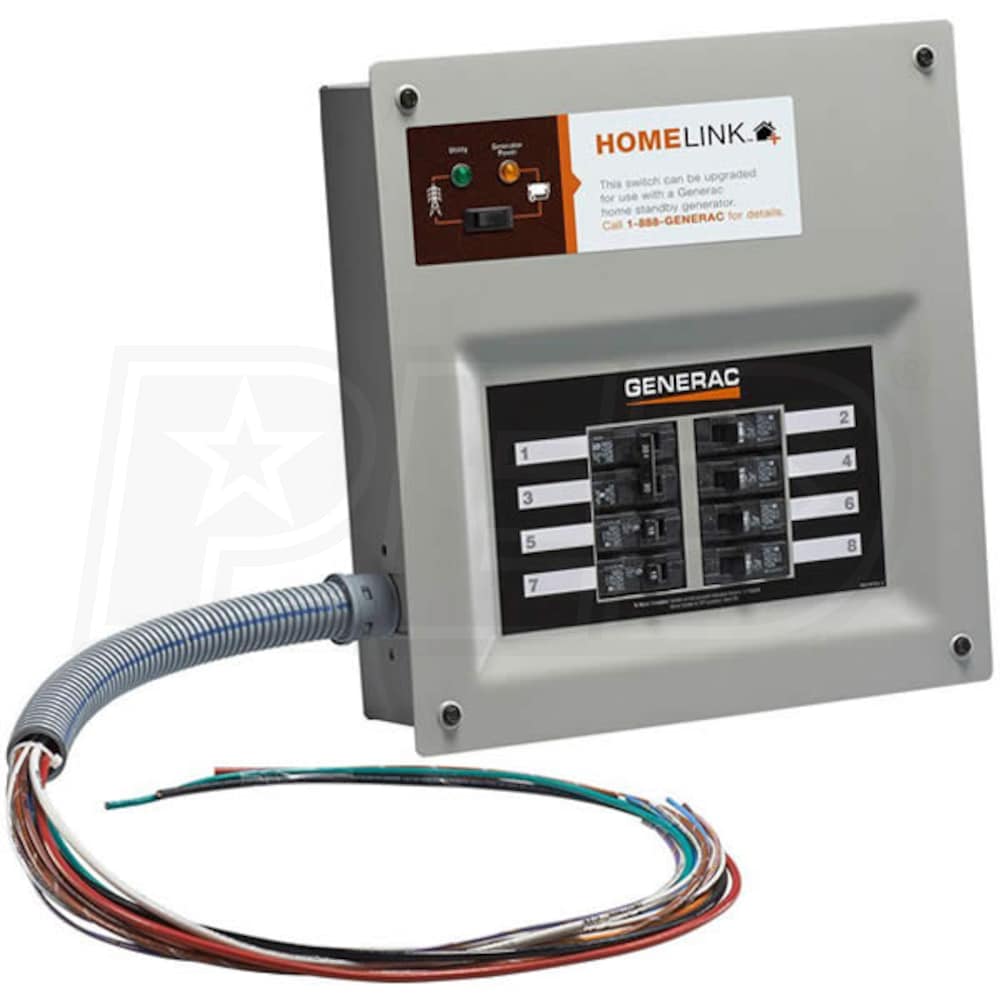

Generac 6852 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch

Model:

6852

Recommended
Write a Review
$339.99
Factory-Direct
Ships in 6-8 Weeks
synchrony card logo
$57 / Month
Suggested monthly payments with 6 month financing.
Generac 6852 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch
Generac 6852 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch
Model: 6852
$339.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Manual

Amp Rating

30

Circuits

8

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Generac 30A HomeLinkô Upgradeable Manual Transfer Switch
  • Meets your needs today & when you're ready to upgrade
  • Pre-Wired 30-Amp Manual Transfer Switch
  • Interchangeable breakers make it easy to reconfigure or expand
  • Safely Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • From Manual to Automatic - Essential Circuit Coverage
  • From a portable to a standby generator (11kW Max)
  • Ready When You Are (By Cert Electrician)
  • Field-upgradable to an automatic switch panel & new faceplate
  • Includes 8 Total Circuits (Expands up to 10)
  • (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, & (5) 15-Amp 1-Pole
  • Power Indicator Lights
  • Easily see if you're on utility or generator power
  • Versatile Design & Flexible & Cost Effective Installation
  • Can be used w/ GFCI and Non-GFCI portable generators
  • Uses 1" standard, tandem, GFCI & AFCI breakers
  • Requires Power Inlet Box & Cord For Connection (Sold Separately)
  • Allows you to plug your generator into an exterior wall outlet
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

6852
specs product image PID-17598
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471068528
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
