Generac 30-Amp Power Transfer Switch System (6-10 Circuits)

Generac 30-Amp Power Transfer Switch System (6-10 Circuits)
Model: 6294
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued
Sales Tax Extra $299.99Visit Site
Sales Tax Extra $353.36Visit Site
No Sales Tax* (Except CA,GA)$299.00Visit Site
Sales Tax Extra $301.74Visit Site
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 15
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • The Safest Way to Distribute Power To Your Home
  • Eliminates dangerous backfeeds and electrical overloads
  • Pre-Wired 30-Amp Manual Transfer Kit For 6-10 Circuits
  • Interchangeable breakers make it easy to reconfigure or expand
  • Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing

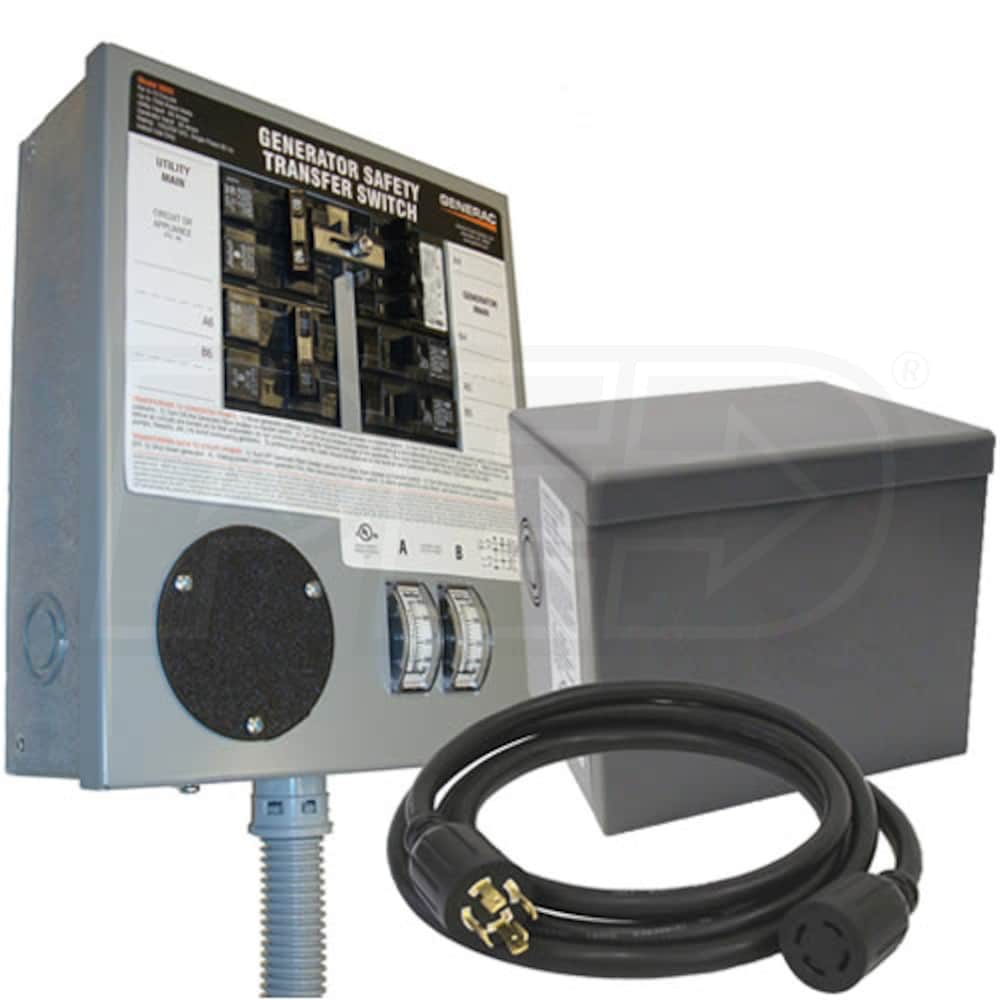

  • Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Non-Metallic Power Inlet Box (Must Be Hardwired)
  • 10' 30-Amp (L14-30) Power Cord
  • Wiring Harness & Connectors, Conduit and Fittings
  • Installation Manual
  • 6 Total Circuits (Expandable to 10)
  • (2) 15-Amp 1-Pole
  • (2) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • PLEASE NOTE - Requires 2-Pole 60-Amp Breaker in Main Load Center
  • 60-Amp Breaker Sold Separately
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Neutral Type
Floating
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
19 Pounds
Product Length
9.25 Inches
Product Width
11.125 Inches
Product Height
3.375 Inches
Consumer Warranty
1 Year
UPC
696471062946
Features
Features
  • The Safest Way to Distribute Power To Your Home
  • Eliminates dangerous backfeeds and electrical overloads
  • Pre-Wired 30-Amp Manual Transfer Kit For 6-10 Circuits
  • Interchangeable breakers make it easy to reconfigure or expand
  • Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Non-Metallic Power Inlet Box (Must Be Hardwired)
  • 10' 30-Amp (L14-30) Power Cord
  • Wiring Harness & Connectors, Conduit and Fittings
  • Installation Manual
  • 6 Total Circuits (Expandable to 10)
  • (2) 15-Amp 1-Pole
  • (2) 20-Amp 1-Pole
  • (1) 20-Amp 2-Pole
  • PLEASE NOTE - Requires 2-Pole 60-Amp Breaker in Main Load Center
  • 60-Amp Breaker Sold Separately
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Neutral Type
Floating
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
19 Pounds
Product Length
9.25 Inches
Product Width
11.125 Inches
Product Height
3.375 Inches
Consumer Warranty
1 Year
UPC
696471062946
Product Specs
+
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Neutral Type
Floating
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Weight
19 Pounds
Product Length
9.25 Inches
Product Width
11.125 Inches
Product Height
3.375 Inches
Consumer Warranty
1 Year
UPC
696471062946
Reviews
(15)
+
Generac 6294 Reviews & Ratings
75% of Reviewers Recommend This Product
Product Q&A
(2)
+
Ref: 30216A As an electrical contractor we have use arc fault circuit breakers on certain loads. This creates a problem with the neutrals. Is there an alternate panel I could use? Thank, Keith
Keith Budka
from New York
January 01, 2014
Read Response +
Answer
The following switches accommodate GFCI and ARCH Fault circuit breakers to meet the latest NEC requirements.....

Model 6376

Model 6294

Model 6295

Model 6378

Model 6408

Model 6379
Hide Response -
How long is wiring harness? Is this the harness that would go to outlet box to make connection?
Dave
from Ohio
May 09, 2012
Read Response +
Answer
The wiring harness is approximately 18 - 24 inches long and would be wired to the electrical panel. Your installing electrician would provide the wiring from the switch to the inlet box.
Hide Response -
