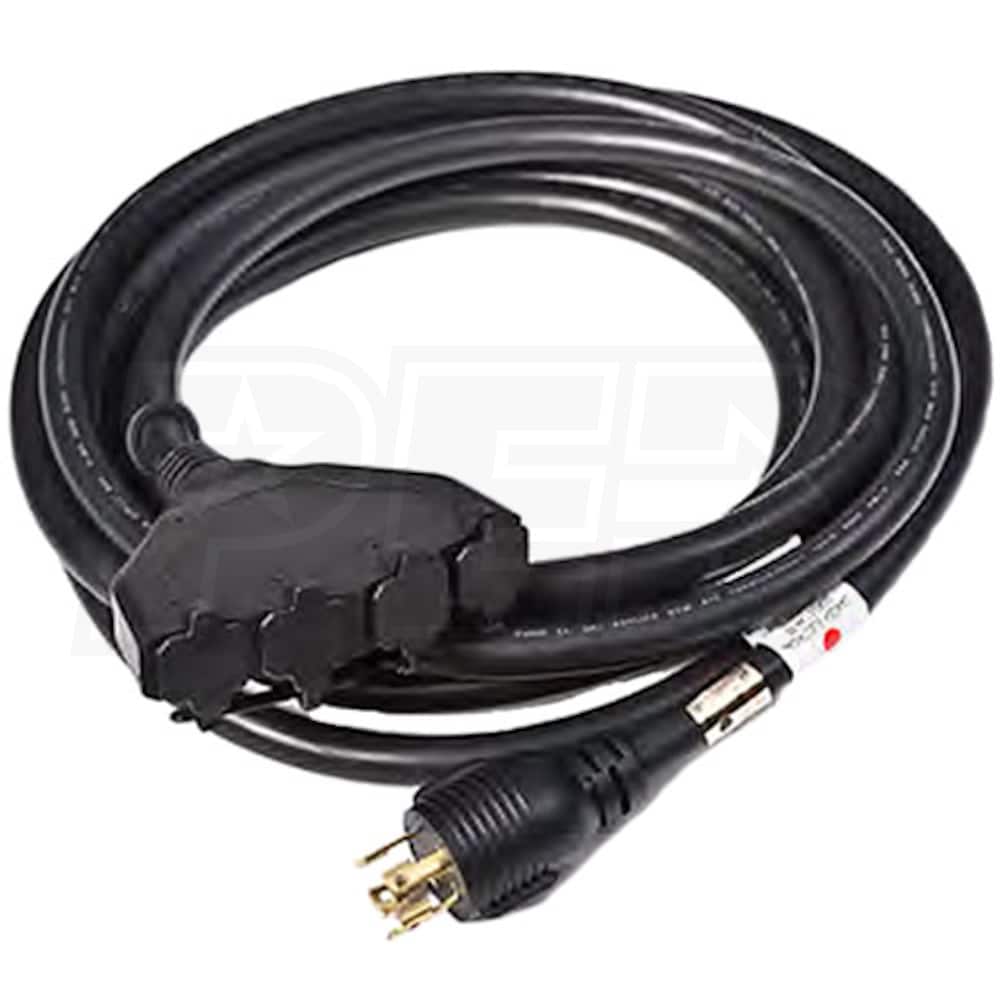

Generac 6112 - 30-Amp (4-Prong) 20-Foot Convenience Cord w/ 4-20 Amp Outlets
Model: 6112
+
Share This Product
-
Product Description
-
4Reviews
-
3Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Genearc 30-Amp (L14-30) Convenience Cord
- Split your power from 1 cord into 4 outlets
- 20-Foot 10-Gauge Cord
- Reduces appliance damage from voltage drop (rated up to 7500W)
- Heavy-Duty Construction
- Rubber covers on all 4 outlets to provide added protection
- Versatile Design
- Connects to portable generators with 30-amp (L14-30) outlets
- 2-Year Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
7 Pounds
Consumer Warranty
2 Years
UPC
696471061123
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Features
Features
- Genearc 30-Amp (L14-30) Convenience Cord
- Split your power from 1 cord into 4 outlets
- 20-Foot 10-Gauge Cord
- Reduces appliance damage from voltage drop (rated up to 7500W)
- Heavy-Duty Construction
- Rubber covers on all 4 outlets to provide added protection
- Versatile Design
- Connects to portable generators with 30-amp (L14-30) outlets
- 2-Year Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
7 Pounds
Consumer Warranty
2 Years
UPC
696471061123
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
Overview
Weight
7 Pounds
Consumer Warranty
2 Years
UPC
696471061123
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Hi Jim! I have the GP550 and 20' 30a (4 outlet) cable. I was told to balance the load and try to split the power per circuit. Since the unit HAS 4 120v outlets on the unit, how do I effectively split the load with the 4-in one twistlock cable. Technically, if I used all 4 - would that be split? Or, would I need to use a couple of the outlets ON the unit itself. I'm a little confused. Thanks in advance!
Rick Esterson
from Maryland
February 14, 2014
Answer
The 2 outlets on the left of the cords block are tied to one winding in the alternator, the 2 on the right connect to the other, each flow thru their own breaker (the twist-lock breaker is 2 pole). If you had, as an example, 2 sump pumps, plug each into different sides of the cord-set & it will help balance your loading.
Was this answer helpful?
Yes
0
No
0
+−
I have been researching "convenience cords" and noticed that this cord seems to have the red/blue "balance" that is like the Powermate 30-Amp Convenience Cord. Is this cord "balanced" like the Powermate 30-Amp Convenience Cord?
Cory
from Missouri
October 16, 2013
Answer
Thank you for your interest in Electric Generators Direct!
The Generac 6112, 30-amp convenience cord can be considered a balanced cord. This product features a 30-amp twist lock plug that will split the 240 volt current into 4-20 amp, 120 volt receptacles. Technically, there will be two outlets per 120 volt leg.
The Generac 6112, 30-amp convenience cord can be considered a balanced cord. This product features a 30-amp twist lock plug that will split the 240 volt current into 4-20 amp, 120 volt receptacles. Technically, there will be two outlets per 120 volt leg.
Was this answer helpful?
Yes
0
No
0
+−
Can I use this with my Generac GP 3250 generator?
Kurt Hanie
from New Jersey
January 12, 2013
Answer
Sorry, you cannot use model 6112 cord with your Generac GP3250 (5982) generator. Your generator has a 20A 4-Prong outlet so any power cord you want to use must be 20A 4-prong and have twist-lock cord end L14-20.
Was this answer helpful?
Yes
0
No
0
