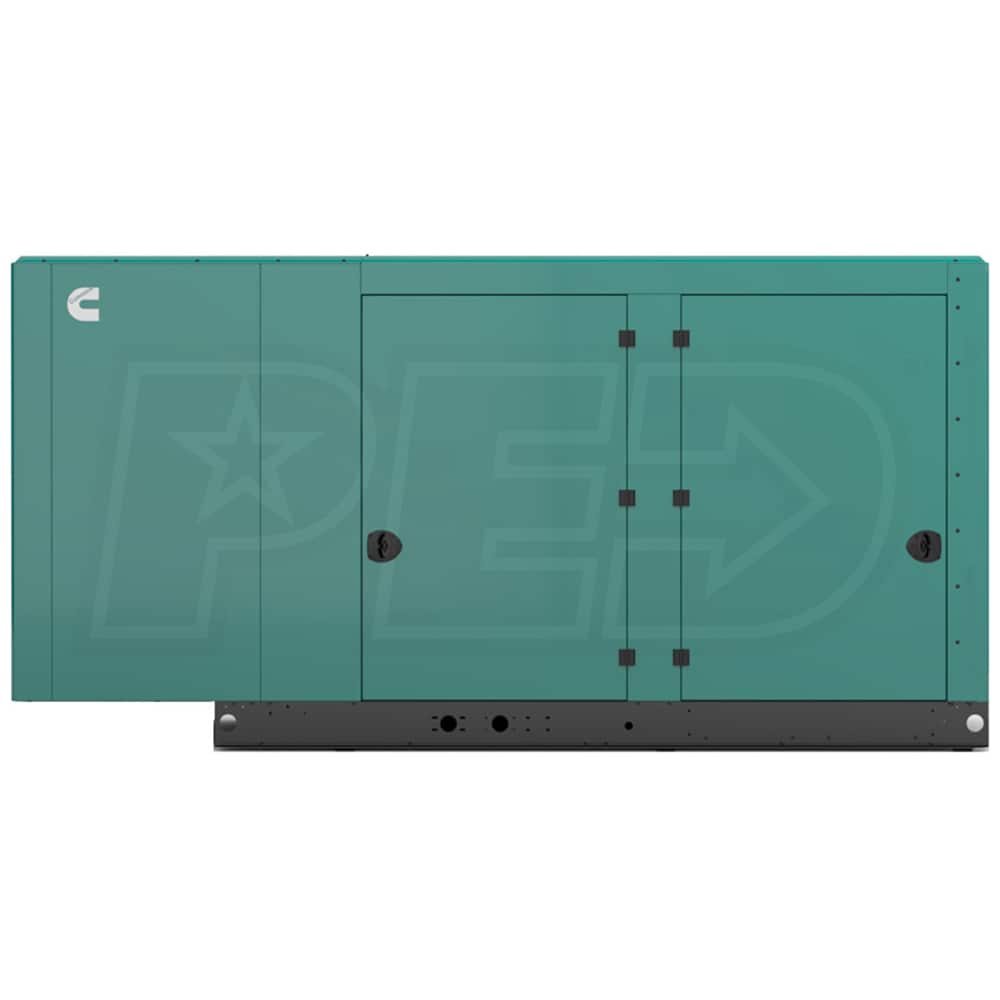

Cummins RS125 Quiet Connect™ Series 125kW Standby Power Generator (120/240V Single-Phase)

Model:

A063B604

Write A Review
$38,102.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$667 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins RS125 Quiet Connect™ Series 125kW Standby Power Generator (120/240V Single-Phase)
Cummins RS125 Quiet Connect™ Series 125kW Standby Power Generator (120/240V Single-Phase)
Model: A063B604
$38,102.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

125,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Cummins Onan

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Cummins Quiet Connect Series - RS125 Standby Power Generator
  • Ideal for residential and light commercial applications
  • Runs on Natural Gas (NG) or Liquid Propane (LP)
  • Cummins 8.9L Turbocharged & Aftercooled Liquid-Cooled Engine
  • 1800 RPM design provides reliability and fuel efficiency
  • Brushless CA Series Alternator
  • Provides +/- 1% voltage & +/- 0.25% frequency regulation
  • As close to utility power as you can get in a standby generator
  • Advanced Design Sound Attenuated Aluminum Enclosure
  • Powder-coat paint helps prevent corrosion
  • Aesthetically appealing withstands winds up to 180 MPH
  • Designed for easy service & maintenance w/ hinged access doors
  • PowerCommand® 2.3 Electronic Control
  • Provides industry-leading self-diagnostic capabilities
  • Easily see alarm status, messages, and output metering
  • Flexible Exercise Mode
  • Exercise at a time, frequency and duration that suits you
  • Reducing unnecessary fuel consumption, emissions and noise
  • Coolant Heater For Extreme Environmental Conditions (Included)
  • Factory installed, allows for cold weather starts down to -40 °F
  • Automatic Transfer Switch (Sold Separately)
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063B604
specs product image PID-81474
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
3915 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
143 Inches
Product Width
40 Inches
Product Height
72 Inches
Additional Model Numbers

A058T799, A063B604

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
125000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
125000 Watts
LP Power Capacity
12500 Watts
NG Fuel Consumption @ 50% Load
981.3 ft³/hr
NG Fuel Consumption @ 100% Load
1665.6 ft³/hr
LP Fuel Consumption @ 50% Load
10.87 gallons/hr
LP Fuel Consumption @ 100% Load
19.09 gallons/hr
Rated Amps
520.8 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
600 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
8900 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
