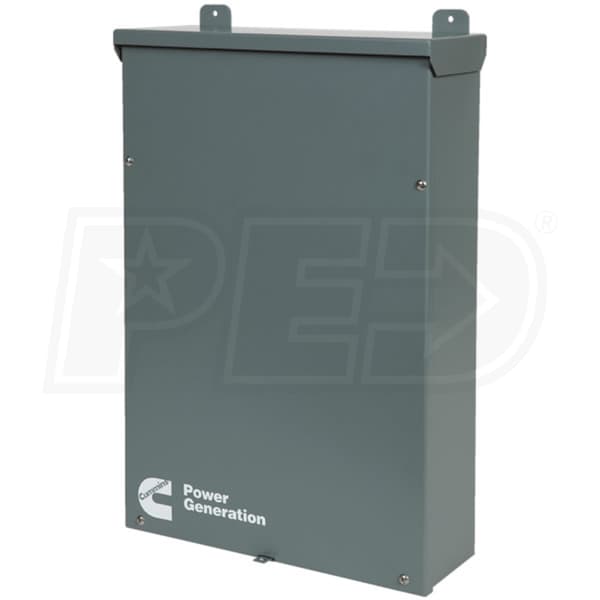

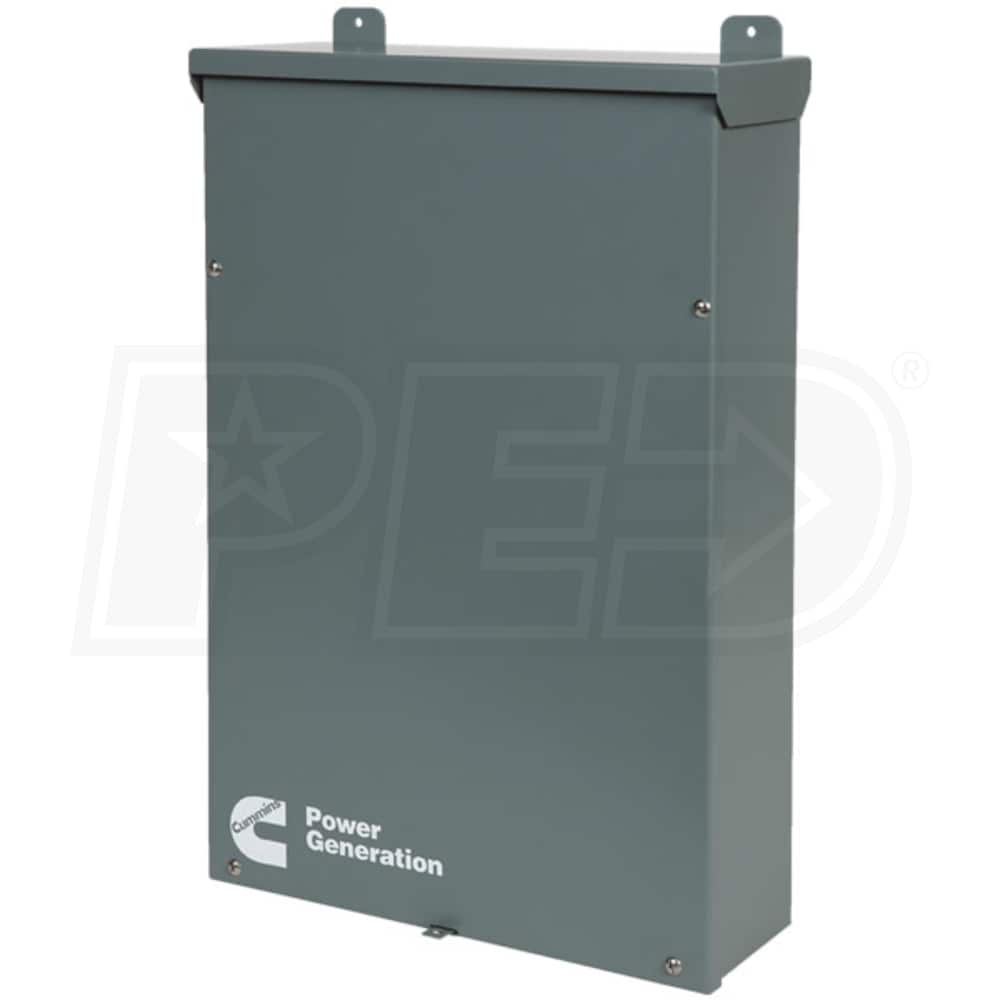

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators (Service Disconnect)

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators (Service Disconnect)
Our Price
Compare Prices
Shipping Info
Model: A045P697
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$699.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.

Learn More
Factory-Direct
This Item Is Built To Order
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Alaska, Hawaii, Indiana or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Required
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Required
Enclosure
NEMA 3R
Features
Features
  • RA Series 200-Amp Automatic Transfer Switch w/ Service Disconnect
  • Designed for Cummins RS & RX series generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • Versatile Design
  • For standby use in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utlity power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interloced Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 200-Amps @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
58 Pounds
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches
Consumer Warranty
1 Year
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Required
Enclosure
NEMA 3R
Type
Service Disconnect
Load Mgmt.
Not Required
Enclosure
NEMA 3R
Features
Features
  • RA Series 200-Amp Automatic Transfer Switch w/ Service Disconnect
  • Designed for Cummins RS & RX series generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • Versatile Design
  • For standby use in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utlity power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interloced Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 200-Amps @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
58 Pounds
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches
Consumer Warranty
1 Year
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
58 Pounds
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches
Consumer Warranty
1 Year
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(2)
+−
Cummins Power Generation A045P697 Reviews & Ratings
Product Q&A
(2)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
What transfer 200 amp goes with the rs25?
Deanna
from Florida
June 18, 2018
Answer
This switch, the switch listed, is the correct switch for this unit. I recommend checking with an electrician to make sure it meets your needs and will pass local code.
+−
I do not see where this transfer switch specifies load shedding. Will this be safe for sensitive electronics throughout my house?
Brian D.
from Florida
June 05, 2018
Answer
The Cummins unit has Intelligent Load Management. The generator can manage up to four loads and does so by learning how much power is required for each load. It then manages them for maximum utilization of generator power by only restoring loads the generator has power available to run. The standby units will provide clean power for sensitive electronics.
